SATO W00609231 Barcode Label Printer

The SATO W00609231 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
SATO CL608e - Sato CL608e Thermal Label Printer - 203 dpi - Serial
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Serial (RS-232)
Print Resolution
203 dpi
Max Print Width
7 inch
Ribbon Core Size
1 inch

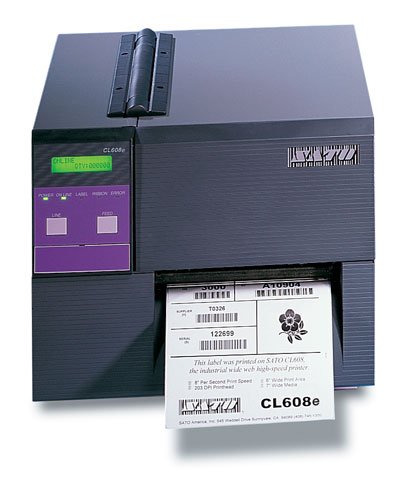

SATO CL608e Barcode Label Printer Model Overview
The CL608e printer deliver performance at an affordable price! The CL608e is an advanced performance, high value printer that is truly a SATO through and through. The CL608e features a 32-bit, high speed RISC processor for maximum performance. It also includes the exclusive SATO printhead control feature, which constantly monitors printhead conditions and automatically adjust print energy for optimum and consistent print quality. The CL608e prints labels up to 6.0" wide at 203 dpi all at speeds of up 8 inches per second.
SATO W00609231 Barcode Label Printer Overview

For advanced technology and high-speed performance, the CL608e printer had no match in the industry. Built in the tradition of SATO's rugged dependability, delivering high-quality images at high speeds.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution:
203 dpi
Maximum Print Width:
6"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • ITF-14
  • UCC/EAN 128
  • Code 128
  • Interleaved 2 of 5
  • Code 39
  • RSS
  • POSTNET
  • EAN-13
  • EAN-8
  • Code 93
  • MSI
  • Codabar
  • Bookland
  • Matrix 25
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
Features:
Dispenser
Memory
Standard Memory:
16 MB
Flash Memory:
2 MB
Interfaces/Ports
Serial Port:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Synthetic Media
  • Tag Stock
  • Black Mark
  • Notched
  • Direct Thermal Label
  • Thermal Transfer Label
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
8.60"
Maximum Label Width:
7"
Maximum Label Length:
0.78"
Label Core Size:
3"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
11.7"
Width:
13.8"
Depth:
16.9"
Miscellaneous
Additional Information:
  • Graphic Support: Printing and storage of *.PCX, *.BMP format, SATO Hex/binary
  • Sensing:
  • Adjustable transmissive sensor for gap
  • Reflective sensor for black mark
  • Ribbon-out sensor
Platform Supported:
PC
Certifications & Standards:
  • FCC Class A
  • UL
  • CSA
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The SATO W00609231 Barcode Label Printer is also known as SAT-W00609231 or W00609231.
