SATO W00609211 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

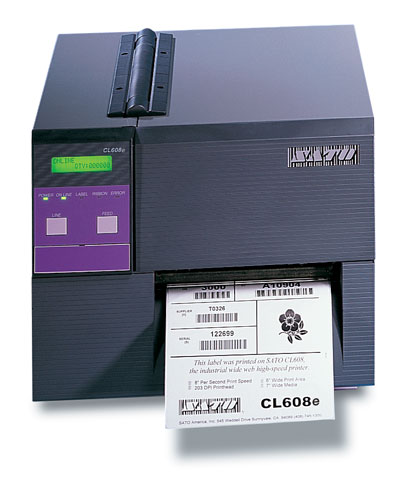

SATO CL608e - Thermal transfer, 203 dpi, 8 ips, 6" print width, parallel interface, 16MB RAM, 2MB Flash. Includes dispenser & US power cord. Order cables separately. See accessories.
The perfect way to print labels for a wide variety of applications.

The CL608e printer deliver performance at an affordable price! The CL608e is an advanced performance, high value printer that is truly a SATO through and through. The CL608e features a 32-bit, high speed RISC processor for maximum performance. It also includes the exclusive SATO printhead control feature, which constantly monitors printhead conditions and automatically adjust print energy for optimum and consistent print quality. The CL608e prints labels up to 6.0" wide at 203 dpi all at speeds of up 8 ips.

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6"
  • Recommended Use: Label Print
  • Features: Dispenser
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • ITF-14
    • UCC/EAN 128
    • Code 128
    • Interleaved 2 of 5
    • Code 39
    • RSS
    • POSTNET
    • EAN-13
    • EAN-8
    • Code 93
    • MSI
    • Codabar
    • Bookland
    • Matrix 25
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: e Series
  • Brand Name: Sato
  • Manufacturer: Sato Corporation
  • Product Model: CL608e
  • Product Name: CL608e Thermal Label Printer

Physical Characteristics

  • Height: 11.7"
  • Width: 13.8"
  • Depth: 16.9"

Interfaces/Ports

  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 7"
  • Maximum Label Length: 0.78"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Form
    • Synthetic Media
    • Tag Stock
    • Black Mark
    • Notched
    • Direct Thermal Label
    • Thermal Transfer Label
  • Media Size: 7" x Roll Paper
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8.60"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • FCC Class A
    • UL
    • CSA
  • Additional Information:
    • Graphic Support: Printing and storage of *.PCX, *.BMP format, SATO Hex/binary
    • Sensing:
    • Adjustable transmissive sensor for gap
    • Reflective sensor for black mark
    • Ribbon-out sensor

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 2 MB

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand SATO
Model CL608e
Print Method Thermal Transfer
Print Speed 8
Print Resolution 203 dpi
Max Roll Outer Diameter 8.6
Label Core 3 inches
Maximum Print Width 6.00
Printer Type Industrial
Max Label Width 7.00
Interface Options Parallel
Printer Mobility Not Mobile
Ribbon Core 1
