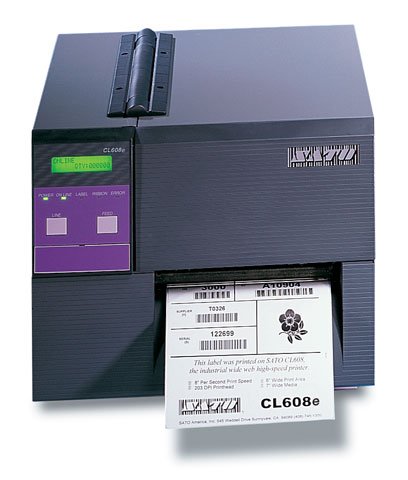

SATO W00609011 Barcode Printer
SATO CL608e -
Thermal transfer, 203 dpi, 8 ips, 6" print width, parallel interface, 16MB RAM, 2MB Flash. Includes US power cord. Order cables separately. See accessories.
Share:
The perfect way to print labels for a wide variety of applications.
The CL608e printer deliver performance at an affordable price! The CL608e is an advanced performance, high value printer that is truly a SATO through and through. The CL608e features a 32-bit, high speed RISC processor for maximum performance. It also includes the exclusive SATO printhead control feature, which constantly monitors printhead conditions and automatically adjust print energy for optimum and consistent print quality. The CL608e prints labels up to 6.0" wide at 203 dpi all at speeds of up 8 ips.
Technical Information
- Maximum Mono Print Speed: 8 in/s
- Maximum Print Resolution: 203 dpi
- Maximum Print Width: 6"
- Recommended Use: Label Print
- Barcode Symbology Supported:
- UPC-A
- UPC-E
- ITF-14
- UCC/EAN 128
- Code 128
- Interleaved 2 of 5
- Code 39
- RSS
- POSTNET
- EAN-13
- EAN-8
- Code 93
- MSI
- Codabar
- Bookland
- Matrix 25
- Data Matrix
- Maxi Code
- PDF-417
- QR Code
- Micro PDF-417
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Product Series: e Series
- Brand Name: Sato
- Manufacturer: Sato Corporation
- Product Model: CL608e
- Product Name: CL608e Thermal Label Printer
Physical Characteristics
- Height: 11.7"
- Width: 13.8"
- Depth: 16.9"
Interfaces/Ports
- Parallel Port: Yes
Media Types & Handling
- Media Type:
- Roll Fed
- Fanfold
- Die-cut Label
- Continuous Form
- Synthetic Media
- Tag Stock
- Black Mark
- Notched
- Direct Thermal Label
- Thermal Transfer Label
- Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
- Maximum Roll Diameter: 8.60"
Other
- Platform Supported: PC
- Certifications & Standards:
- CE
- UL
- CSA
- TUV
- Additional Information:
- Graphic Support: Printing and storage of *.PCX, *.BMP format, SATO Hex/binary
- Sensing:
- Adjustable transmissive sensor for gap
- Reflective sensor for black mark
- Ribbon-out sensor
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Memory
- Standard Memory: 16 MB
- Flash Memory: 2 MB
Warranty
- Limited Warranty: 1 Year
Full specifications (PDF)| Brand | SATO |
| Model | CL608e |
| Print Method | Thermal Transfer |
| Print Speed | 8 |
| Max Roll Outer Diameter | 8.6 |
| Label Core | 3 inches |
| Printer Type | Industrial |
| Max Label Width | 7.00 |
| Print Resolution | 203 dpi |
| Maximum Print Width | 6.00 |
| Interface Options | Parallel |
| Printer Mobility | Not Mobile |
| Ribbon Core | 1 |
