SATO CL412e – Barcode Label Printer – 305 dpi – Thermal Transfer

Part Number: W00413041
Model: CL412e

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet
Print Resolution
305 dpi

Product Description:

  Thermal transfer & direct thermal, 305 dpi, 6 ips, 4.1" print width, ethernet interface, 16MB RAM, 2MB Flash. Includes WPC Plus printer control server & US power cord.

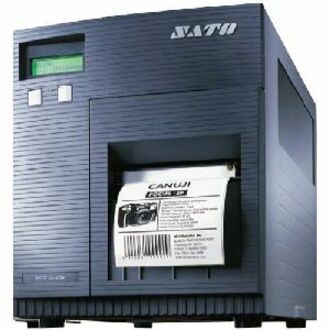

SATO CL412e Barcode Label Printer Model Overview

The CL412e printer deliver performance at an affordable price! The CL412e is an advanced performance, high value printer that is truly a SATO through and through. The CL412e features a 32-bit, high speed RISC processor for maximum performance. It also includes the exclusive SATO printhead control feature, which constantly monitors printhead conditions and automatically adjust print energy for optimum and consistent print quality. The CL412e prints labels up to 4.1" wide at 305 dpi all at speeds of up 6 inches per second.
SATO W00413041 Barcode Label Printer Overview

For advanced technology and high-speed performance, the CL412e printer has no match in the industry. Built in the tradition of SATO's rugged dependability, delivering high-quality images at high speed.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
305
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • ITF-14
  • UCC/EAN 128
  • Code 128
  • Interleaved 2 of 5
  • Code 39
  • RSS
  • POSTNET
  • EAN-13
  • EAN-8
  • Code 93
  • MSI
  • Codabar
  • Bookland
  • Matrix 25
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
Features:
Dispenser
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
18 MB
Flash Memory:
2 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Synthetic Media
  • Tag Stock
  • Direct Thermal Label
  • Thermal Transfer Label
  • Black Mark
  • Notched
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8.60"
Maximum Label Width:
5.10"
Maximum Label Length:
0.24"
Label Core Size:
3"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
12.6"
Width:
10.7"
Depth:
16.9"
Miscellaneous
Additional Information:
  • WPC Plus printer control server
  • Graphic Support: Printing and storage of *.PCX, *.BMP format, SATO Hex/binary

Sensing:

  • Ribbon-out sensor
  • Reflective sensor for black mark
  • Automatic, programmable top of form
  • Adjustable transmissive sensor for gap
Platform Supported:
PC
Certifications & Standards:
  • UL
  • CSA
  • FCC Class A
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0807027541260
UPC: 807027541260
EAN: 0807027541260
UNSPSC: 43212108
