SATO CL412e – Barcode Label Printer – 305 dpi – Thermal Transfer

Part Number: W00413011

Model: CL412e

Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Parallel

Print Resolution

305 dpi

Product Description:

Sato CL412e Thermal Label Printer - 305 dpi - Parallel

Explore all SATO CL412e Barcode Label Printers

Add to Quote

Overview

Full specifications (PDF)

SATO CL412e Barcode Label Printer Model Overview

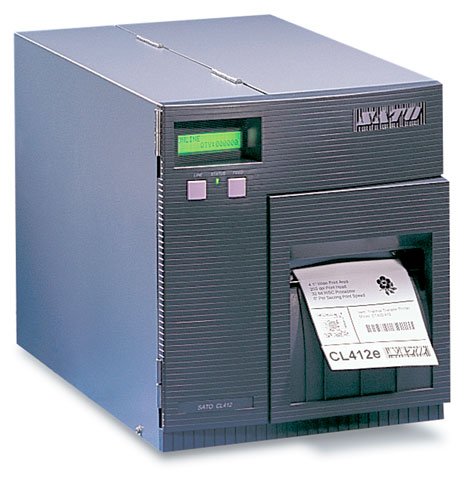

The CL412e printer deliver performance at an affordable price! The CL412e is an advanced performance, high value printer that is truly a SATO through and through. The CL412e features a 32-bit, high speed RISC processor for maximum performance. It also includes the exclusive SATO printhead control feature, which constantly monitors printhead conditions and automatically adjust print energy for optimum and consistent print quality. The CL412e prints labels up to 4.1" wide at 305 dpi all at speeds of up 6 inches per second.

SATO W00413011 Barcode Label Printer Overview

For advanced technology and high-speed performance, the CL412e printer has no match in the industry. Built in the tradition of SATO's rugged dependability, the CL412e printer is based on RISC processors, delivering high-quality images at high speeds.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Maximum Mono Print Speed:

6 in/s

Maximum Print Resolution:

305 dpi

Maximum Print Width:

4.10"

Barcode Symbology Supported:

UPC-A
UPC-E
ITF-14
UCC/EAN 128
Code 128
Interleaved 2 of 5
Code 39
RSS
POSTNET
EAN-13
EAN-8
Code 93
MSI
Codabar
Bookland
Matrix 25
Data Matrix
Maxi Code
PDF-417
QR Code
Micro PDF-417

Memory

Standard Memory:

16 MB

Flash Memory:

2 MB

Interfaces/Ports

Parallel Port:

Yes

Media Types & Handling

Media Type:

Roll Fed
Fanfold
Die-cut Label
Continuous Form
Direct Thermal Label
Synthetic Media
Tag Stock
Thermal Transfer Label
Notched

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Maximum Roll Diameter:

8.60"

Maximum Label Width:

5.10"

Maximum Label Length:

32.80"

Label Core Size:

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

12.6"

Width:

10.7"

Miscellaneous

Additional Information:

Graphic Support: Printing and storage of *.PCX, *.BMP format, SATO Hex/binary

Sensing:

Adjustable transmissive sensor for gap
Reflective sensor for black mark
Automatic, programmable top of form
Ribbon-out sensor

Platform Supported:

Certifications & Standards:

UL
CSA
FCC Class A

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0092636947965

UPC: 092636947965

EAN: 0092636947965

UNSPSC: 43212108
