SATO W00409111 Barcode Label Printer

SATO WWCLP1101-NAN Barcode Label Printer A newer version of this item is available.
It is replaced by the SATO WWCLP1101-NAN Barcode Label Printer.
SATO CL408e - Sato M5900RVe Thermal Label Printer - 203 dpi - Parallel
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel
Print Resolution
203 dpi
Printer Options
Cutter
Max Print Width
5 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Save time and money for your business by using one printer for all your employees
Read More

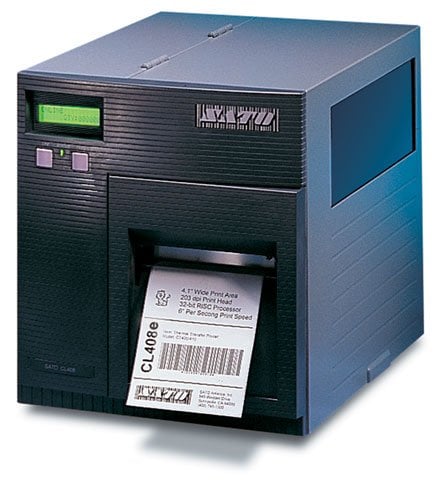

SATO CL408e Barcode Label Printer Model Overview
The CL408e printer delivers performance at an affordable price! The CL408e is an advanced performance, high value printer that is truly a SATO through and through. The CL408e features a 32-bit, high speed RISC processor for maximum performance. It also includes the exclusive SATO printhead control feature, which constantly monitors printhead conditions and automatically adjust print energy for optimum and consistent print quality. The CL408e prints labels up to 4.1" wide at 203 dpi all at speeds of up 6 inches per second.
SATO W00409111 Barcode Label Printer Overview

The M5900RVe is a rugged industrial printer with the "e" Series high performance. It is designed specifically for demanding direct thermal applications. The M5900RVe printhead life expectancy in direct thermal applications exceeds 4 million inches. The M5900RVe uses the latest RISC processor technology to significantly improve throughput and imaging response time.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution:
203 dpi
Maximum Print Width:
4.40"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • ITF-14
  • UCC/EAN 128
  • Code 128
  • Interleaved 2 of 5
  • Code 39
  • RSS
  • POSTNET
  • EAN-13
  • EAN-8
  • Code 93
  • MSI
  • Codabar
  • Bookland
  • Matrix 25
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
Memory
Standard Memory:
18 MB
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Synthetic Media
  • Tag Stock
  • Direct Thermal Label
  • Thermal Transfer Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
6"
Maximum Label Width:
5.15"
Maximum Label Length:
49.20"
Label Core Size:
3"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
11.2"
Width:
10.3"
Depth:
12.7"
Miscellaneous
Additional Information:
  • Graphic Support: Printing and storage of *.PCX, *.BMP format, SATO Hex/binary

Sensing:

  • Adjustable transmissive sensor for gap
  • Reflective sensor for black mark
  • Automatic, programmable top of form
  • Ribbon-out sensor
Platform Supported:
PC
Certifications & Standards:
  • CE
  • UL
  • CSA
  • CCC
  • TUV
  • FCC Class B
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The SATO W00409111 Barcode Label Printer is also known as SAT-CL408EPP or W00409111.
