SATO W00409021 Barcode Label Printer

SATO WWCL00061 Barcode Label Printer A newer version of this item is available.
It is replaced by the SATO WWCL00061 Barcode Label Printer.
SATO CL408e - Direct Thermal/Thermal Transfer printing, 203 dpi, 4" print width, USB interface, 16MB RAM, 2MB Flash. Includes US power cord. Cables sold separately.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
USB
Print Resolution
203 dpi
Max Print Width
5 inch
Ribbon Core Size
1 inch

Need a different version? See all SATO CL408e Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
SATO W00409021 Barcode Label Printer
SATO W00409021 Barcode Label Printer SATO W00409021 Barcode Label Printer SATO W00409021 Barcode Label Printer
SATO W00409021 Barcode Label Printer
SATO W00409021 Barcode Label Printer
SATO W00409021 Barcode Label Printer
Full specifications (PDF)

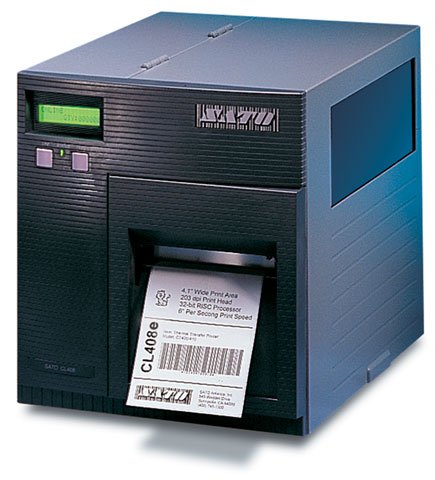

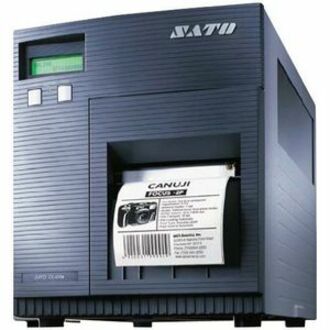

SATO CL408e Barcode Label Printer Model Overview
The CL408e printer delivers performance at an affordable price! The CL408e is an advanced performance, high value printer that is truly a SATO through and through. The CL408e features a 32-bit, high speed RISC processor for maximum performance. It also includes the exclusive SATO printhead control feature, which constantly monitors printhead conditions and automatically adjust print energy for optimum and consistent print quality. The CL408e prints labels up to 4.1" wide at 203 dpi all at speeds of up 6 inches per second.
SATO W00409021 Barcode Label Printer Overview

The new CL408e printer brings the latest in technology to the world of Thermal Label Printing. The CL408e printer offer's high speed data transmission, unparalleled processing speed and large amounts of on-board memory to quickly and easily manage any label printing requirement. The CL408e printer set's new benchmarks in label throughput. A new generation RISC processor provides high performance in label production even when printing directly from standard Windows.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution:
203 dpi
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • ITF-14
  • UCC/EAN 128
  • Code 128
  • Interleaved 2 of 5
  • Code 39
  • RSS
  • POSTNET
  • EAN-13
  • EAN-8
  • Code 93
  • MSI
  • Codabar
  • Bookland
  • Matrix 25
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
Memory
Standard Memory:
16 MB
Flash Memory:
2 MB
Interfaces/Ports
USB:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Synthetic Media
  • Tag Stock
  • Direct Thermal Label
  • Thermal Transfer Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8.60"
Maximum Label Width:
5.10"
Maximum Label Length:
49.20"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
12.6"
Width:
10.7"
Depth:
16.9"
Miscellaneous
Additional Information:
  • Graphic Support: Printing and storage of *.PCX, *.BMP format, SATO Hex/binary

Sensing:

  • Adjustable transmissive sensor for gap
  • Reflective sensor for black mark
  • Automatic, programmable top of form
  • Ribbon-out sensor
Platform Supported:
PC
Certifications & Standards:
  • CE
  • UL
  • CSA
  • TÜV
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0047614114723, 0807027572578
UPC: 047614114723, 807027572578
EAN: 0047614114723, 0807027572578
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The SATO W00409021 Barcode Label Printer is also known as SAT-CL408EU or W00409021.
