System Components:
Digital Video Recorder
Samsung SRD-870DC Surveillance DVR
Part Number:
SRD-870DC
Model:
SRD-870DC

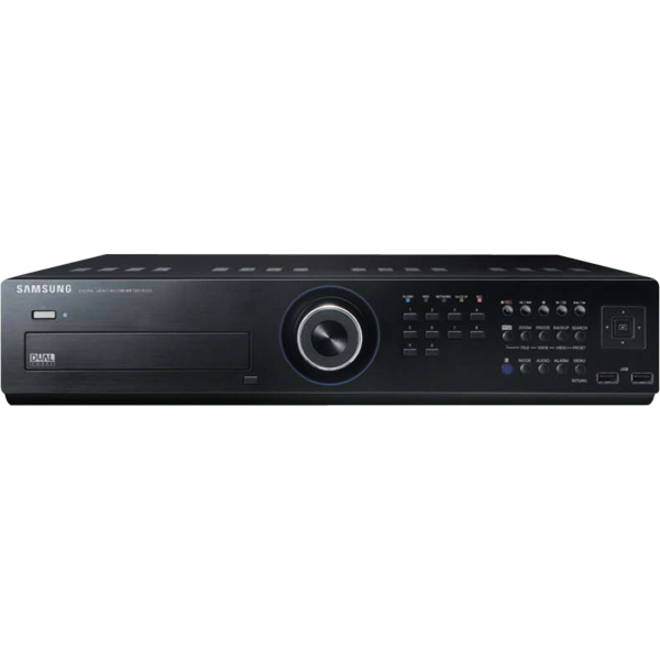

Samsung SRD-870DC Surveillance DVR Model Overview
The SAMSUNG 16CH/8CH H.264 Digital Video Recorder (Models SRD-1670DC/870DC) is a robust and reliable solution for high-definition video monitoring. Featuring advanced H.264 compression technology, this DVR supports real-time recording at up to 480fps (NTSC) and 400fps (PAL) for 16 channels, ensuring crystal clear visuals. The user-friendly interface and HDMI output provide seamless interaction and high-quality display. With options for up to 6TB of storage and comprehensive playback functionalities, it's designed to keep your premises secure while offering ease of access and control.
Key features:
- Real-time Recording: Up to 480fps (NTSC) for 16 channels.
- H.264 Compression: Efficient video storage and quality.
- Web Viewer: Built-in for easy remote access.
- PTZ Control: Convenient via coaxial cable.
- Multi-Screen Display: Supports various viewing modes.
- 5 Internal Drives: Expands storage capabilities.
Specifications:
- Video Input: 16/8 Composite video, 0.5-1 Vp-p, 75 ohm
- Resolution: NTSC - 704 x 480 / PAL - 704 x 576
- Audio Inputs: 16ch/8ch audio inputs
- Operating System: Embedded Linux
- Recording Modes: Manual, Schedule, Event, Time lapse
- Max Remote Users: 1 Admin, 10 Group, 20 Users
- Power Supply: 100-240V AC ±10%, 50/60Hz
- Dimensions: 440 x 88 x 426.8 mm
- Weight: Approx. 7.5 kg (16.53 lb)

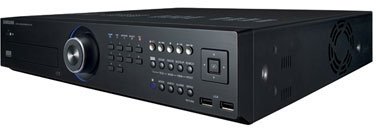

Samsung SRD-870DC Surveillance DVR Overview
The SRD DVR (Digital Video Recorder) employs H.264 video encoding for 8 or 16 channel inputs and G.723 audio encoding for 4 or 16 channels while simultaneously supports hard disc recording and playback.
These DVRs also supports network connectivity, providing remote monitoring from a remote PC transferring video and audio data.
Technical Information
Video
Video Formats:
H.264
Video Signal Format:
- NTSC
- PAL
Maximum Resolution:
704 x 576
Maximum Frame Rate:
240 fps
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
USB:
Yes
USB Standard:
USB 2.0
Network (RJ-45):
Yes
Alarm Connector:
Yes
Total Number of Audio Out Ports:
1
Serial:
Yes
Number of VGA Out:
1
HDMI:
Yes
Power Description
Input Voltage:
- 220 V AC
- 240 V AC
Physical Characteristics
Height:
3.5"
Width:
17.3"
Depth:
16.9"
Weight (Approximate):
16.53 lb
Miscellaneous
Package Contents:
- SRD-870DC 8-Channel Digital Video Recorder
- Remote Control
- Mouse
- Power Cable
- CD-ROM (Network Viewer Software, User Manual)
- User Manual
- Remote Control Battery (AAA)
- SATA Cable
- Audio Extension Cable (Optional)
- HDD Fixing Screw
- Bracket Fixing Screw(4EA)
- Bracket Rack
Additional Information:
- Built-in web viewer
- Built-in DVD-RW
- Maximum 5 internal HDD (HDD x 5)
- PTZ control via Coaxial cable
- Event notifications by E-mail
- SAMSUNG SmartViewer and NET-I viewer compatible
- Audio Recording: ADPCM
- Protocol Support: TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
- Password Protection: 1 Admin, 10 Group , 20 User per 1 Group, User can be assigned authority for function
Environmentally Friendly:
Yes
Environmental Certification:
WEEE
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
46171621
