Samsung SRD-1640-500 Security Camera

Part Number: SRD-1640-500
Model: SCD-2080
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Channels
16
Recording Modes
ManualTime ScheduleContinuousPre-eventPost-eventPre-alarmPost-alarm
Backup Modes
USB
Hard Drive Capacity
500 GB

Product Description:

  16CH VALUE LINE DVR 500GB 120FPS@4CIF/480FPS@CIF 4CH AUD
Explore all Samsung SCD-2080 Accessories
Add to Quote
Samsung SRD-1640-500 Security Camera
Samsung SRD-1640-500 Security Camera
Samsung SRD-1640-500 Security Camera Samsung SRD-1640-500 Security Camera
Full specifications (PDF)

Samsung SCD-2080 Accessory Model Overview

The SCD-2080 is a high performance dome camera. Equipped with our latest W-V DSP chipset, it delivers good results even in dark environments with light levels down to 0.15 Lux. In addition, the SCD-2080's 3.6x varifocal lens (2.8 ~ 10mm) provides maximum flexibility for installation. It comes with built-in remote coaxial control compatibility, VPS (Virtual Progressive Scan) and True Day / Night with ICR.
Samsung SRD-1640-500 Security Camera Overview

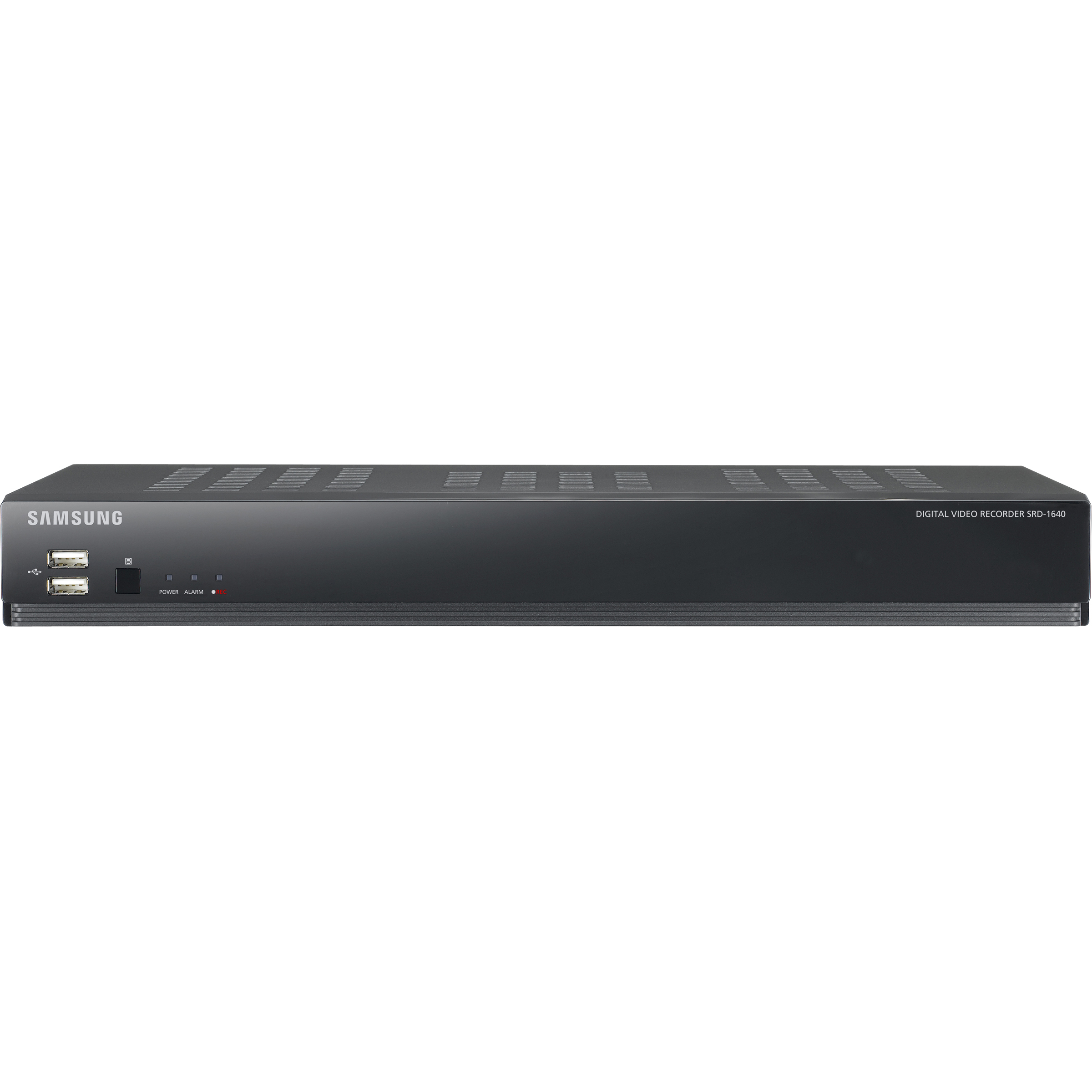

The SRD-1640 16CH is a standalone DVR that features high recording quality CIF video in real time across all channels. Each channel can be configured to record quality and privacy masking separately. In addition, the SRD-1640 provides versatile options for web access and remote monitoring using a PC or smartphone, making anytime, anywhere monitoring possible.
Full specifications (PDF)
Technical Information
Number of Channels:
16
Recording Modes:
  • Manual
  • Time Schedule
  • Continuous
  • Pre-event
  • Post-event
  • Pre-alarm
  • Post-alarm
Backup Modes:
USB
Storage
Hard Drive Capacity:
500 GB
Video
Maximum Frame Rate:
480 fps
Maximum Video Resolution:
1024 x 768
Video Signal Format:
  • NTSC
  • PAL
Video Formats:
  • H.264
  • CIF
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Interfaces/Ports
HDMI:
No
VGA:
Yes
Number of VGA Outputs:
1
Composite Video:
Yes
Number of Composite Video Inputs:
16
Network (RJ-45):
Yes
USB:
Yes
USB Standard:
USB 2.0
Audio Line In:
Yes
Number of Analog Audio Inputs:
4
Audio Line Out:
Yes
Number of Analog Audio Outputs:
1
Power Description
Input Voltage:
  • 12 V DC
  • 110 V AC
  • 220 V AC
Maximum Power Consumption:
36 W
Physical Characteristics
Height:
1.7"
Width:
14.2"
Depth:
6.3"
Weight (Approximate):
3.79 lb
Miscellaneous
Package Contents:
  • 16CH Real-time H.264 Digital Video Recorder
  • Remote Control
Certifications & Standards:
  • FCC
  • CE
  • cULus
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 6950207318184
EAN: 6950207318184
UNSPSC: 52161545
