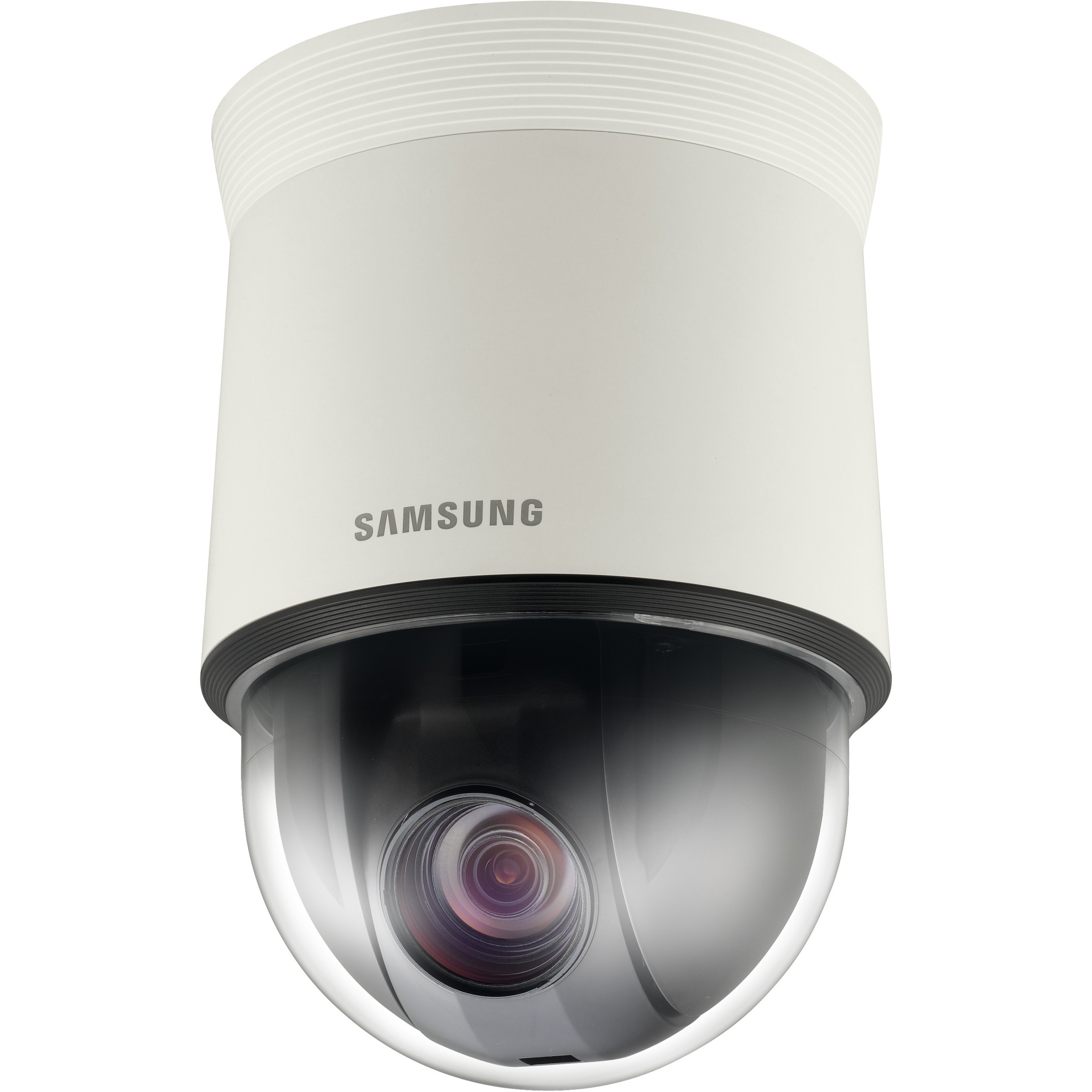

Samsung SNP-6201 Security Camera

The Samsung SNP-6201 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Samsung - Samsung SNP-6201 2 Megapixel Network Camera - Dome - MJPEG, MPEG-4, H.264 - 1920 x 1080 - 20x Optical - CMOS - Fast Ethernet
  • Network camera - Helps achieve high-quality video results
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • Up to 1920 x 1080 resolution for surveillance in real-time
Read More

Need a different version? See all Samsung Parts Accessories

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Samsung SNP-6201 Security Camera
Samsung SNP-6201 Security Camera
Samsung SNP-6201 Security Camera Samsung SNP-6201 Security Camera
Samsung Parts Accessory Model Overview
Products and parts from Samsung.
Samsung SNP-6201 Security Camera Overview
The SNP-6201 is a compact PTZ dome camera which provides 20x images in Full HD resolution. The high resolution 20x optical zoom makes it possible to identify persons approximately 180 meters (55 feet) away. Now operators can get detailed and higher quality image from distance. Its intelligent video analytics function includes Tampering, Virtual Line, Enter/Exit, Appear/Disappear to help capture evidence more efficiently.
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/3"
White Balance Modes:
  • AWC
  • Manual
  • Indoor
  • Outdoor
  • ATW
Minimum Illumination:
0.1 lux
Color Supported:
  • Color
  • Monochrome
Tilt:
-15° to 195°
Swivel:
360°
Field of View:
1.99° to 63°
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
  • MJPEG
  • MPEG-4
  • H.264
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Video Signal Format:
NTSC
Lens
Lens Type:
Zoom
Minimum Focal Length:
4.45 mm
Maximum Focal Length:
89 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Maximum Aperture:
f/2.9
Optical Zoom:
20x
Digital Zoom:
8x
Focus Modes:
  • Automatic
  • Manual
  • One Shot
Exposure
Shortest Shutter Speed:
1/33000 Second
Longest Shutter Speed:
1/30 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • PELCO-D
  • PELCO-P
  • IPv4
  • IPv6
  • TCP/IP
  • UDP/IP
  • RTP/UDP
  • RTP/TCP
  • RTSP
  • NTP
  • HTTP
  • HTTPS
  • SSL
  • DHCP
  • PPPoE
  • FTP
  • SMTP
  • ICMP
  • IGMP
  • SNMP (v1/v2c/v3)
  • SNMP (MIB-2)
  • ARP
  • DNS
  • DDNS
  • QoS
  • PIM-SM
  • UPnP
Power Description
Maximum Power Consumption:
15 W
Physical Characteristics
Form Factor:
Dome
Durability:
Vandal Resistant
Color:
Ivory
Height:
8.6"
Diameter:
6"
Weight (Approximate):
3.97 lb
Miscellaneous
Features:
  • Day/Night
  • Face Detection
  • Audio Detection
  • Back Light Compensation (BLC)
  • Built-in HLC
  • 2D Digital Noise Reduction (2DNR)
  • 3D Digital Noise Reduction
  • Digital Image Stabilization
  • Motion Detection
  • Privacy Masking
  • SD Card Local Storage
System Requirements:
Operating System:
  • Windows XP/VISTA/7
  • MAC OS
Browser:
  • Internet Explorer 7/8/9
  • Mozilla Firefox
  • Google Chrome
  • Apple Safari
Certifications & Standards:
  • IK10
  • FCC
  • UL
  • CE
Impact Protection Rating:
IK10
Security Features:
  • HTTPS(SSL) Login Authentication
  • Digest Login Authentication
  • IP Address Filtering
  • User Access Log
  • 802.1x Authentication
Platform Supported:
  • PC
  • Mac
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 6950207325656
EAN: 6950207325656
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Samsung SNP-6201 Security Camera is also known as SMG-SNP6201
