Samsung SNC-B5399 Accessory

The Samsung SNC-B5399 Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

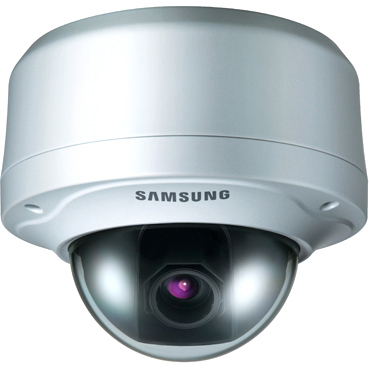

Samsung - Samsung SNC-B5399 Network Camera - MPEG-4, MJPEG - 704 x 480 - 3.9x Optical - CCD - Fast Ethernet
  • Features CCD image sensor
  • Up to 704 x 480 video resolution
Read More
Discontinued Need Assistance?
Add to Quote
Samsung Parts Accessory Model Overview
Products and parts from Samsung.
Samsung SNC-B5399 Accessory Overview

The SNC-B5399 is an IP-enabled vandal and weather resistant network camera equipped with 1/3" Super HAD progressive scan CCD. H.264 compression signifcantly lowers the required network bandwidth and storage costs. Simultaneous dual streaming supports H.264/MPEG-4 and MJPEG compression. The SNC-B5399 has a true day/night feature implemented with an IR Cut Filter to enable 24 hour surveillance in low light conditions. WDR preserves the image detail from both bright and dark portions of the scene, while XDR allows the surveillance of darker and strong backlit areas. A DNR function places the camera ahead of the competition by reaching over 52dB S/N ratio. With the built-in heater and fan, the SNC-B5399 is capable of working in extreme weather conditions. Power over Ethernet (PoE) reduces the installation time and costs. The camera is compatible with the autoIP Simple Open Software.

Display & Graphics
Image Sensor Type:
CCD
White Balance Modes:
  • Auto
  • Manual
Maximum Illumination:
0.4 lux
Color Supported:
Color
Video
Video Formats:
  • MPEG-4
  • MJPEG
Maximum Video Resolution:
704 x 480
Image Formats:
JPEG
Lens
Lens Type:
Zoom
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
11 mm
Lens Mount Type:
Board Mount
Minimum Aperture:
f/1.2
Optical Zoom:
3.9x
Exposure
Shortest Shutter Speed:
1/60 Second
Longest Shutter Speed:
1/10000 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • TCP/IP
  • UDP/IP
  • RTP/UDP
  • RTP/TCP
  • RTSP
  • NTP
  • HTTP
  • HTTPS
  • SSL
  • DHCP
  • PPPoE
  • FTP
  • SMTP
  • ICMP
  • IGMP
  • DDNS
  • SNMP
  • ARP
  • DNS
Storage
Flash Memory Capacity:
32 MB
Power Description
Maximum Power Consumption:
8 W
Physical Characteristics
Color:
White
Height:
5.3"
Diameter:
6.3"
Weight (Approximate):
2.82 lb
Miscellaneous
Package Contents:
  • SNC-B5399 Network Camera
  • Heater
  • Blower
System Requirements:
  • Supported OS: Windows XP, VISTA
  • Supported Browser: Internet Explorer 6.0 or Higher
Compatibility:
  • NTSC
  • PAL
Certifications & Standards:
  • IP66
  • FCC
  • CE
Ingress Protection Rating:
IP66
Security Features:
  • HTTPS(SSL) Login Authentication
  • Digest Login Authentication
  • IP Address Filtering
Item Numbers
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Samsung SNC-B5399 Accessory is also known as SMG-SNCB5399
