Full specifications (PDF)
Number of Screens:
1
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Response Time:
5 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
160°
Samsung SMT-171 CCTV Monitor Model Overview

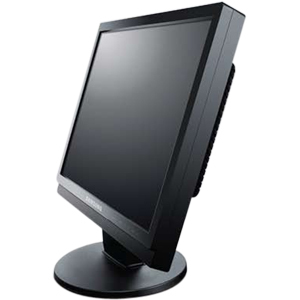

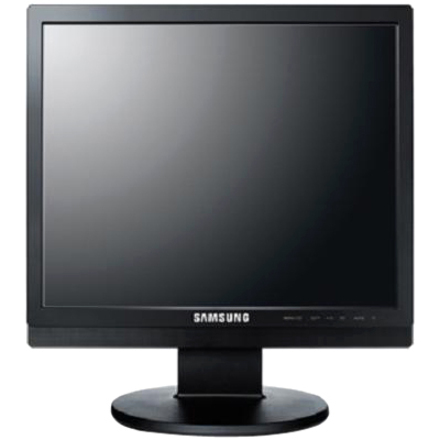

The Samsung SMT-171 is a 17" TFT LCD monitor for surveillance use with two BNC inputs/outputs, one S-Video input/output and one VGA input. The superior 3D Comb Filter, CTI and De-Interlace functions help producing sharper images and a tempered glass attached to the front panel secures better strength. System ID function enables users to control several monitors with one remote controller.
Samsung SMT-171 CCTV Monitor Overview
If you are using high resolution Samsung Techwin cameras and DVRs, the monitors used in the system need to be capable of reproducing the added resolution. Samsung Techwin Monitors are engineered to match the high performance of our cameras and recording systems.
Technical Information
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Number of Speakers:
2
Speakers:
Yes
Interfaces/Ports
VGA:
Yes
Built-in Devices
Built-in Devices:
Speaker
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Operating Power Consumption:
22 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color:
Black
Height:
13"
Width:
14.6"
Depth:
2.8"
Height with Stand:
15.91"
Width with Stand:
12.48"
Depth with Stand:
8.54"
Weight (Approximate):
10.80 lb
Miscellaneous
Package Contents:
- SMT-1712 LCD Monitor
- Remote Controller
Certifications & Standards:
- FC
- CE
- cULUS
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211902
Get help from a Barcoding Expert!
The Samsung SMT-171 CCTV Monitor is also known as
SMG-SMT171
