System Components:
Digital Video Recorder

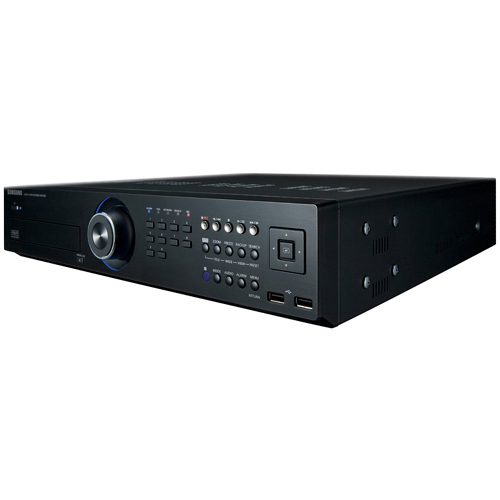

Samsung SHR-8082-1T Surveillance DVR
Part Number:
SHR-8082-1T
Model:
Samsung Parts Accessory Model Overview
Products and parts from Samsung.
Samsung SHR-8082-1T Surveillance DVR Overview
Samsung Electronics' SHR-8082 DVR is a lower cost alternative to a PC Based DVR, and they are easy to use. The SHR-8082 DVR is designed to achieve real time D1 resolution @ 240fps high quality recording for any demanding security application.
Technical Information
Storage
Hard Drive Capacity:
1 TB
Video
Video Formats:
MPEG-4
Video Signal Format:
NTSC
Maximum Resolution:
704 x 480
Maximum Frame Rate:
480 fps
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
USB:
Yes
USB Standard:
USB 2.0
Network (RJ-45):
Yes
Composite Video In:
Yes
Composite Video Out:
Yes
Total Number of Audio In Ports:
8
Total Number of Audio Out Ports:
1
Serial:
Yes
Number of VGA Out:
1
HDMI:
Yes
Power Description
Input Voltage:
- 220 V AC
- 230 V AC
Physical Characteristics
Height:
3.5"
Width:
17.3"
Depth:
16.9"
Weight (Approximate):
17.20 lb
Miscellaneous
Additional Information:
- Built-in DVD-RW
- Web based monitoring & search
- Stable system operation
- POS support up to 8 channels
Item Numbers
UNSPSC:
46171621
The Samsung SHR-8082-1T Surveillance DVR is also known as
SMG-SHR80821T
