System Components:
Digital Video Recorder

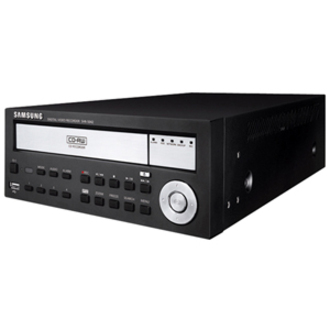

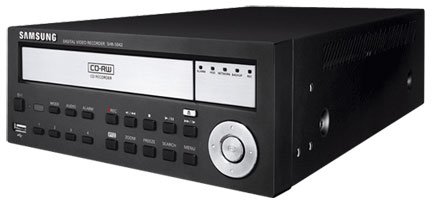

Samsung SHR-5042 Surveillance DVR Model Overview
The Samsung SHR-5042 DVR is a standalone system that can record up to 120/100 images per second from 4 channels using MPEG4 compression. It is able to simultaneously record-to and play-from a hard drive in real time by compressing the audio of 4 channels with ADPCM (Adaptive Differential Pulse Code Modulation). Using dual codecs, the Samsung SHR-5042 DVR can smoothly record and transmit through a network, allowing continuous remote monitoring even in a poor network environment. The SHR-5042 also features an integrated CD-RW drive.
Technical Information
Storage
Hard Drive Capacity:
250 GB
Video
Video Formats:
MPEG-4
Video Signal Format:
- NTSC
- PAL
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Interfaces/Ports
USB:
Yes
USB Standard:
USB 2.0
Composite Video In:
Yes
Composite Video Out:
Yes
Alarm Connector:
Yes
Total Number of Audio In Ports:
4
Total Number of Audio Out Ports:
1
Serial:
Yes
VGA:
Yes
Power Description
Input Voltage:
- 240 V AC
- 220 V AC
Physical Characteristics
Height:
3.5"
Width:
8.5"
Depth:
13.9"
Weight (Approximate):
8.82 lb
Miscellaneous
Additional Information:
- Exclusive video processor: image quality improved by more than 30% compared to existing products
- Various video outputs supported
- Watermark for preventing video alteration
- Convenient user interface: Event, Date/Time, Go to First/Last, Backup Search and Calendar functions
Item Numbers
UNSPSC:
46171621
Get help from a Barcoding Expert!
The Samsung SHR-5042 Surveillance DVR is also known as
SMG-SHR5042
