System Components:
Digital Video Recorder
Samsung SHR-5040 Surveillance DVR
Part Number:
SHR-5040
Model:
SHR-5040

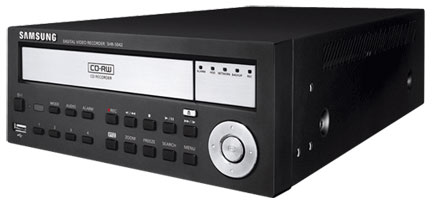

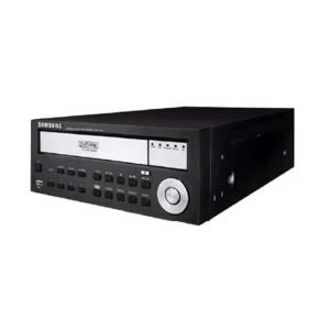

Samsung SHR-5040 Surveillance DVR Model Overview
The Samsung SHR-5040 DVR is a standalone system that can record up to 120/100 images per second from 4 channels using MPEG4 compression. It is able to simultaneously record-to and play-from a hard drive in real time by compressing the audio of 4 channels with ADPCM (Adaptive Differential Pulse Code Modulation). Using dual codecs, the Samsung SHR-5040 DVR can smoothly record and transmit through a network, allowing continuous remote monitoring even in a poor network environment.
Samsung SHR-5040 Surveillance DVR Overview
The new SHR-5040 DVR from SAMSUNG Electronics uses dual codec to record and transmit video via a network. This will allow the high quality picture recording to the HDD and continuous remote monitoring.
Technical Information
Storage
Hard Drive Capacity:
250 GB
Video
Video Formats:
MPEG-4
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Interfaces/Ports
USB:
Yes
USB Standard:
USB 2.0
Composite Video In:
Yes
Composite Video Out:
Yes
Alarm Connector:
Yes
Total Number of Audio In Ports:
4
Total Number of Audio Out Ports:
1
Serial:
Yes
Number of VGA Out:
1
Power Description
Input Voltage:
- 220 V AC
- 240 V AC
Physical Characteristics
Height:
3.5"
Width:
8.5"
Depth:
13.9"
Weight (Approximate):
8.81 lb
Miscellaneous
Additional Information:
- Convenient IR remote control
- Watermark for preventing video alteration
- Can record in Full D1 mode
Item Numbers
UNSPSC:
46171621
