System Components:
Digital Video Recorder

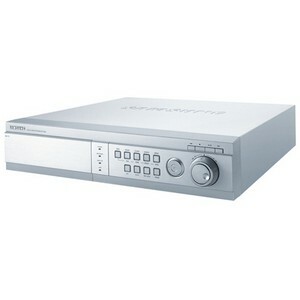

Samsung SHR-4160-500 Surveillance DVR
Part Number:
SHR-4160-500
Model:
Samsung Parts Accessory Model Overview
Products and parts from Samsung.
Samsung SHR-4160-500 Surveillance DVR Overview
The SHR-4160 is a 16-channel MPEG-4 Digital Video Recorder capable of 360 ips recording rate in CIF/Half D1 mode. It can record 8-channel synchronized audio and various kinds of resolution (CIF/Half D1/Full D1).
Technical Information
Storage
Hard Drive Capacity:
500 GB
Video
Video Formats:
MPEG-4
Maximum Resolution:
720 x 480
Maximum Frame Rate:
360 fps
Interfaces/Ports
USB:
Yes
USB Standard:
USB 2.0
Composite Video In:
Yes
Composite Video Out:
Yes
Alarm Connector:
Yes
Total Number of Audio In Ports:
8
Total Number of Audio Out Ports:
1
Miscellaneous
Additional Information:
- Remote Control: SSC-2000 Keyboard
- Display Speed: Real Time
- Remote monitoring and control through network (LAN)
- Recording during replay, Live. Triplex (monitoring/playback/ recording)
Item Numbers
UNSPSC:
46171621
The Samsung SHR-4160-500 Surveillance DVR is also known as
SMG-SHR4160500
