Fixed Focal Length:
3.80 mm
Samsung SDC-7340BC Security Camera
Part Number:
SDC-7340BC
Model:
Samsung Accessory Model Overview
Products and parts from Samsung.

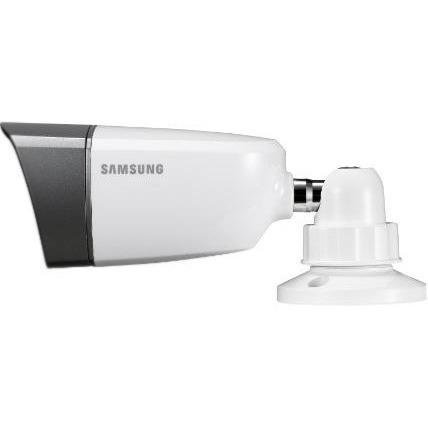

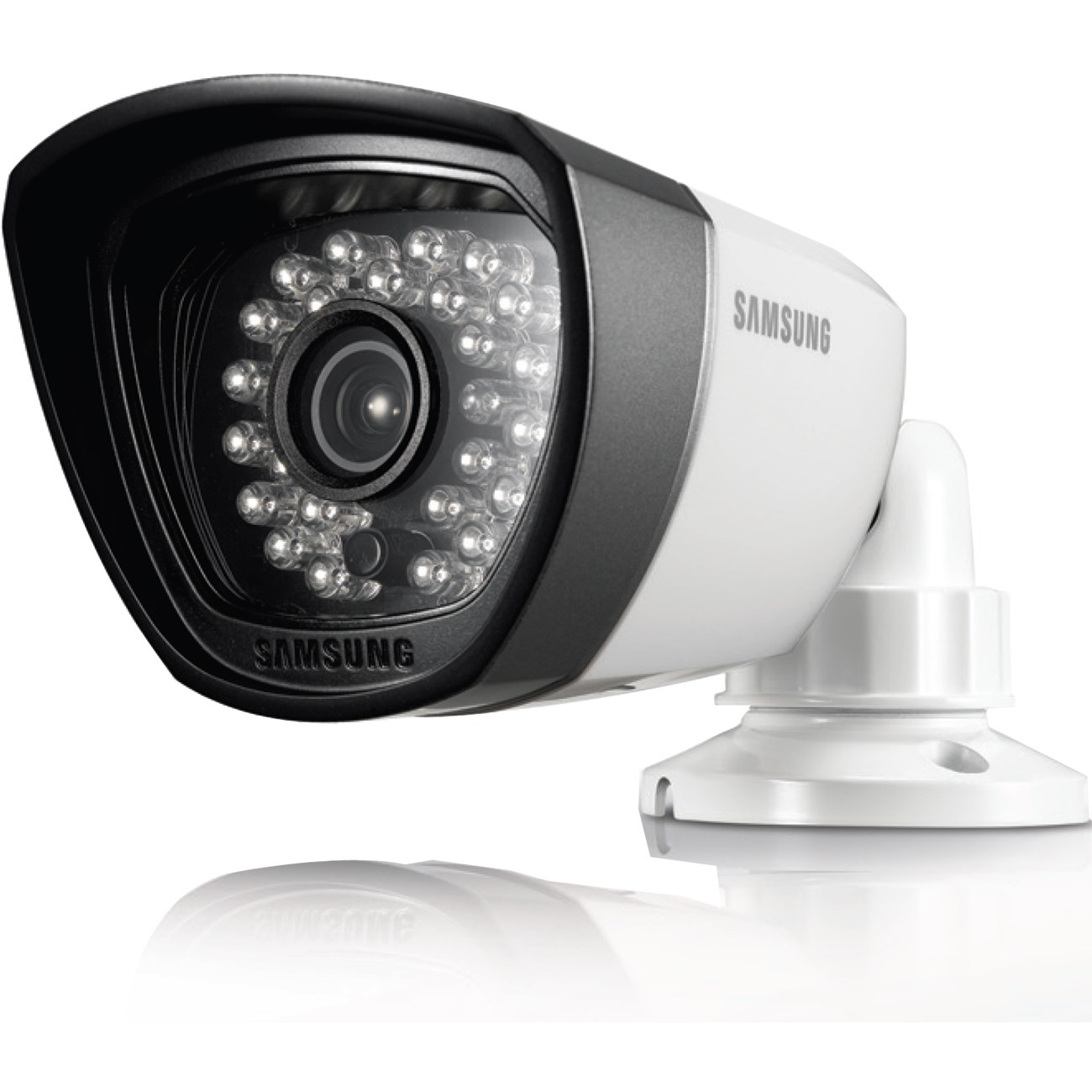

Samsung SDC-7340BC Security Camera Overview
The SDC-7340BC is Samsung's surveillance box camera. It is included in several of Samsung all-in-one home surveillance systems. Samsung brings you a quality product that is durable, dependable, and easy to set-up and use. The SDC-7340BC is an outdoor security box camera. It has a weatherproof rating of IP66. It also comes equipped with LED infrared lamps to give it a max range of 82ft during night time conditions. The camera also records at a incredibly crisp 720TVL, well above the industry standards. Lastly, the SDC-7340BC has a bracket that can hides unwanted wire, giving you that extra degree of security and durability.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/3"
White Balance Modes:
Auto
Minimum Illumination:
0 lux
Color Supported:
- Color
- Monochrome
Field of View:
66° to 80°
Video
Horizontal Resolution:
720 TVL
Lens
Lens Type:
Fixed
Maximum Focal Length:
3.80 mm
Lens Included:
Yes
Maximum Aperture:
f/2
Network & Communication
Connectivity Technology:
Wired
Power Description
Maximum Power Consumption:
3 W
Input Voltage:
- 12 V DC
- 110 V AC
- 220 V AC
Physical Characteristics
Durability:
- Weather Resistant
- Weather Proof
Color:
White
Height:
2.5"
Width:
2.8"
Depth:
7.6"
Weight (Approximate):
8.96 oz
Miscellaneous
Features:
- Digital Noise Reduction
- Day/Night
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
- SDC-7340BC Weatherproof Night Vision Camera
- Bracket
- Screws
- 60ft of Cable
Certifications & Standards:
IP66
Ingress Protection Rating:
IP66
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0190341185488, 0849688001707, 5052184640867, 6950207326462, 6950207334559
UPC:
190341185488, 849688001707
EAN:
0190341185488, 0849688001707, 5052184640867, 6950207326462, 6950207334559
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Samsung SDC-7340BC Security Camera is also known as
SMG-SDC7340BC
