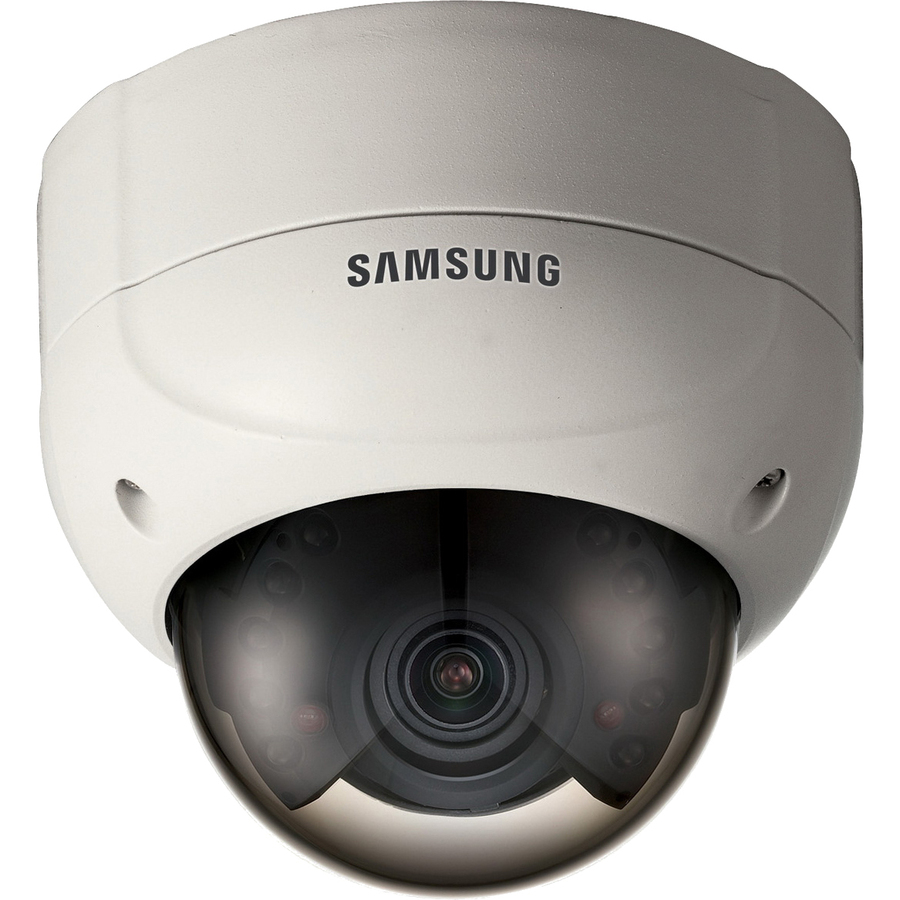

Samsung SCV-2080R Security Camera

The Samsung SCV-2080R Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Samsung SCV-2080 - Samsung SCV-2080R Surveillance Camera - 3.6x Optical - CCD
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

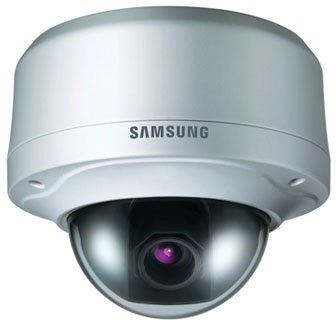

Samsung SCV-2080 Security Camera Model Overview
Equipped with the high performance W-V DSP chipset, the SCV-2080 high resolution vandal dome camera provides a horizontal resolution of 600TV lines for exceptional imaging. With a low light level of 0.15Lux, it forms noise-free images even in the darkest conditions and the extra-sturdy aluminum chassis provides unparalleled durability. The built-in 3.6X vari-focal lens (2.8 ~ 10mm) provides an optimal monitoring range in any installation environment. This camera features enhanced user-friendly options including a multi-language OSD, coaxial control compatibility, SSDR and DIS.
Display & Graphics
Image Sensor Type:
CCD
Minimum Illumination:
0 lux
Color Supported:
  • Color
  • Monochrome
Tilt:
73° to 73°
Swivel:
170° to 170°
Lens
Optical Zoom:
3.6x
Digital Zoom:
16x
Minimum Focus Distance:
7.87"
Network & Communication
Connectivity Technology:
Wired
Power Description
Input Voltage:
  • 12 V DC
  • 24 V AC
Physical Characteristics
Height:
5"
Diameter:
5.8"
Weight (Approximate):
2.87 lb
Miscellaneous
Package Contents:
  • SCV-2080R Surveillance Camera
  • Instruction Manual
  • 4 x Ø5 Tapping Screw
  • Quick Install Guide
  • Wrench
  • Template
  • Installation Video Output Cable
Additional Information:
  • Motion detection
  • HLC (Highlight Compensation)
  • DIS (Digital Image Stabilization)
  • Built-in high-performance IR LEDs
  • Protection against water & dust (IP66)
  • SSDR (Samsung Super Dynamic Range)
  • Day & Night with ICR (Infrared Cut filter Removal)
  • Privacy masking with 12 user programmable zones
  • SSNRIII, Upgraded 2D/3D noise reduction technology
  • Based on W-V, the latest generation of Winner DSP engine
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Item Numbers
GTIN: 6950207313448
EAN: 6950207313448
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Samsung SCV-2080R Security Camera is also known as SMG-SCV2080R
