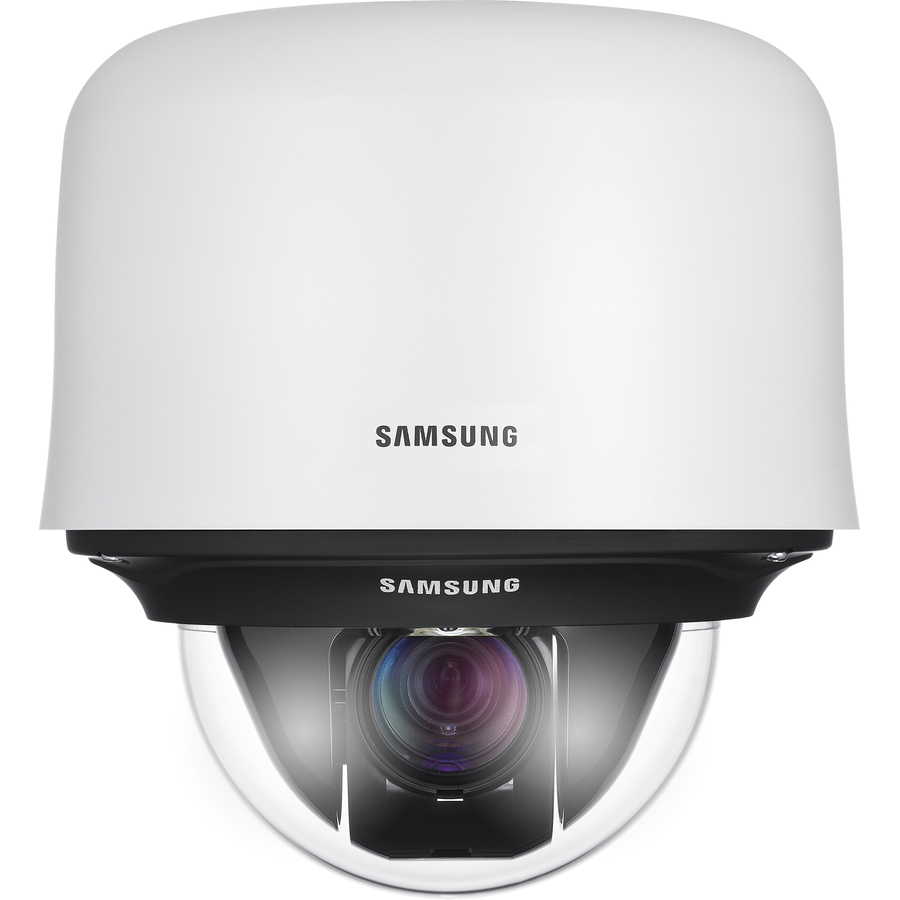

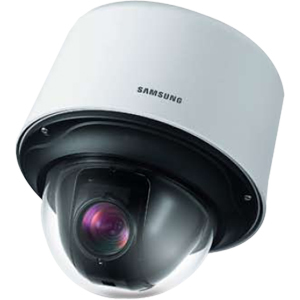

Samsung SCP-3430H Security Camera

Part Number: SCP-3430H
Model: SCP-3430
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Image Sensor Type
CCD
White Balance Modes
ManualAuto
Maximum Illumination
0.7 lux
Color Supported
ColorMonochrome

Product Description:

  ANALOG PTZ DOME, 1/4" EX-VIEW HAD PROGRESSIVE SCAN CCD, 600
Explore all Samsung SCP-3430 Security Cameras
Add to Quote
Samsung SCP-3430H Security Camera
Samsung SCP-3430H Security Camera
Samsung SCP-3430H Security Camera
Samsung SCP-3430H Security Camera Samsung SCP-3430H Security Camera Samsung SCP-3430H Security Camera
Full specifications (PDF)

Samsung SCP-3430 Security Camera Model Overview

The SCP-3430 PTZ dome camera is Samsung's highest performance PTZ dome camera. It features a 43x auto focus zoom lens (3.2-138.5mm), 360-degree continuous rotation, high-speed pan and tilt operations at 600-degree per second, 512 presets, and 128x Wide Dynamic Range (WDR). Powered by Samsung's A1 chipset, the SCP-3430 camera offers 600TV lines color resolution and a long list of features including true Day / Night operation with ICR, privacy masking, frame integration, and much more.
Samsung SCP-3430H Security Camera Overview

SCP-3430/3430H/2430/2430H PTZ dome cameras are able to capture quality images over expansive areas due to their 43x optical zoom. These cameras offer clear and vivid images with 600TV lines color resolution and perform perfectly at low light levels down to 0.7Lux/0.2Lux. The SCP-3430H/2430H cameras come with a pre-fitted housing for extra convenience.

Full specifications (PDF)
Display & Graphics
Image Sensor Type:
CCD
White Balance Modes:
  • Manual
  • Auto
Maximum Illumination:
0.7 lux
Color Supported:
  • Color
  • Monochrome
Tilt:
-6° to 186°
Swivel:
360°
Lens
Lens Type:
Zoom
Minimum Focal Length:
3.20 mm
Maximum Focal Length:
138.50 mm
Minimum Aperture:
f/1.65
Maximum Aperture:
f/3.7
Optical Zoom:
43x
Digital Zoom:
16x
Focus Modes:
  • Automatic
  • Manual
Minimum Focus Distance:
39.37"
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/100 Second
Network & Communication
Connectivity Technology:
Wired
Power Description
Maximum Power Consumption:
47 W
Physical Characteristics
Height:
10.1"
Diameter:
9"
Weight (Approximate):
6.61 lb
Miscellaneous
Compatibility:

PAL

Item Numbers
GTIN: 5055751524355
EAN: 5055751524355
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Samsung SCP-3430H Security Camera is also known as SMG-SCP3430H
