Samsung SCD-6080 Security Camera

The Samsung SCD-6080 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Samsung SCD-2080 - Samsung SCD-6080 Surveillance Camera - Dome - 1920 x 1080 - 2.8x Optical - CMOS
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • Up to 1920 x 1080 video resolution
Read More

Need a different version? See all Samsung SCD-2080 Accessories

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Samsung SCD-6080 Security Camera
Samsung SCD-6080 Security Camera Samsung SCD-6080 Security Camera
Samsung SCD-6080 Security Camera
Samsung SCD-6080 Security Camera
Full specifications (PDF)
Samsung SCD-2080 Accessory Model Overview
The SCD-2080 is a high performance dome camera. Equipped with our latest W-V DSP chipset, it delivers good results even in dark environments with light levels down to 0.15 Lux. In addition, the SCD-2080's 3.6x varifocal lens (2.8 ~ 10mm) provides maximum flexibility for installation. It comes with built-in remote coaxial control compatibility, VPS (Virtual Progressive Scan) and True Day / Night with ICR.
Samsung SCD-6080 Security Camera Overview

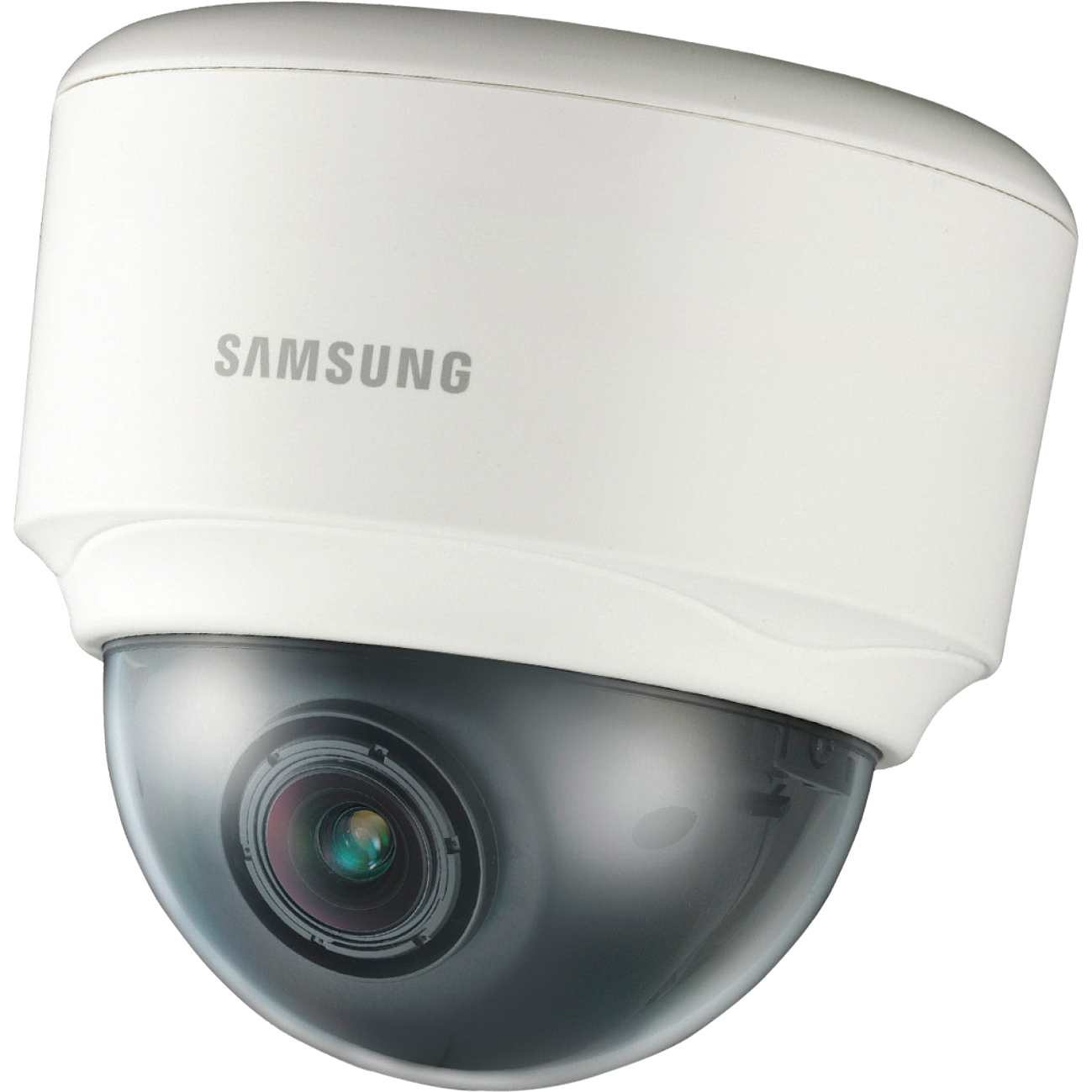

The SCD-6080 is Samsung Techwin's HD-SDI megapixel digital camera, using HD-SDI technology this camera transfers HD Megapixel images without signal interruption or video delay; it is ideal for use in high-security surveillance applications for example; casinos, banking and hotels. The SCD-6080 can transfer full HD (1920 x 1080) resolution videos max. 100m distance at 30fps real-time. In addition, this true day/night camera has a 2.8x motorized varifocal lens provides flexibility for installation, SSDR and SSNRIII.

Full specifications (PDF)
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/3"
White Balance Modes:
  • AWC
  • ATW
  • Outdoor
  • Indoor
  • Manual
Minimum Illumination:
0 lux
Color Supported:
  • Color
  • Monochrome
Field of View:
20.8° to 105°
Video
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
3 mm
Maximum Focal Length:
8.50 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Optical Zoom:
2.8x
Digital Zoom:
16x
Focus Modes:
  • One Shot
  • Manual
Minimum Focus Distance:
19.69"
Exposure
Shortest Shutter Speed:
1/12000 Second
Longest Shutter Speed:
1/30 Second
Network & Communication
Connectivity Technology:
Wired
Protocols:
  • PELCO-D
  • PELCO-P
Controls/Indicators
Status Indicators:

On Screen Display

Power Description
Maximum Power Consumption:
6 W
Physical Characteristics
Form Factor:
Dome
Color:
Ivory
Height:
5.1"
Diameter:
5.2"
Weight (Approximate):
1.18 lb
Miscellaneous
Features:
  • Day/Night
  • Motion Detection
  • Digital Noise Reduction
Indoor/Outdoor:
Indoor
Item Numbers
GTIN: 6950207321900
EAN: 6950207321900
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Samsung SCD-6080 Security Camera is also known as SMG-SCD6080
