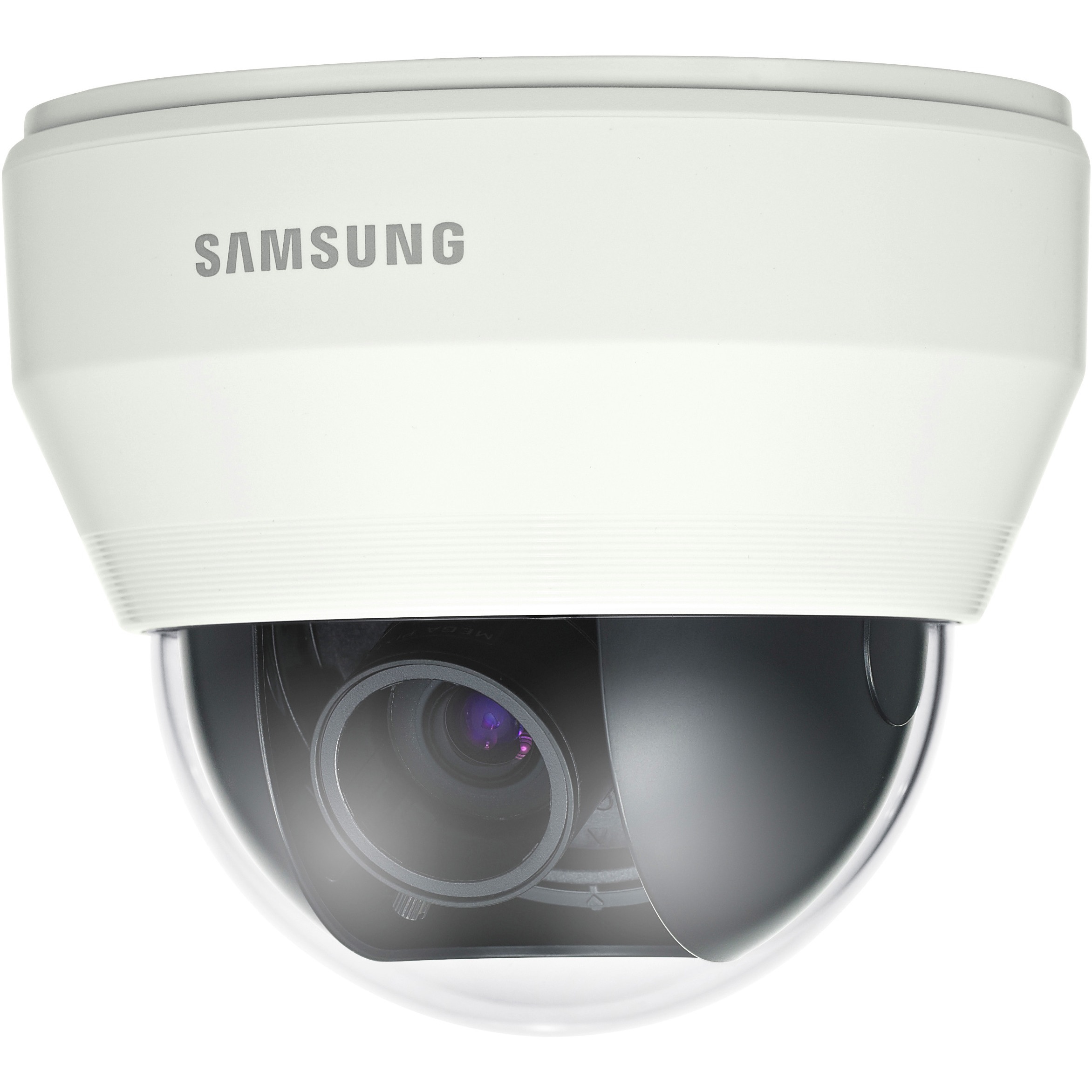

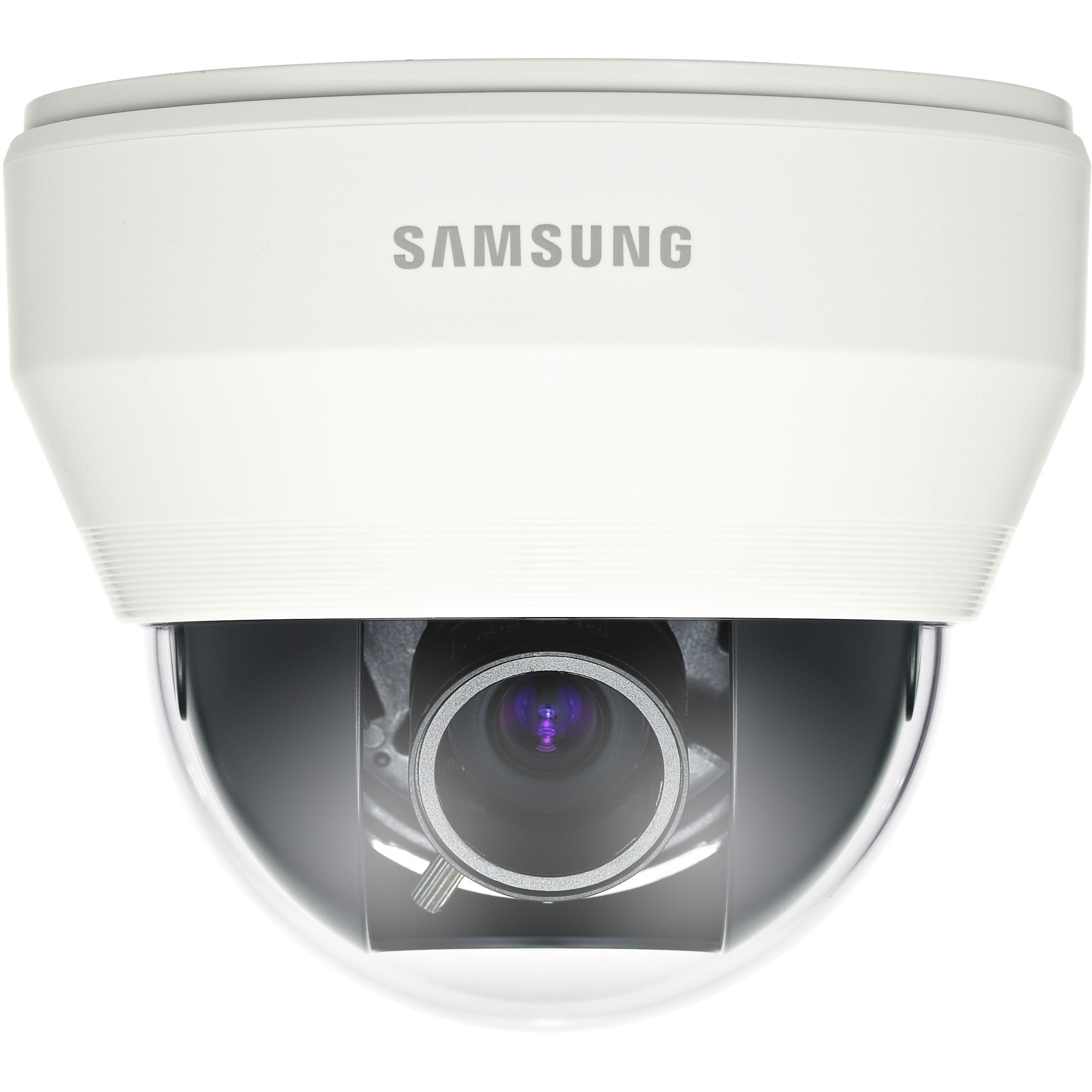

Samsung SCD-5080 Security Camera

The Samsung SCD-5080 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Samsung - Samsung Beyond SCD-5080 1.3 Megapixel Surveillance Camera - Dome - 3.3x Optical - CMOS - Corner Mount, Pole Mount, Wall Mount
  • Low cost and affordable solution for surveillance applications
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
Read More

Need a different version? See all Samsung Parts Accessories

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Samsung SCD-5080 Security Camera
Samsung SCD-5080 Security Camera Samsung SCD-5080 Security Camera
Samsung SCD-5080 Security Camera
Samsung SCD-5080 Security Camera
Samsung Parts Accessory Model Overview
Products and parts from Samsung.
Samsung SCD-5080 Security Camera Overview
Samsung's new 1000TVL High Resolution Analog Beyond Series, provides exceptional image quality, outstanding backlight compensation and multitude of user friendly functions. The Beyond Series is Samsung's complete analog solution that comprises of 1280H cameras and Digital Video Recorders.
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/3"
White Balance Modes:
  • ATW
  • Indoor
  • Outdoor
  • Manual
  • AWC
  • Mercury Lamp
Minimum Illumination:
0 lux
Color Supported:
  • Color
  • Monochrome
Field of View:
19.9° to 82°
Effective Camera Resolution:
1.3 Megapixel
Video
Horizontal Resolution:
1000 TVL
Video Signal Format:
NTSC
Lens
Lens Type:
Varifocal
Minimum Focal Length:
3 mm
Maximum Focal Length:
10 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Maximum Aperture:
f/1.4
Optical Zoom:
3.3x
Digital Zoom:
16x
Focus Modes:
Manual
Exposure
Shortest Shutter Speed:
1/12000 Second
Longest Shutter Speed:
1/1 Second
Network & Communication
Connectivity Technology:
Wired
Protocols:
Pelco-C
Power Description
Maximum Power Consumption:
3.50 W
Physical Characteristics
Mount Type:
  • Corner Mount
  • Pole Mount
  • Wall Mount
Form Factor:
Dome
Color:
Ivory
Height:
4"
Diameter:
4.7"
Weight (Approximate):
1.15 lb
Miscellaneous
Features:
  • Built-in OSD Function
  • Day/Night
  • Back Light Compensation (BLC)
  • Built-in HLC
  • Digital Noise Reduction
  • Defog
  • Digital Image Stabilization
  • Motion Detection
  • Privacy Masking
Indoor/Outdoor:
Indoor
Certifications & Standards:
  • FCC
  • CE
  • UL
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0695020733481, 6950207334818
UPC: 695020733481
EAN: 0695020733481, 6950207334818
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Samsung SCD-5080 Security Camera is also known as SMG-SCD5080
