Video Wall Compatible:
Yes
Bezel Width (Bottom):
0.43"
Bezel Width (Top):
0.35"
Samsung Parts Accessory Model Overview
Products and parts from Samsung.

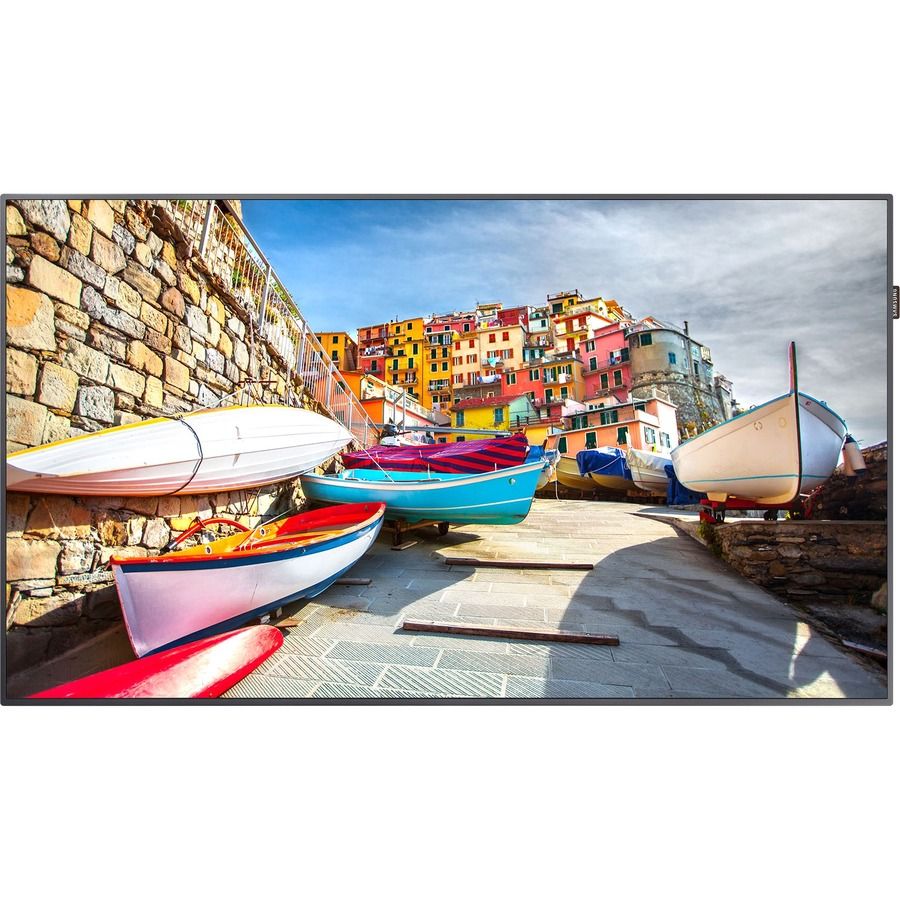

Samsung PM43H Customer Display Overview
At a Glance
Samsung PM-H Series commercial displays feature a slim and narrow design. They're built for 24/7 run-time and have an embedded System-on-Chip (SoC) media player for simple remote content management. Get the connectivity you need and deliver high picture quality to make your message stand out.
- Built for 24/7 continuous use so you can connect with your customers around the clock
- Proven durable with IP5X certified dust protection, plus a non-glare panel for improved visibility
- Slim, ADA-Compliant profile with a mere 1.2" chassis depth
- Next gen Smart Signage Platform (SSP) 4.0 powered by Tizen OS for powerful, streamlined remote content management
Features
Built for 24/7 Use & IP5X Certified for Dust Protection
These displays are built for 24/7 continuous use and are proven durable with IP5X certified dust protection. So you can install your signage smoothly in dusty environments without the need for additional housing, while meeting around the clock operating requirements in venues ranging from retail stores and public spaces to Command & Control facilities.
Non-Glare Panel for Improved Visibility
The non-glare panel features 500nit brightness to improve visibility of your message.
Slim, ADA-Compliant Profile of Just 1.2"
The PM-H Series features a slim 1.2" chassis depth for an elegant, sophisticated look. And they're ADA-compliant when mounted with the appropriate mount.
System-on-Chip Platform for Simple Remote Content Management
Powered by an embedded System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined digital signage solution, with digital signage software like MagicInfo T for PC-less content creation, scheduling and playing and remotely managing content.
Enhanced Web Compatibility with Available B2B Developer SDK
Samsung B2B SDK allows developers to build web-based apps for customer functionality and greater interactivity.
Full Connectivity
Discover versatile connectivity options to display a full range of exceptional content that speaks to your audience. Connections include DVI-I, Display Port 1.2, HDMI, USB 2.0, RS232C/RJ45 and more.
Built-In Wi-Fi®
Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display
Technical Information
Processor & Chipset
Processor Type:
Cortex A12
Processor Speed:
1.30 GHz
Processor Core:
Quad-core (4 Core)
Memory
Standard Memory:
2.50 GB
Display & Graphics
Screen Size:
43"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Backlight Technology:
Edge LED
Video
Scan Format:
1080p
Brightness:
500 Nit
Network & Communication
Ethernet:
Yes
Wireless LAN:
Yes
Interfaces/Ports
USB:
Yes
DVI:
Yes
HDMI:
Yes
Serial:
Yes
Number of USB 2.0 Ports:
2
Number of HDMI Inputs:
2
Number of DisplayPorts:
2
Software
Operating System:
Tizen 2.4
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
VESA Mount Standard:
200 x 200
Height:
21.8"
Width:
37.9"
Depth:
1.2"
Weight (Approximate):
20.90 lb
Miscellaneous
Package Contents:
- PM43H - Edge-Lit LED Display for Business
- Quick Setup Guide
- Regulatory Guide
- Warranty Card
- Power Cord
- Remote Controller
- Batteries
- RS232C(IN) adapter
- Cover Jack
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0755278673127, 0818252053527, 0887276218045, 8806088886541
UPC:
755278673127, 818243597436, 818252053527, 887276218045
EAN:
0755278673127, 0818252053527, 0887276218045, 8806088886541
UNSPSC:
43211902
Questions? Get help from
a POS Expert!
a POS Expert!
The Samsung PM43H Customer Display is also known as
PM43H
