Video Wall Compatible:
Yes
Bezel Width:
0.35"

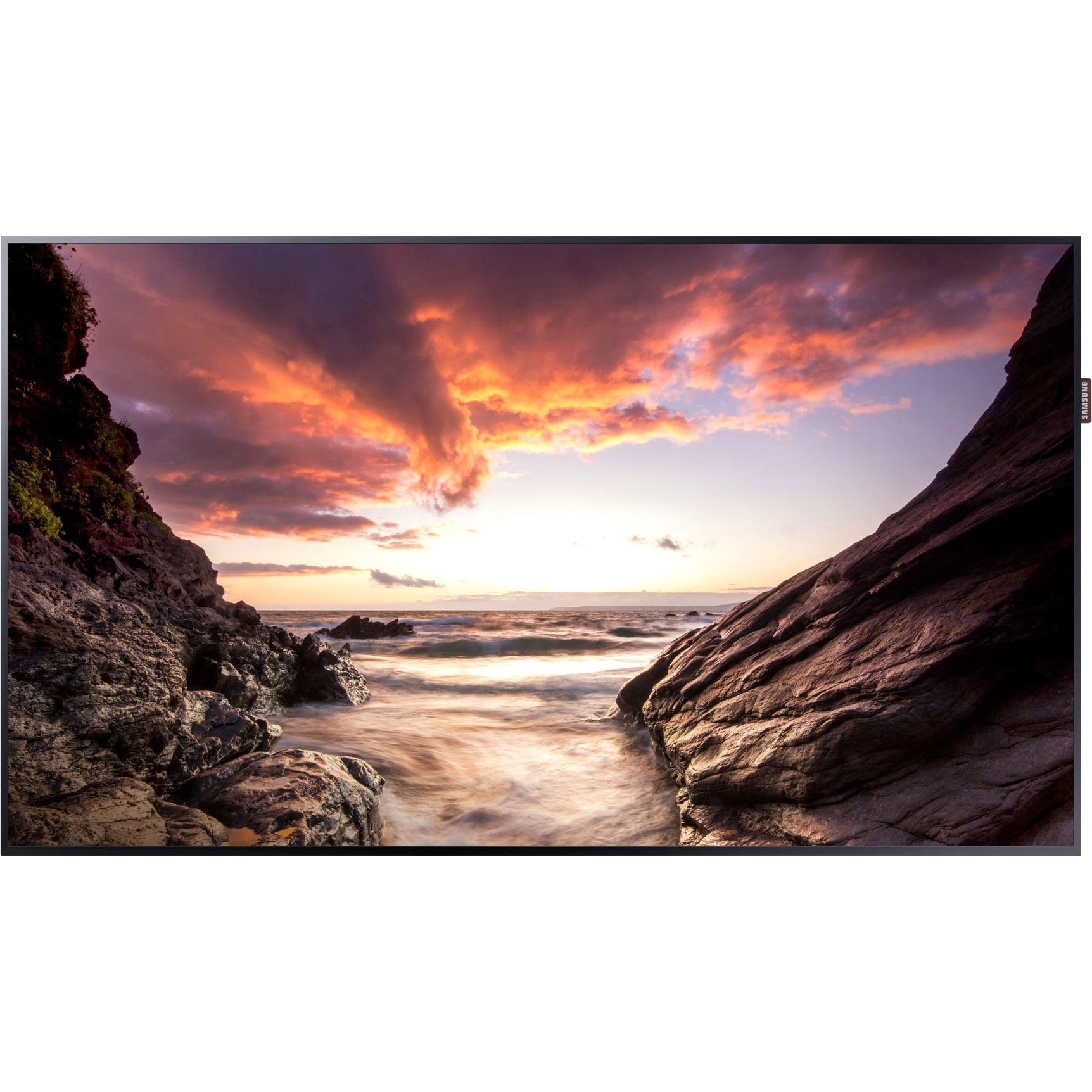

Samsung PM32F Digital Signage Display
Part Number:
PM32F
Model:
Parts
Samsung Accessory Model Overview
Products and parts from Samsung.
Samsung PM32F Digital Signage Display Overview
At a Glance
Samsung PM-F Series commercial displays feature a slim and narrow design. They're built for 16/7 run-time and have an embedded System-on-Chip (SoC) media player for simple remote content management. Get the connectivity you need and deliver high picture quality to make your message stand out.
- Slim, ADA-Compliant profile of just 1.1" chassis depth and 8.9mm bezel width
- Next gen Smart Signage Platform (SSP) 4.0 powered by Tizen OS for powerful, streamlined remote content management
- Built for 16/7 operation so you can connect with your customers during peak hours
- High picture quality and full connectivity options
Features
Slim, ADA-Compliant Profile of Just 1.1"
The PM-F Series features a thin 8.9mm bezel and 1.1" chassis depth for an elegant, sophisticated look. And they're ADA-compliant.
System-on-Chip Platform for Simple Remote Content Management
Powered by an embedded System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined digital signage solution, with digital signage software like MagicInfo T for PC-less content creation, scheduling and playing and remotely managing content.
Non-Glare Panel for Improved Visibility
The non-glare panel features 400nit brightness to improve visibility of your message.
Built for 16/7 Operation & IP5X Certified for Dust Protection
These displays are built for 16/7 operation and are proven durable with IP5X certified dust protection. So you can install your signage smoothly in dusty environments without the need for additional housing, while meeting commercial operating requirements in venues ranging from retail stores and public spaces to Command & Control facilities.
Full Connectivity
Discover versatile connectivity options to display a full range of exceptional content that speaks to your audience. Connections include DVI-I, Display Port 1.2, HDMI, USB 2.0, RS232C/RJ45 and more.
Built-In Wi-Fi®
Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.
Technical Information
Processor & Chipset
Processor Type:
Cortex A12
Processor Speed:
1.30 GHz
Processor Core:
Quad-core (4 Core)
Memory
Standard Memory:
2.50 GB
Display & Graphics
Screen Size:
32"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Backlight Technology:
Edge LED
Video
Scan Format:
1080p
Brightness:
400 Nit
Network & Communication
Ethernet:
Yes
Wireless LAN:
Yes
Interfaces/Ports
USB:
Yes
DVI:
Yes
HDMI:
Yes
Serial:
Yes
Number of USB 2.0 Ports:
2
Number of HDMI Inputs:
2
Number of DisplayPorts:
2
Software
Operating System:
Tizen 2.4
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
VESA Mount Standard:
200 x 200
Height:
16.3"
Width:
28.3"
Depth:
1.1"
Miscellaneous
Package Contents:
- PM32F - Edge-Lit LED Display for Business
- Quick Setup Guide
- Regulatory Guide
- Warranty Card
- Power Cord
- Remote Controller
- Batteries
- RS232C(IN) adapter
- Cover Jack
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Mexico
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0657379258794, 0887276164571, 8806088373324
UPC:
657379258794, 887276164571
EAN:
0657379258794, 0887276164571, 8806088373324
UNSPSC:
43211902
Get help from a Barcoding Expert!
The Samsung PM32F Digital Signage Display is also known as
PM32F
