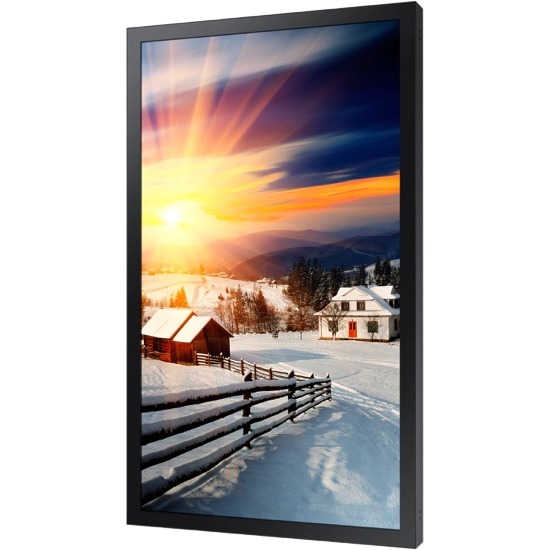

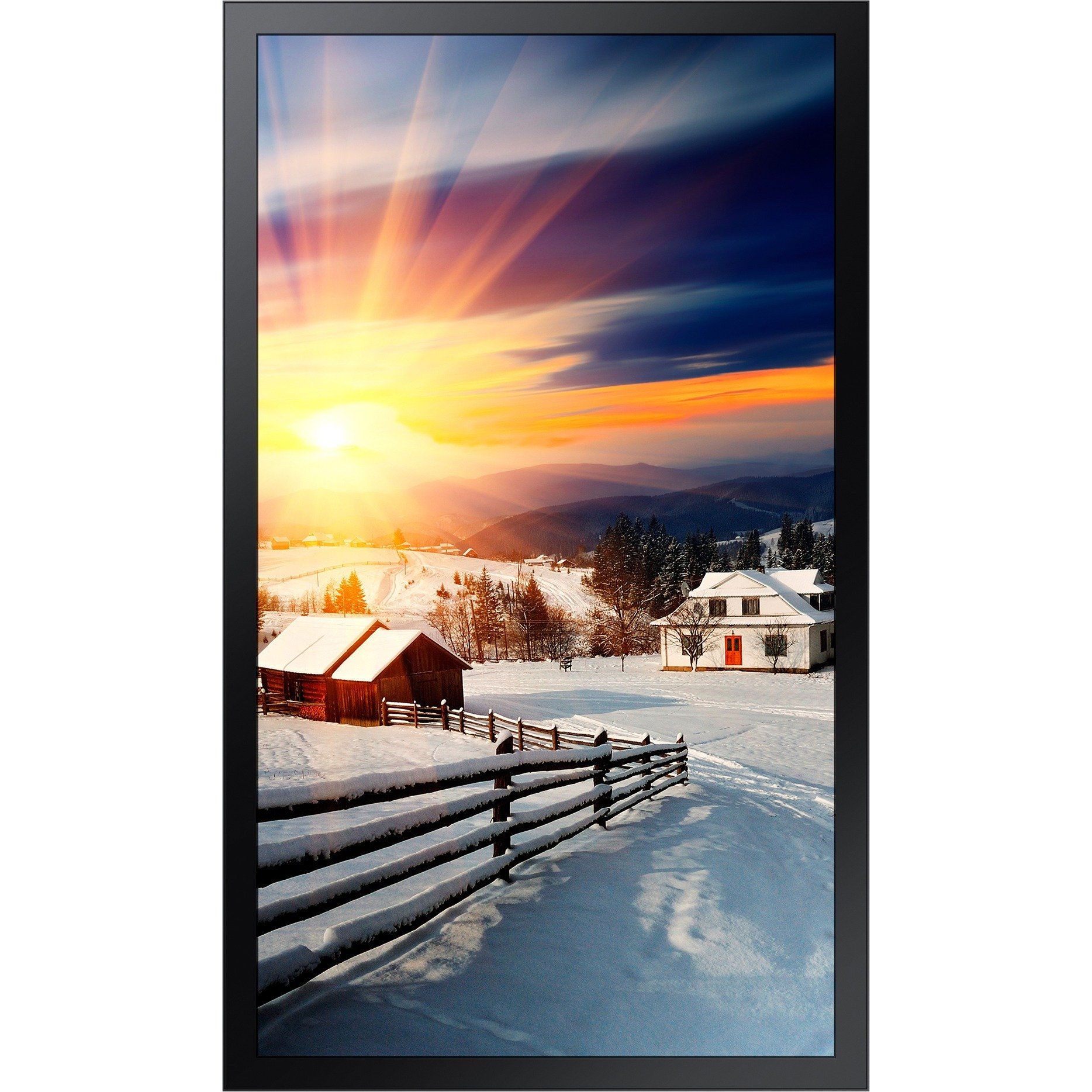

Samsung OH85N Digital Signage Display

Part Number: OH85N
Model: Parts

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Processor Type
Cortex A72
Processor Speed
1.70 GHz
Processor Core
Quad-core (4 Core)
Standard Memory
2.50 GB

Product Description:

  OHN SERIES 85 OUTDOOR DISPLAY (KIT-TYPE)

Samsung Accessory Model Overview

Products and parts from Samsung.
Samsung OH85N Digital Signage Display Overview

At a glance

Samsung's OHN Series outdoor displays are designed to endure harsh outdoor conditions and deliver your message with exceptional clarity around the clock. Perfect for bus stops and roadside billboards with high brightness and a built-in dimming sensor, your content will shine day or night. Plus, you can easily manage your signage remotely thanks to an embedded media player.

  • Outdoor display with IP56 certification for use in heat, cold, rain, snow and dust
  • High brightness display with a built-in dimming sensor to deliver content with amazing clarity, day or night
  • Reliable 24/7 operation with a simple solution for remote content management
  • Built to handle extreme temperatures with a self-cooling system and protected from vandalism with tempered Magic Glass

Features

Optimized Outdoor Visibility to Deliver Your Message

At 3,300 nits, this high brightness display delivers excellent legibility and visibility, even in bright sunlight. With a built-in dimming sensor, the display automatically adjusts brightness based on the ambient light to optimize visibility for day or night, while maintaining efficient operating costs for your business.

IP56 Certification to Withstand the Elements

The OHN Series is true all-weather, IP56-certified1 outdoor signage, designed specifically to withstand the elements and fully perform in heat, snow and dust.

24/7 Commercial Reliability

Built to handle 24/7 continuous operation, you'll be able to deliver impactful messaging to your audience around the clock, while a 3-year onsite warranty secures your investment and peace of mind.

Protected from Vandalism

Advanced protection against external impacts such as vandalism is provided through the tempered Magic Glass featuring IK10-certification (European strength test).2 In addition, a gap between the Magic Glass and the LCD panel prevents LCD breakage when the protection glass is broken.

Built to Handle Extreme Temperatures

An innovative patent-pending self-cooling system with a heat exchanger equips this display to handle a wide operating temperature range, from -22° F to 122° F. And no supplemental heating or air conditioning unit is required, so you can save the expense.

Embedded Media Player

The embedded MagicInfo Player 6.0, backed by the powerful Tizen operating system, allows for easy content management and helps to ensure seamless content transitions and playback. All without the need for an external signage player or PC.

Samsung Circular Polarizing Technology

Samsung's circular polarizing technology allows content to be easily viewed even while wearing polarized sunglasses.

Processor & Chipset
Processor Type:
Cortex A72
Processor Speed:
1.70 GHz
Processor Core:
Quad-core (4 Core)
Memory
Standard Memory:
2.50 GB
Display & Graphics
Screen Size:
85"
Display Screen Type:
LCD
Display Resolution:
3840 x 2160
Backlight Technology:
Direct LED
Video
Scan Format:
2160p
Dynamic Contrast Ratio:
100,000:1
Brightness:
3300 Nit
Network & Communication
Ethernet:
Yes
Interfaces/Ports
USB:
Yes
HDMI:
Yes
Serial:
Yes
Number of USB 2.0 Ports:
1
Number of HDMI Inputs:
2
Software
Operating System:
  • Tizen 4.0
  • VDLinux
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Height:
46.7"
Width:
78.9"
Depth:
4.7"
Weight (Approximate):
302.03 lb
Miscellaneous
Package Contents:
  • OH85N Digital Signage Display
  • Quick Setup Guide
  • Regulatory Guide
  • Warranty Card
  • Remote Controller
  • Batteries
Warranty
Limited Warranty:
36 Month
Item Numbers
UNSPSC: 43211902
