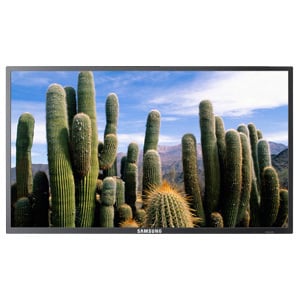

Samsung LH55CSPLBC/ZA Digital Signage Display

Part Number: LH55CSPLBC/ZA
Model: Parts

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size
55"
Display Screen Type
LCD
Display Resolution
1920 x 1080
DVI
Yes

Product Description:

  Samsung SyncMaster 550DX Digital Signage Display - 55" LCD - 1920 x 1080 - HDMI - DVI - Serial

Samsung Accessory Model Overview

Products and parts from Samsung.
Samsung LH55CSPLBC/ZA Digital Signage Display Overview

The Samsung 55" LFD is commercial-grade display, guarantee exceptional readability and reliability with professional DID panel. Designed to provide a powerful visual presence , ultra-high brightness ensures readability in any light conditions, and with Full HD resolution. 550DX guarantee information is presented to perfection 24 hours a day, 7 days a week for the duration of their extended lifetime. The RJ45 LAN MDC feature offer the powerful remote controlling with the present RS232C daisy chain MDC. p to 100 LFDs are able to connected as Digital Loop out of HDMI, DVI and Display port with equal picture quality of full HD guaranteed. Simple video matrix installation is possible with embedded video wall feature, supporting max. 10 x 10.

Display & Graphics
Screen Size:
55"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Interfaces/Ports
DVI:
Yes
VGA:
Yes
HDMI:
Yes
Composite Video:
Yes
DisplayPort:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial:
Yes
Physical Characteristics
Height:
29.2"
Width:
49.8"
Depth:
5.4"
Weight (Approximate):
78.26 lb
Miscellaneous
Package Contents:
  • SyncMaster 550DX Digital Signage Display
  • Quick Setup Guide
  • Warranty Card
  • Application CD
  • D-Sub Cable
  • Power Cord
  • Remote Control
  • Battery Accessories
Additional Information:

Panel:

  • 0.21 x 0.63mm Pixel Pitch Panel
  • 1209.6 x 680.4 mm Active Display Area
  • 700 cd/m2 Display Brightness
  • 4000:1 Contrast Ratio
  • 178°/178° Viewing Angle
  • 8ms Response Time (G to G)
  • 8 bit - 16.7 million Display Colors
  • 72% Color Gamut

Display:

  • 20000:1 Dynamic Contrast Ratio
  • 30 kHz - 81 kHz H-Scanning Frequency
  • 56Hz - 85Hz V-Scanning Frequency
  • 148.5 MHz Maximum Pixel Frequency

Power:

  • Power Type: Internal
  • 390Watts (Max.) / 353Watts (Typ.) Power Consumption (On Mode)
  • Under 2Watts Power Consumption(Sleep Mode)
  • Under 1Watts Power Consumption (Off Mode)

Feature:

  • Lamp Error Detection
  • Brightness Sensor
  • Anti Retention
  • Temperature Sensor
  • Built in Speaker (10Watts + 10Watts)
  • Plug and Play (DDC2B)
  • PIP/PBP
  • Pivot Display
  • Button Lock
  • Digital Daisy Chain
  • Smart Scheduling
  • Smart F/W Update
Certifications & Standards:

Safety Certification UL (USA) UL 60950-1 CSA (Canada) CSA C22.2 No. 60950-1 TUV (Germany) EN60950-1 NEMKO (Norway) EN60950-1 KC (Korea) K60950-1 CCC (China) GB 4943-2001 PSB (Singapore) IEC60950-1 GOST (Russia) IEC60950-1, EN55022 SIQ (Slovenia) IEC60950-1, EN55022 PCBC (Poland) IEC60590-1, EN55022 NOM (Mexico) NOM-019-SCFI-1993 IRAM (Argentina) IEC60950-1 SASO (Saudi Arabia) IEC60950-1

EMC Certification FCC(USA) FCC part 15, Subpart B Class BCE(Europe) EN55022, EN55024VCCI(Japan) V-3(CISpR22) KCC(Korea) KN22, KN24BSMI(Taiwan) CNS13438(CISpR22) C-Tick(Australia) AS/NZS3548(CISpR22) CCC(China) GB 9254-2008, GB 17625.1-2003

Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
ENERGY STAR
Warranty
Limited Warranty:
90 Day
Item Numbers
UNSPSC: 43211902
