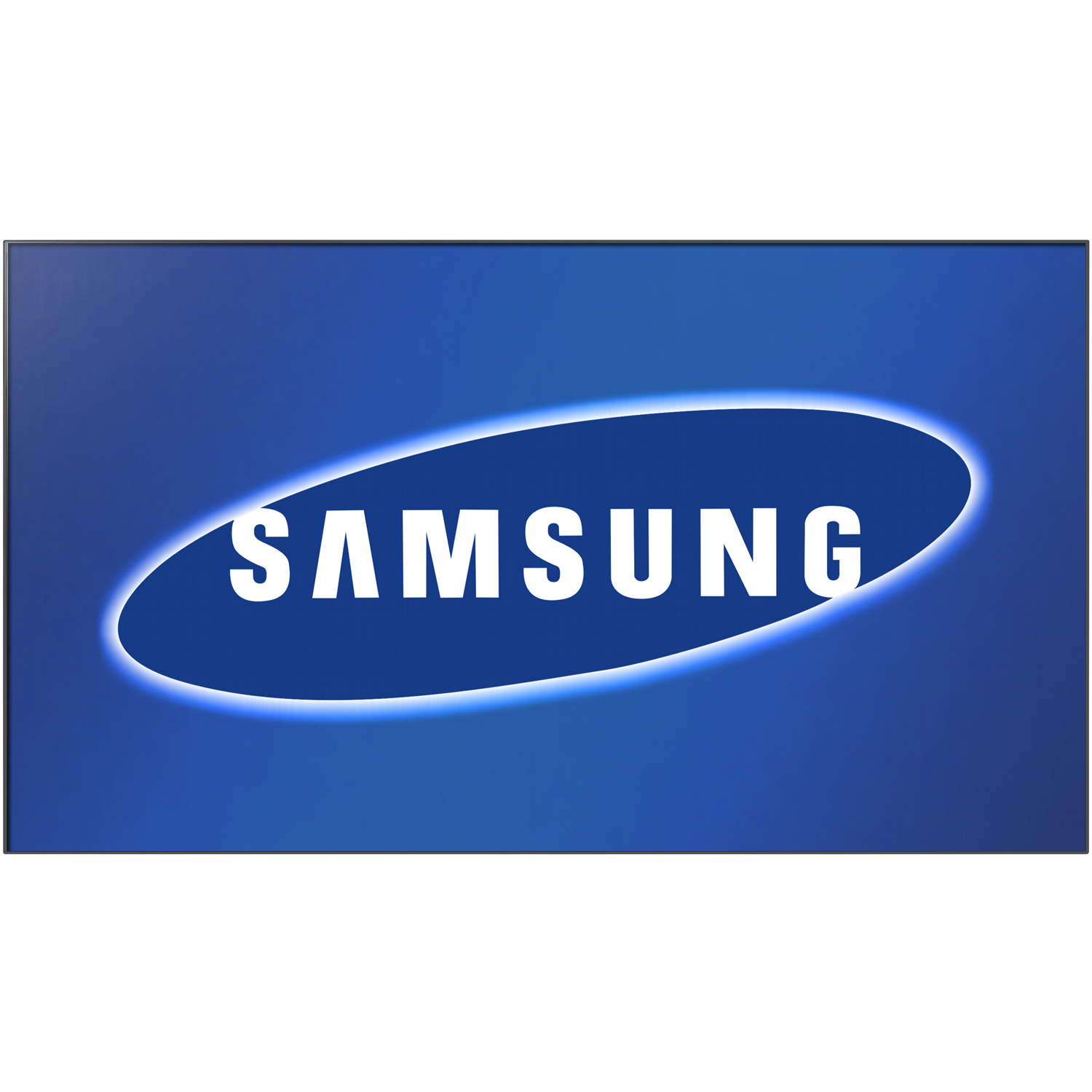

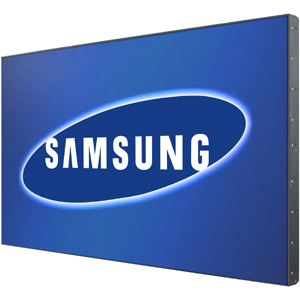

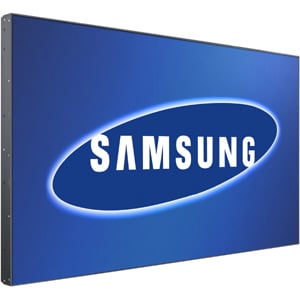

Samsung LH55CPPLBB/ZA Digital Signage Display

The Samsung LH55CPPLBB/ZA Digital Signage Display has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Samsung - Samsung UD55A 55" Full HD Direct LED LCD Monitor - 16:9 - 1920 x 1080 - 16.7 Million Colors - 700 Nit - 8 ms - 60 Hz Refresh Rate - DVI - HDMI - VGA - DisplayPort
  • Allows pixels to adjust and accommodate moving scenes and video games with 8 ms response time
  • 16:9 widescreen resolution perfect for watching movies, playing video games and getting on with office work
  • Direct LED backlighting technology for a bright and sharp display
  • View your content easily in well lit areas with 700 Nit brightness
  • HDMI interface allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras and many others for the ultimate true high-definition display
  • DisplayPort interface that transmits both audio and video signals through a single connection to deliver versatile performance
  • VESA mount compatibility allows you to mount the display on a wall or with a stand depending on your specific needs
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Samsung Parts Accessory Model Overview
Products and parts from Samsung.
Samsung LH55CPPLBB/ZA Digital Signage Display Overview

The Samsung UD55A LED LFD is the spectacular display designed specifically to deliver even the largest images with clarity and as less image loss possible with its super-slim bezel. When the video wall is assembled, bezel-to-bezel rounds up to only 5.5 mm, bringing nearly seamless experiences into your business. Unlike many of the video wall available in the market, the UD Series provides Full HD Resolution and easy installation through our unique LFD Accessories. Digital loop out through various ports allow up to 100 LFDs to display equal picture quality throughout the whole video wall. Remote controlling is supported through RJ45 LAN MDC feature along with the RS232C daisy chain MDC.

Technical Information
Number of Screens:
1
Screen Size Class:
55"
Viewable Screen Size:
55"
Screen Mode:
Full HD
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Display Orientation:
Landscape/Portrait
Mount Type:
Wall Mountable
Backlight Technology:
Direct LED
Features:
  • Lamp Error Detection
  • Anti-retention
  • Temperature Sensor
  • Picture in Picture
  • Video Wall
  • Button Lock
  • Smart Scheduling
Video
Maximum Resolution:
1920 x 1080
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
3,500:1
Brightness:
700 Nit
Interfaces/Ports
Network (RJ-45):
Yes
DVI:
Yes
HDMI:
Yes
VGA:
Yes
Composite Video:
Yes
DisplayPort:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
250 W
Standby Power Consumption:
1 W
Off-Mode Power Consumption:
1 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
600 x 400
Height:
27"
Width:
47.8"
Depth:
3.8"
Weight (Approximate):
52.80 lb
Miscellaneous
Package Contents:
  • UD55A Widescreen LCD Monitor
  • Quick Setup Guide
  • Warranty Card
  • Application CD
  • D-Sub Cable
  • Power Cord
  • Remote Controller
  • Batteries
Certifications & Standards:

EMC:

  • FCC: Part 15, Subpart B class B
  • CE: EN55022, EN55024
  • VCCI: V-3 (CISPR22)
  • KCC: KN22, KN24BSMI
  • CNS13438 (CISPR22)
  • C-Tick
  • AS / NZS3548 (CISPR22)
  • CCC: GB9254-2008, GB17625.1-2003

Safety:

  • UL: UL 60950-1
  • CSA: CSA C22.2 No.60950-1
  • TUV: EN60950-1
  • NEMKO: EN60950-1
  • KC: K60950-1
  • CCC: GB 4943-2001
  • PSB: IEC60950-1
  • GOST: IEC60950-1, EN55022SIQ
  • IEC60950-1, EN55022
  • PCBC: IEC60590-1, EN55022
  • NOM: NOM-019-SCFI-1993
  • IRAM: IEC60950-1
  • SASO: IEC60950-1
Platform Supported:
PC
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • ENERGY STAR 5.0
  • RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211902
