Screen Size:
46"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Graphics Modes:
WXGA
Samsung Parts Accessory Model Overview
Products and parts from Samsung.

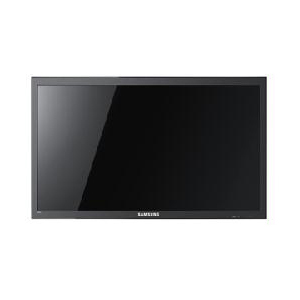

Samsung LH46LBPLBC/ZA Digital Signage Display Overview
The Samsung EX-Series professional LCD displays (400EX, 400EXn, 460EX, 460EXn, 550EX, 550EXn) are an incredible 1.6" thin. They're the thinnest, lightest 40" , 46" and 55" professional LCD displays from Samsung, thanks to LED backlight technology. LED is also more energy-efficient, consuming 30% - 50% less energy than a similarly sized conventional CCFL backlight display. A 120 Hz panel refresh rate enables sharp scrolling type, while 10,000:1 dynamic contrast ratio delivers deeper, more dramatic dark tones and brighter, more striking light tones.
Display & Graphics
Interfaces/Ports
DVI:
Yes
VGA:
Yes
HDMI:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial:
Yes
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Physical Characteristics
Height:
25.8"
Width:
42.6"
Depth:
1.6"
Weight (Approximate):
37.48 lb
Miscellaneous
Package Contents:
- 460EX Digital Signage Display
- Quick Setup Guide
- Warranty Card
- Application CD
- D-Sub Cable
- Power Cord
- Remote Controller
- Batteries
Additional Information:
- LED Backlight
- Refresh rate: 120 Hz
- Pixel pitch(mm): 0.17675 (H) x 0.53025 (V)
- Brightness: 450 cd/m²
- Contrast ratio: 5000:1
- Viewing angle: 178°/178°
- Response time: 9 ms
Certifications & Standards:
Safety:
- UL (USA)
- UL 60950-1CSA (Canada)
- CSA C22.2 No. 60950-1 TUV (Germany)
- EN60950-1NEMKO (Norway)
- EN60950-1 KC (Korea)
- K60950-1 CCC (China)
- GB 4943-2001PSB (Singapore)
- IEC60950-1GOST (Russia)
- IEC60950-1
- EN55022SIQ (Slovenia)
- IEC60950-1
- EN55022PCBC (Poland)
- IEC60590-1
- EN55022NOM (Mexico)
- NOM-019-SCFI-1993IRAM (Argentina)
- IEC60950-1SASO (Saudi Arabia)
- IEC60950-1
EMC:
- FCC (USA) FCC Part 15
- Subpart B class BCE (Europe) EN55022
- EN55024VCCI (Japan) V-3 (CISPR22) KCC (Korea)
- KN22
- KN24BSMI (Taiwan)
- CNS13438 (CISPR22) C-Tick (Australia)
- AS / NZS3548 (CISPR22) CCC(China)
- GB 9254-2008
- GB 17625.1-2003
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
ENERGY STAR
Item Numbers
EAN:
0729507813011
UNSPSC:
43211902
