Processor Manufacturer:
AMD
Processor Type:
Athlon X2
Samsung Parts Accessory Model Overview
Products and parts from Samsung.

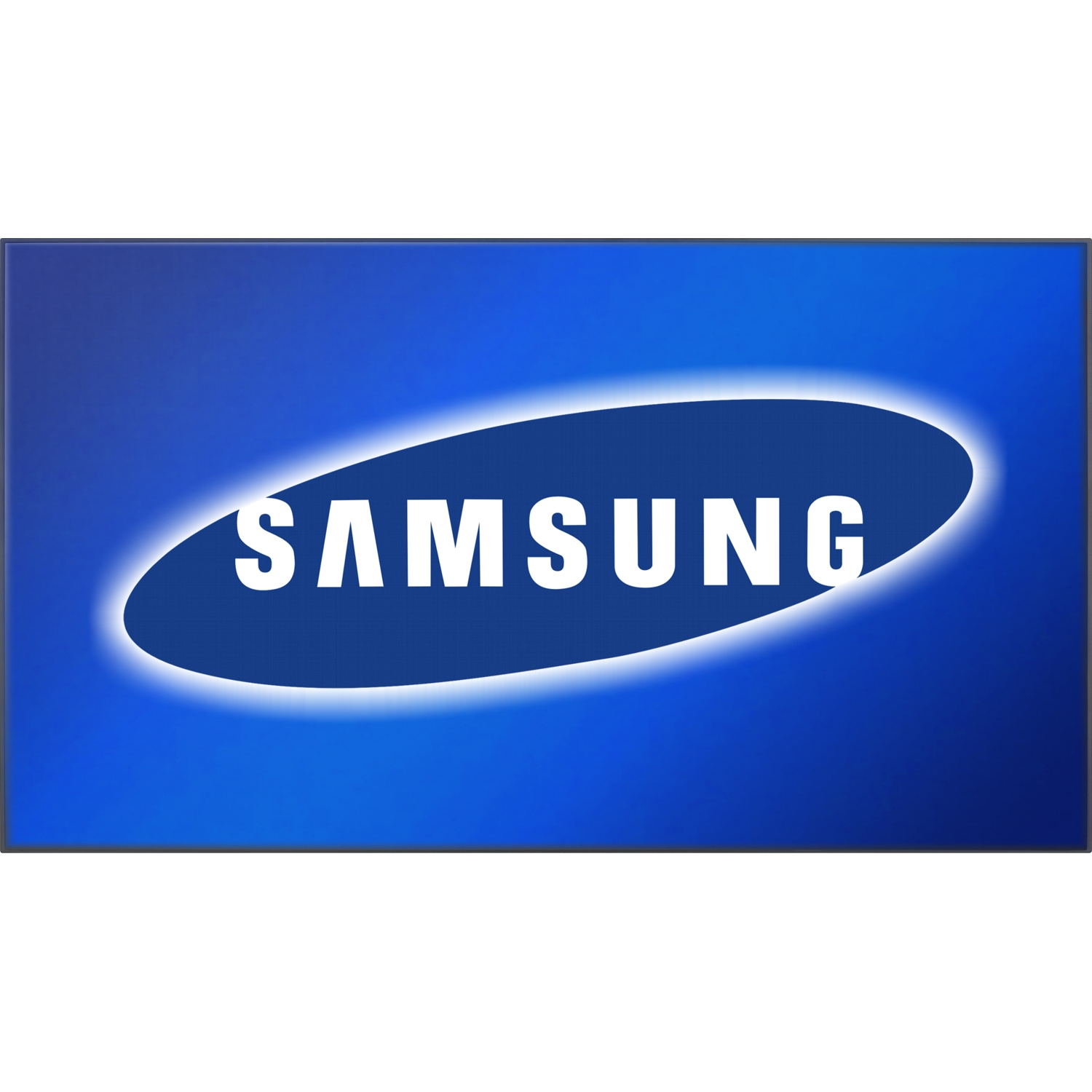

Samsung LH46CKTLBB/ZA Digital Signage Display Overview
Keep the focus on your content being displayed, not the frame. The UT-2 Series features a bezel measuring just 2.4mm on the bottom and right, and 4.3mm on the top and left (for a total bezel width of 6.7mm). It's Samsung's thinnest large-format display bezel. So you can create the ultimate video wall with screens that are seamlessly connected and picture perfect.
Processor & Chipset
Memory
Standard Memory:
1 GB
Memory Technology:
DDR3 SDRAM
Storage
Total Hard Drive Capacity:
40 GB
Display & Graphics
Screen Size:
46"
Display Screen Type:
LCD
Display Resolution:
1366 x 768
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
DVI:
Yes
VGA:
Yes
Component Video:
Yes
Composite Video:
Yes
DisplayPort:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial:
Yes
Software
Operating System:
Windows Embedded Standard 2009
Physical Characteristics
Height:
22.8"
Width:
40.4"
Depth:
5.1"
Weight (Approximate):
61.29 lb
Miscellaneous
Package Contents:
- SyncMaster 460UTn-2 Digital Signage Display
- Quick Setup Guide
- Warranty Card
- Application CD
- D-Sub Cable
- Power Cord
- Remote Controller
- Batteries
- Panel Bracket
Additional Information:
- Media Player
- Typical Power Consumption: 280 Watts
Operation:
- Operating Temperature: 10?~ 40?
- Operating Humidity: 10~80%
Display:
- Image Aspect Ratio: 16:9
- Pixel Response Time: 8 ms
- Contrast: 3000:1
- Brightness: 700 kcd/m2
- Dynamic Contrast: 5000:1
- Viewing angle: 178°
Features:
- Plug & Play
- Lamp Error Detection
- Anti Retention
- Temperature Sensor
- RS232C/RJ45 MDC
- PIP/PBP
- Video Wall (10x10)
- Pivot
- Display
- Button Lock
- Digital Daisy Chain
- Smart Scheduling
- Smart F/W Update
- MagicInfo S/W
Certifications & Standards:
Safety:
- UL (USA) UL 60950-1 CSA (Canada) CSA C22.2 No. 60950-1 TUV (Germany) EN60950-1 NEMKO (Norway) EN60950-1 KC (Korea) K60950-1 CCC (China) GB 4943-2001 PSB (Singapore) IEC60950-1 GOST (Russia) IEC60950-1, EN55022 SIQ (Slovenia) IEC60950-1, EN55022 PCBC (Poland) IEC60590-1, EN55022 NOM (Mexico) NOM-019-SCFI-1993 IRAM (Argentina) IEC60950-1 SASO (Saudi Arabia) IEC60950-1
EMC:
- FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea) KN22, KN24 BSMI (Taiwan) CNS13438 (CISPR22) C-Tick (Australia) AS/NZS3548 (CISPR22) CCC(China) GB 9254-2008, GB 17625.1-2003
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
ENERGY STAR
Item Numbers
UNSPSC:
43211902
