Screen Size:
46"
Display Screen Type:
LCD
Display Resolution:
1366 x 768
Samsung Parts Accessory Model Overview
Products and parts from Samsung.

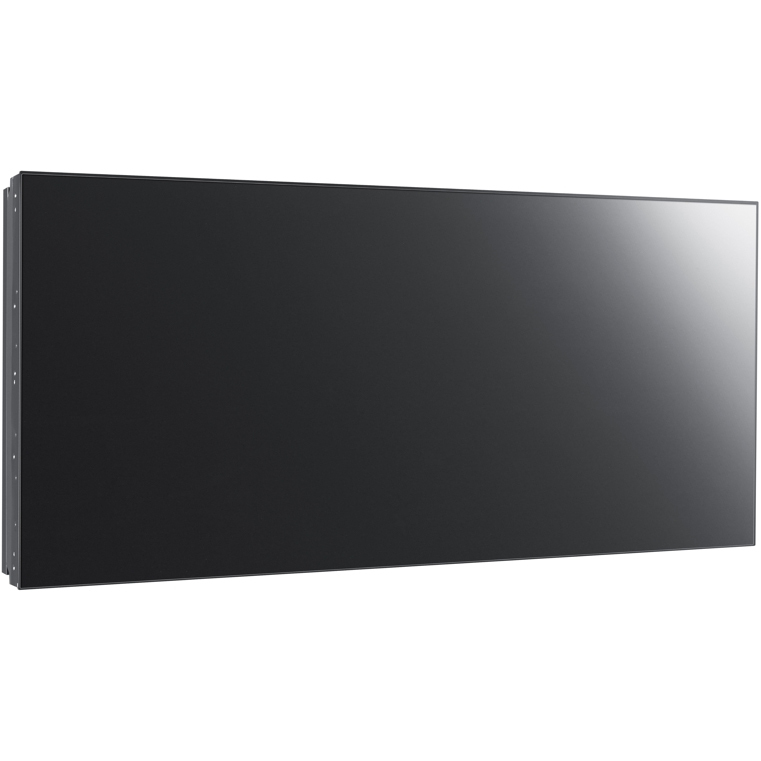

Samsung LH46CBPLBB/ZA Digital Signage Display Overview
Keep the focus on your content being displayed, not the frame. The UT-B Series features a bezel measuring just 2.4mm on the bottom and right, and 4.3mm on the top and left (for a total bezel width of 6.7mm). It's Samsung's thinnest large-format display bezel. So you can create the ultimate video wall with screens that are seamlessly connected and picture perfect.
Display & Graphics
Interfaces/Ports
DVI:
Yes
VGA:
Yes
HDMI:
Yes
Component Video:
Yes
Composite Video:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Serial:
Yes
Software
Operating System:
Windows Embedded Standard 2009
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Physical Characteristics
Height:
22.8"
Width:
40.4"
Depth:
5.1"
Weight (Approximate):
45.90 lb
Miscellaneous
Additional Information:
Display:
- Pixel Pitch: 0.7455(H) * 0.7455(V)
- Contrast Ratio: 4500:1
- Dynamic Contrast Ratio:10000:1
- Response Time: 8ms
- Brightness:450 cd/m2
- View Angle: 178°/178°
- Power Consumption: 270W(max) / 240W (typ)
- Mechancial Specs: 600 x 400 mm VESA Mount Standard
- Remote control, infrared
Operation:
- 10°C~ 40°C Operating Temperature
- 10~80% Humidity
Features:
- Lamp Error Detection
- Anti Retention
- Temperature Sensor
- RS232C/RJ45 MDC
- PIP/PBP
- Video Wall(10x10)
- Pivot
- Display
- Button Lock
- Digital Daisy Chain
- Smart Scheduling
- Smart F/W update
- MagicInfo S/W
Certifications & Standards:
- FCC Class B certified
- UL
- VCCI
- GOST
- DDC-2B
- EN55022
- NOM
- SASO
- CISPR 22
- CCC
- FCC Part 15
- FCC
- IRAM
- UL 60950-1
- IEC 60950-1
- EN 60950-1
- CSA C22.2 No. 60950-1
- GB 4943
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
ENERGY STAR
Item Numbers
UNSPSC:
43211902
