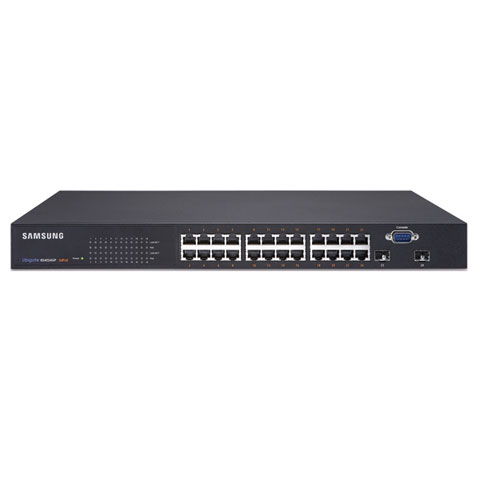

Samsung iES-4024GD/XAR Ethernet Switch

The Samsung Ubigate iES4000 Series Ethernet Switches provide a robust and cost-effective networking solution for businesses looking to enhance connectivity and communication across their organizations. These switches integrate seamlessly with Samsung OfficeServ telephony systems, ensuring optimal performance for voice and video communications over IP. With up to 24 ports available and Power over Ethernet (PoE) capabilities, these switches eliminate the need for additional power supplies, reducing overall costs for businesses.
Key Features:

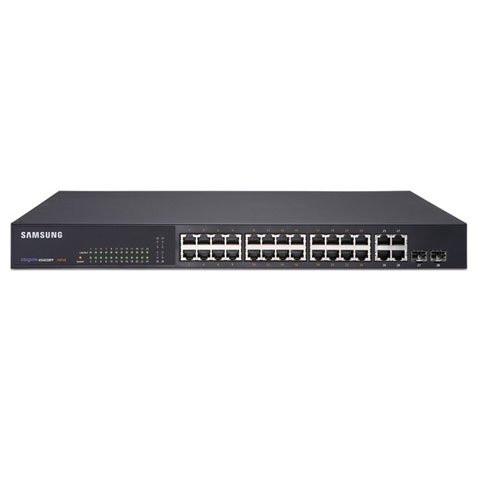

• 24 10/100 BASE-T ports for efficient connectivity (iES4028F and iES4028FP models)
• Power over Ethernet (PoE) support for simplified device deployment
• Clustering capabilities allowing management of up to 36 switches from a single IP address
• High Performance with 12.8 Gbps switch fabric
• Advanced Security Features like MAC address filtering and Access Control Lists

Specifications:

• Ports:
  • iES4028FP: 24 10/100 BASE-T ports with PoE
  • iES4028F: 24 10/100 BASE-T ports
  • iES4024GP: 22 10/100/1000 BASE-T ports with PoE
  • Gigabit combo ports available
  • 1 Console port per model
• Switch Fabric: 12.8Gbps
• Switching Database: 8K MAC address entries
• Dimensions:
  • iES4028FP: 4.3 x 44 x 33 cm
  • iES4028F: 4.3 x 44 x 32 cm
• Power Consumption:
  • iES4028FP: 225W (45W system, 180W PoE)
  • iES4024GP: 30W (max output: 7.5W per port)
