Samsung GV-M24816UL CCTV Camera Housing

Part Number: GV-M24816UL
Model: GV-HOUS1

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Height
10"
Width
9"
Depth
4.5"
Package Contents
GV-M24816UL Power SupplySpare Fuses

Product Description:

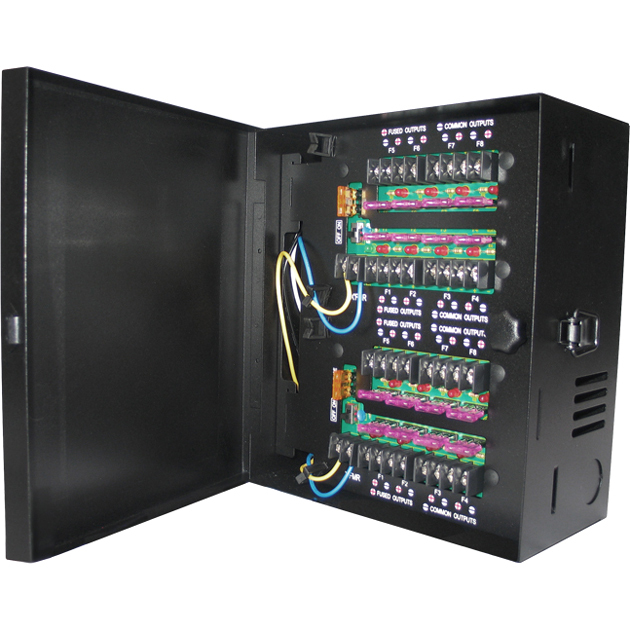

  Power Supply (24VAC at 8 AMP UL, 16 Fused Outpost)

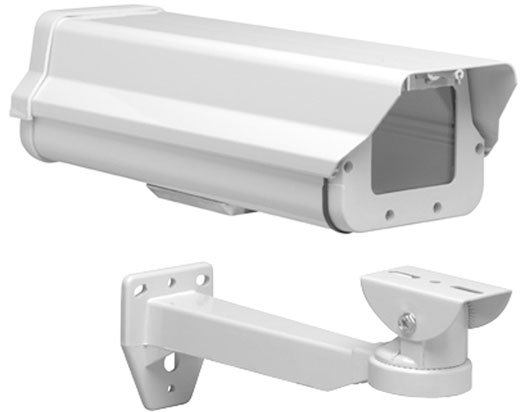

Samsung GV-HOUS1 CCTV Camera Housing Model Overview

The GV-HOUS1 is designed as a medium sized enclosure. It can accommodate all CCD cameras with a length up to 9". Constructed of extruded aluminum and equipped with a hinged, latching cover, this housing is well served for general surveillance applications. Equipped with a removable sled the cameras can be set up, adjusted and then re-mounted in the housing. The front cover hinge makes adjustment and service to the camera very accessible.
Physical Characteristics
Height:
10"
Width:
9"
Depth:
4.5"
Miscellaneous
Package Contents:
  • GV-M24816UL Power Supply
  • Spare Fuses
Additional Information:
  • Input: 115V AC 50/60Hz, 1.8 amp
  • Sixteen 24 V AC individually fused outputs
  • 8 amps (200VA) supply current
  • Output fuses are rated at 3 amp/115V AC
  • Two main fuses are rated at 5 amp/115V AC
  • Surge protection
  • AC power LED indicator
  • Power ON/OFF switch
  • Unit maintains camera synchronization
  • Ease of installation saves time and eliminates costly labor
  • UL listed Commercial CCTV equipment (UL 2044)
  • Blade type fuses (automotive type)
Item Numbers
UNSPSC: 39121004
