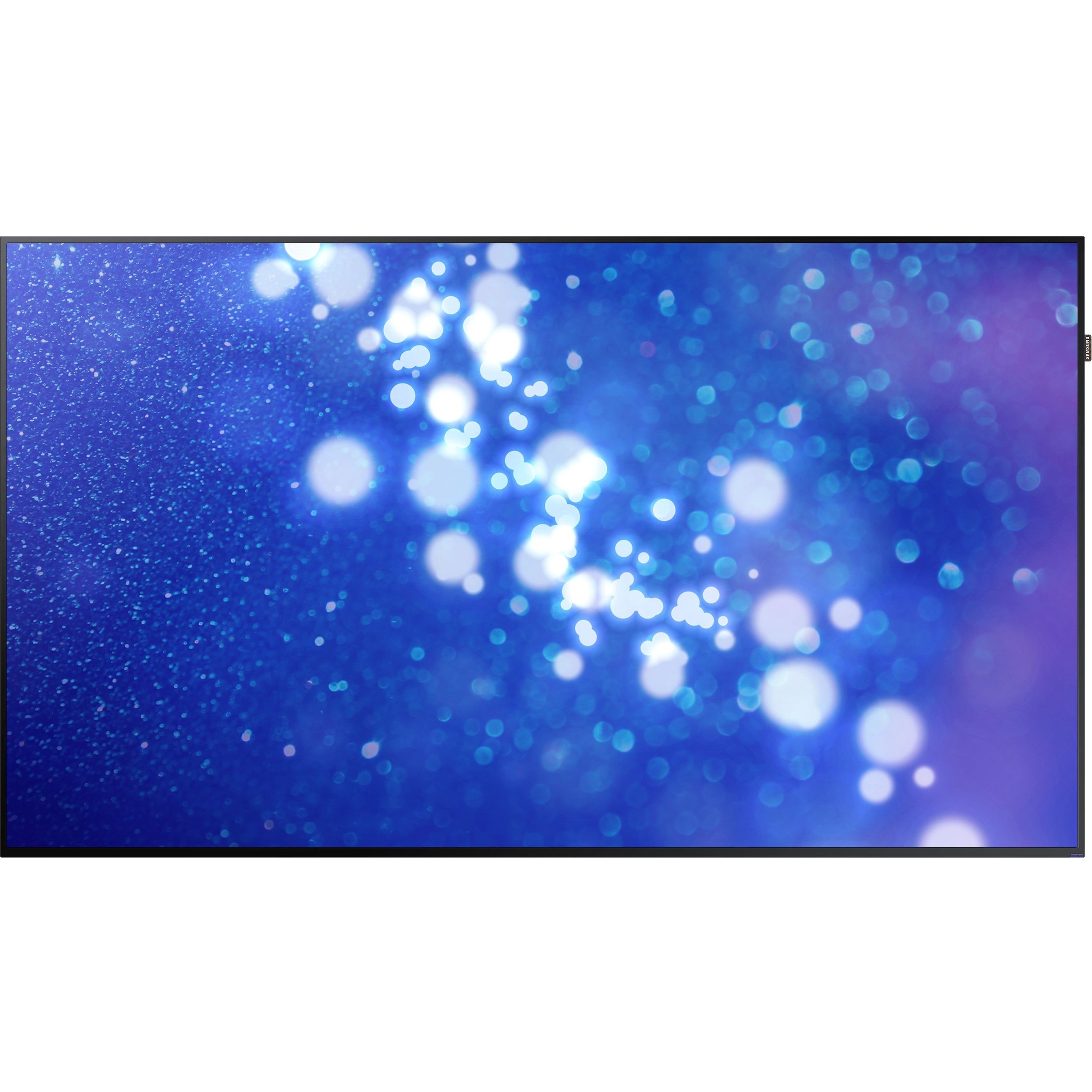

Samsung DM75E Digital Signage Display

The Samsung DM75E Digital Signage Display has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Samsung DM-E Series - Samsung DM75E - DM-E Series 75" Slim Direct-Lit LED Display for Business - 75" LCD - Touchscreen - ARM Cortex A9 1 GHz - 1.50 GB DDR3 SDRAM - 1920 x 1080 - Direct LED - 380 Nit - 1080p - HDMI - USB - DVI - Serial - Wireless LAN - Ethernet - Black
  • Digital Signage Display - Ideal for rack, passageway, booth or display counter
  • Cortex A9 1 GHz processor executes heavy and power-hungry applications seamlessly with efficient-power
  • With its 75" screen size and 380 Nit brightness, this digital signage system is perfect for displaying high-impact information in hotels, eateries, and other businesses
  • Experience luminescent visual images with LCD display
  • Features full 1920 x 1080 HD resolution enabling sharp and clear images
  • Direct LED backlighting technology enabled for a bright and sharp display
  • Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images
Read More
Discontinued Need Assistance?
Add to Quote

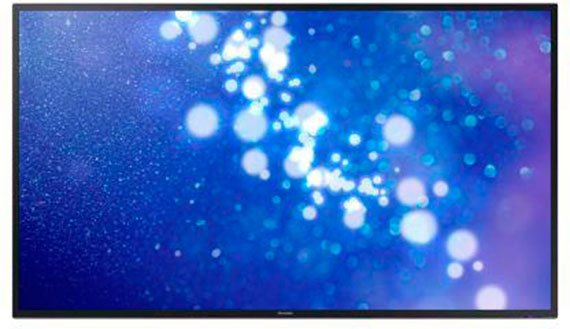

Samsung DM-E Series Digital Signage Display Model Overview
Samsung's DM-E Series delivers 24/7 reliability on a large 65" or 75" screen for continuous operation. Display content without an external PC thanks to an upgraded Samsung SMART Signage Platform (SSP) and full range of connectivity options. All combined with a sleek industrial design and slim 2.2" chassis depth.
Samsung DM75E Digital Signage Display Overview
  • Allows presenter and participants to interact and exchange content between e-Board and the devices being used by the audience
  • Enables you to engage your content with a stylus or simple flicks and gestures of your hand
  • Offers the ability to draw and save on a range of sources which gives you more options for using a wider spectrum of content in your presentation
  • Provides full control of your presentation through user-friendly menus and file management tools
  • Reduces set-up time with a portable solution that doesn't require a dedicated PC

An integrated solution for your business or educational space that allows you to unleash the potential of your presentations

As we face an era of perpetual innovation and information overload, communication needs to evolve alongside this growth and act as a beacon of light to hold our attention. Particularly when it comes to closing deals in business meetings or deeply connecting with the minds of the future in educational settings. Few environments stand to benefit more from interactive whiteboard solutions than corporate boardrooms and classrooms, where messages need to sink deep into their intended audience to make lasting impacts. Samsung has brought their e-Board Solution to these spaces and continues to tailor the user experience to achieve the desired outcomes that the user is seeking.

Building a productive workplace that ensures optimum levels of communication and collaboration

Samsung e-Board acts as a conduit to bring efficiency to the workplace, through fostering an atmosphere for enhanced communication and immersive collaboration. With e-Board in the boardroom, brainstorming and idea-sharing have never been better supported through its interactive display that facilitates rapid idea generation, retention and application. Deep dissemination of product or service knowledge between product development teams and sales teams can now be achieved through collaborative exchanges involving IWB and a captive audience that can now find themselves fully interactive, while never having to leave the comfort zone beyond their laptops and mobile devices.
Technical Information
Features:
  • Ambient Light Sensor
  • Media Player
  • Temperature Sensor
  • Auto Power & Source Recovery
  • Plug and Play
  • Picture in Picture
  • Picture by Picture (PbP)
  • Image Rotation
  • Button Lock
  • Video Wall
  • Schedule
  • Progressive Scan
Processor & Chipset
Processor Manufacturer:
ARM
Processor Type:
Cortex A9
Processor Speed:
1 GHz
L2 Cache:
1 MB
Memory
Standard Memory:
1.50 GB
Memory Technology:
DDR3 SDRAM
Memory Card Supported:
SD
Display & Graphics
Screen Size:
75"
Display Screen Type:
LCD
Touchscreen:
Yes
Display Resolution:
1920 x 1080
Graphics Modes:
Full HD
Response Time:
4 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
Direct LED
Image Formats:
  • JPEG
  • PNG
Audio
Audio Formats:
AC3
Number of Speakers:
2
Speakers:
Yes
RMS Output Power:
20 W
Sound System:
DTS
Video
Video Formats:
  • MPEG-1
  • MPEG-2
  • H.264/MPEG-4 AVC
  • VC-1
  • MPEG
Scan Format:
1080p
Standard Refresh Rate:
60 Hz
Frame Refresh Rate:
240 Hz
Dynamic Contrast Ratio:
50,000:1
Native Contrast Ratio:
5,000:1
Brightness:
380 Nit
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Wireless LAN:
Yes
Interfaces/Ports
USB:
Yes
USB Standard:
USB 2.0
DVI:
Yes
VGA:
Yes
HDMI:
Yes
Component Video:
Yes
Composite Video:
Yes
DisplayPort:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial:
Yes
Software
Operating System:
Linux
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Consumption:
308 W
Physical Characteristics
Color:
Black
VESA Mount Compatible:
Yes
VESA Mount Standard:
400 x 400
Mount Type:
Ceiling Mount
Height:
37.8"
Width:
66"
Depth:
2.3"
Weight (Approximate):
75.18 lb
Miscellaneous
Package Contents:
  • DM75E - DM-E Series 75" Slim Direct-Lit LED Display for Business
  • Quick Setup Guide
  • Regulatory Guide
  • Warranty Card
  • D-Sub cable
  • Power Cord
  • Remote Controller
  • Batteries
  • RS232C(IN) adapter
  • COVER-JACK
Certifications & Standards:
Safety:
  • CB (Europe) : IEC60950-1/EN60950-1
  • CCC (China) : GB4943.1-2011
  • PSB (Singapore) : PSB+IEC60950-1
  • NOM (Mexico) : NOM-001-SCFI-1993
  • IRAM (Argentina ) : IRAM+IEC60950-1
  • SASO (Saudi Arabia ) : SASO+IEC60950-1
  • BIS(India) : IEC60950-1 / IS13252
  • NOM(Mexico) : Tuner : NOM-001-SCFI-1993, Tunerless : NOM-019-SCFI-1998
  • KC(Korea) : K 60950-1
  • EAC(Russia) : EAC+IEC60950-1
  • INMETRO(Brazil) : INMETRO+IEC60950-1
  • BSMI(Taiwan) : BSMI+IEC60950-1
  • RCM(Australia) : IEC60950-1/AS/NZS 60950-1
  • CSA (Canada) : cUL
  • UL(USA) : cUL60950-1
  • TUV (Germany) : CE
  • NEMKO (Norway) : CE
EMC:
  • FCC (USA) : Part 15, Subpart B Class A
  • CE (Europe) : EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003
  • VCCI (Japan) : VCCI V-3
  • C-Tick (Australia) : AS/NZS CISPR22:2009
  • CCC(China) : GB9254-2008, GB17625.1-2012
  • GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97,
  • EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003
Environmentally Friendly:
Yes
Environmental Certification:
TÜV
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 8806086897587
EAN: 8806086897587
UNSPSC: 43211902
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Samsung DM75E Digital Signage Display is also known as DM75E
