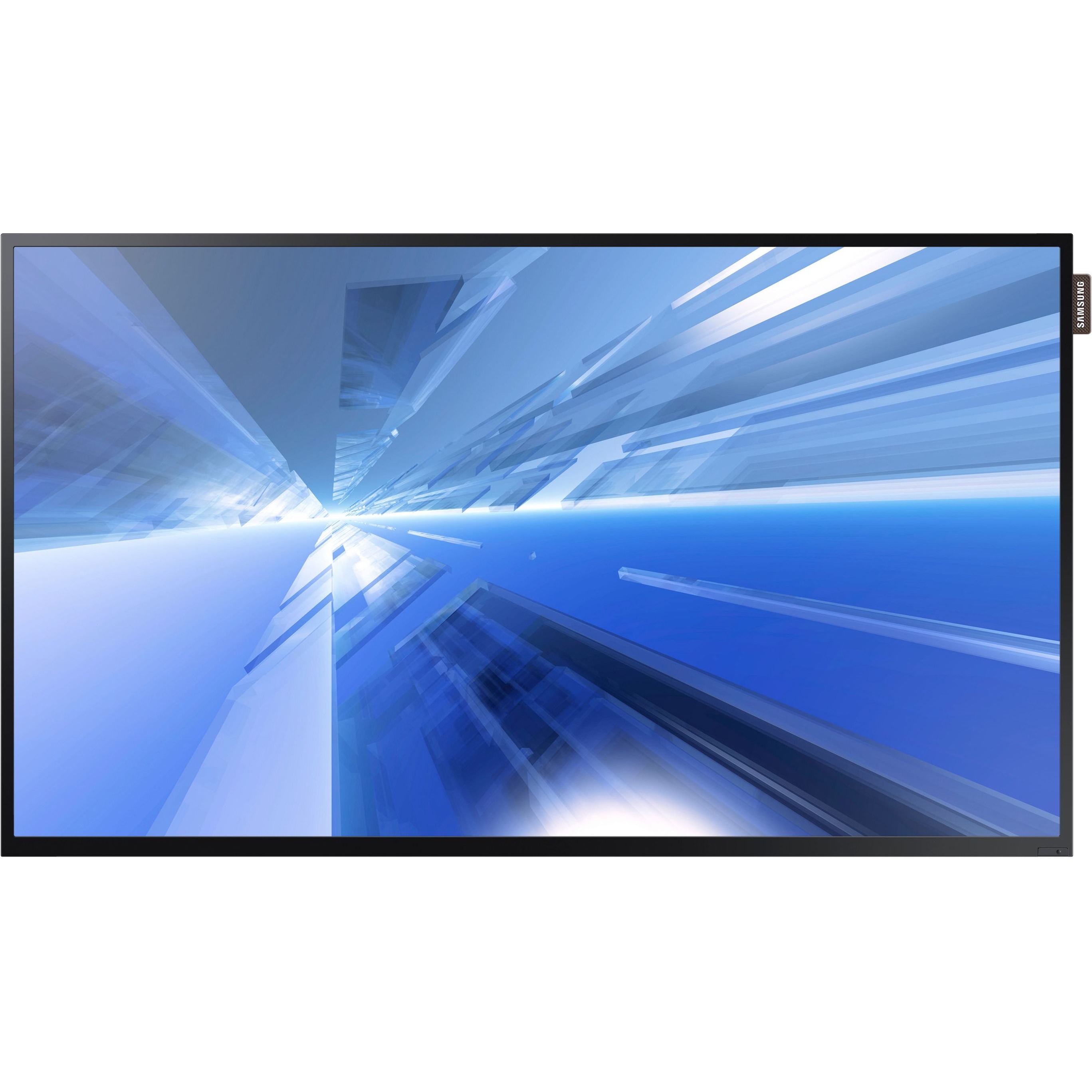

Samsung DB32E Digital Signage Display

Part Number: DB32E
Model: DB-E Series
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Features
Ambient Light SensorProgressive ScanMedia PlayerTemperature SensorPivot DisplayButton LockAuto Power & Source RecoveryPlug and PlayPicture by Picture (PbP)Picture in PictureTV TunerImage RotationLandscape/Portrait ViewableScheduleUltra Slim
Processor Manufacturer
ARM
Processor Type
Cortex A9
Processor Speed
1 GHz

Product Description:

  Samsung DB32E - DB-E Series 32" Slim Direct-Lit LED Display - 32" LCD - ARM Cortex A9 1 GHz - 1.50 GB DDR3 SDRAM - 1920 x 1080 - Direct LED - 350 Nit - 1080p - HDMI - USB - DVI - Serial - Wireless LAN - Ethernet - Black
Explore all Samsung DB-E Series Digital Signage Displays
Add to Quote
Samsung DB32E Digital Signage Display
Samsung DB32E Digital Signage Display
Samsung DB32E Digital Signage Display
Samsung DB32E Digital Signage Display
Samsung DB32E Digital Signage Display
Samsung DB32E Digital Signage Display
Samsung DB32E Digital Signage Display
Samsung DB32E Digital Signage Display
Samsung DB32E Digital Signage Display Samsung DB32E Digital Signage Display Samsung DB32E Digital Signage Display Samsung DB32E Digital Signage Display Samsung DB32E Digital Signage Display Samsung DB32E Digital Signage Display Samsung DB32E Digital Signage Display Samsung DB32E Digital Signage Display

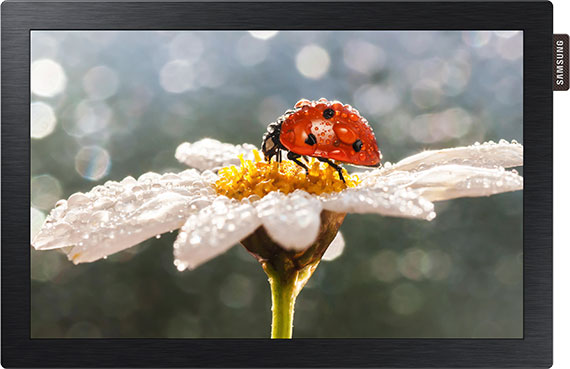

Samsung DB-E Series Digital Signage Display Model Overview

Samsung's DB-E Series provides an all-in-one solution to manage digital signage content without connecting external devices. The sleek 10.1" touchscreen display is perfect for small placements. It also includes a built-in power supply or POE power options. And with 5 simultaneous touch points, you can create a dynamic customer experience.
Samsung DB32E Digital Signage Display Overview
Enhanced System-on-Chip Performance with a Quad Core CPU

Powered by a System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined solution to reduce TCO for digital signage deployments, through savings in hardware, installation and operating costs.

Sleek Industrial Design

The 10.5mm bezel provides a sleek, elegant look that can be polished with optional customizable bezel trim kits in matte black or white. And the stylish, ultra-slim 2.0" chassis helps simplify installation while meeting ADA compliance requirements.

Slim Direct-Lit LED Backlight

Achieve sharp, detail-rich images and crisp, legible type with this slim direct-lit display featuring 1920 x 1080 Full HD resolution with 350 nits brightness and a 5,000:1 contrast ratio.

Optional Touch Overlay

The optional touch overlay accessory delivers a cost effective, PC-less touch solution that transforms your display into an interactive whiteboard with up to 10 simultaneous touchpoints. Create more collaborative presentations or a dynamic customer experience with tangible results for your business.

Built-In Wi-Fi®

Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.

MagicInfo S3 Digital Signage Software

Create playlists, set playback schedules and publish content directly to the display with this software. Most traditional file formats are supported including RSS feed and live web pages.

Technical Information
Features:
  • Ambient Light Sensor
  • Progressive Scan
  • Media Player
  • Temperature Sensor
  • Pivot Display
  • Button Lock
  • Auto Power & Source Recovery
  • Plug and Play
  • Picture by Picture (PbP)
  • Picture in Picture
  • TV Tuner
  • Image Rotation
  • Landscape/Portrait Viewable
  • Schedule
  • Ultra Slim
Processor & Chipset
Processor Manufacturer:
ARM
Processor Type:
Cortex A9
Processor Speed:
1 GHz
L2 Cache:
1 MB
Memory
Standard Memory:
1.50 GB
Memory Technology:
DDR3 SDRAM
Memory Card Supported:
SD
Display & Graphics
Screen Size:
32"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Graphics Modes:
Full HD
Response Time:
6 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
Direct LED
Image Formats:
  • JPEG
  • PNG
Audio
Audio Formats:
AC3
Number of Speakers:
1
Speakers:
Yes
RMS Output Power:
10 W
Sound System:
DTS
Video
Video Formats:
  • MPEG-1
  • MPEG-2
  • H.264/MPEG-4 AVC
  • VC-1
  • MPEG
Scan Format:
1080p
Standard Refresh Rate:
60 Hz
Dynamic Contrast Ratio:
50,000:1
Native Contrast Ratio:
5,000:1
Brightness:
350 Nit
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Wireless LAN:
Yes
Interfaces/Ports
USB:
Yes
USB Standard:
USB 2.0
DVI:
Yes
VGA:
Yes
HDMI:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial:
Yes
Software
Operating System:
Linux
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Consumption:
77 W
Physical Characteristics
Color:
Black
VESA Mount Compatible:
Yes
VESA Mount Standard:
200 x 200
Mount Type:
Wall Mountable
Height:
16.5"
Width:
28.4"
Depth:
2"
Weight (Approximate):
10.60 lb
Miscellaneous
Package Contents:
  • DB32E - DB-E Series 32" Slim Direct-Lit LED Display
  • Quick Setup Guide
  • Regulatory Guide
  • Warranty Card
  • D-Sub cable
  • Power Cord
  • Remote Controller
  • Batteries
  • RS232C(IN) adapter
  • Cover-Jack
  • 1 x Screw (M3L8)
  • 4 x Screws(M4L8)
Certifications & Standards:
Safety:
  • CB (Europe) : IEC60950-1/EN60950-1
  • CCC (China) : GB4943.1-2011
  • PSB (Singapore ) : PSB+IEC60950-1
  • NOM (Mexico ) : NOM-001-SCFI-1993
  • IRAM (Argentina ) : IRAM+IEC60950-1
  • SASO (Saudi Arabia ) : SASO+IEC60950-1
  • BIS(India) : IEC60950-1 / IS13252
  • NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998
  • KC(Korea) : K 60950-1
  • EAC(Russia) : EAC+IEC60950-1
  • INMETRO(Brazil) : INMETRO+IEC60950-1
  • BSMI(Taiwan) : BSMI+IEC60950-1
  • RCM(Australia) : IEC60950-1/AS/NZS 60950-1
  • CSA (Canada) : cUL UL(USA) : cUL60950-1
  • TUV (Germany)
  • CE NEMKO (Norway) : CE
EMC:
  • FCC (USA) Part 15, Subpart B Class A
  • CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
  • VCCI (Japan) : VCCI V-3 /2010.04 Class A
  • KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24
  • BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital)
  • C-Tick (Australia) : AS/NZS CISPR22:2009
  • CCC(China) :GB9254-2008 GB17625.1-2012
  • GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • TÜV
  • ENERGY STAR 6.0
  • RoHS
  • EPEAT Silver
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0770723531630, 0818244541322, 0887276107271, 5942693594334, 8806086669269
UPC: 770723531630, 818244541322, 887276107271
EAN: 0770723531630, 0818244541322, 0887276107271, 5942693594334, 8806086669269
UNSPSC: 43211902
