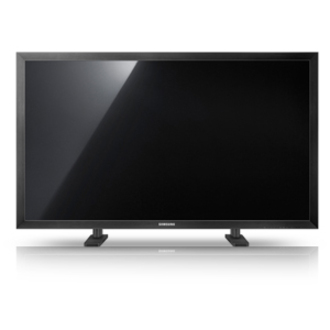

Samsung 820DXN-2 Digital Signage Display

Part Number: 820DXN-2
Model: Parts
Add to My Shopping List Add to Compare
$70,431.38
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Processor Type
Athlon X2
Processor Model
4450e
Processor Speed
2.30 GHz
Standard Memory
1 GB

Product Description:

  Digital Signage Display, Samsung, 1920 X 1080, 2, 000:1, 600 Cd, M2, Lan, D-Sub, Dvi-D ", Out, VCR, HDMI, Rs232C
Explore all Samsung Parts Accessories
Add to Quote
Samsung 820DXN-2 Digital Signage Display
Samsung 820DXN-2 Digital Signage Display
Samsung 820DXN-2 Digital Signage Display Samsung 820DXN-2 Digital Signage Display

Samsung Parts Accessory Model Overview

Products and parts from Samsung.
Samsung 820DXN-2 Digital Signage Display Overview

Display your message in the biggest way. The SAMSUNG 820DXn-2 is 82" large with a dynamic contrast ratio of 2500:1. That means that whether you're trying to reach people in an airline terminal, retail showroom or hotel lobby, you'll always succeed. With this LCD display images are sharp, vivid and simply breathtaking. And with MagicInfo , you can save time by easily controlling multiple displays remotely.

Processor & Chipset
Processor Type:
Athlon X2
Processor Model:
4450e
Processor Speed:
2.30 GHz
Memory
Standard Memory:
1 GB
Memory Technology:
DDR2 SDRAM
Storage
Total Hard Drive Capacity:
40 GB
Display & Graphics
Viewable Screen Size:
82"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Graphics Modes:
WXGA
Interfaces/Ports
USB:
Yes
DVI:
Yes
VGA:
Yes
HDMI:
Yes
Component Video:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
44.3"
Depth:
5.6"
Weight (Approximate):
262.35 lb
Miscellaneous
Additional Information:
  • VESA: 1400 x 800, 900 x 800 mm
  • Media Player Option Type: Internal
  • Humidity: 10 ~ 80%

Display:

  • Type:S-PVA (DID)
  • Pixel Pitch (mm): 0.9405 (H) x 0.9405 (V)
  • Active Area (mm): 1805.76 (H) x 1015.74 (V)
  • Brightness: 600 cd / m²
  • Contrast Ratio: 2000 : 1
  • Viewing Angle (Horizontal / Vertical):178° / 178°
  • Time Response: 8ms
  • Dynamic C / R:2500 : 1
  • Scanning Frequency H: 30 kHz ~ 81 kHz
  • Scanning Frequency V: 56 Hz ~ 85 Hz
  • Maximum frequency: 148.5 MHz

Power Consumption:

  • Operation:1 kilowatt (Max) / 930 (Typ)
  • Standby: less than 5 W
  • Off:less than 5 W

Special Characteristic:

  • Lamp Error Detection
  • Anti Retention
  • Brightness Sensor
  • Temperature Sensor
  • Built-In Fan Control
  • MDC RS232C
  • Built in Speaker (15W + 15W)
  • Plug and Play (DDC2B
  • DDC / CI)
  • PIP / PBP
  • Video Wall (5 x 5)
  • Pivot Display
  • Button Lock
  • Digital Daisy Chain
  • MagicInfo S / W
  • Windows Embedded Standard 2009
Certifications & Standards:

Safety:

  • UL(USA):UL60950-1CSA(Canada):CSAC22.2No.60950-1TUV(Germany):EN60950-1NEMKO(Norway):EN60950-1KC(Korea):K60950-1CCC(China):GB4943-2001PSB(Singapore):IEC60950-1GOST(Russia):IEC60950-1
  • EN55022SIQ(Slovenia):IEC60950-1
  • EN55022PCBC(Poland):IEC60590-1
  • EN55022NOM(Mexico):NOM-019-SCFI-1993IRAM(Argentina):IEC60950-1SASO(SaudiArabia):IEC60950-1

EMC:

  • FCC(USA)FCCPart15
  • SubpartBclassACE(Europe)EN55022
  • EN55024VCCI(Japan)V-3(CISPR22)KCC(Korea):KN22
  • KN24BSMI(Taiwan):CNS13438(CISPR22)C-Tick(Australia):AS/NZS3548(CISPR22)CCC(China):GB9254-2008
  • GB17625.1-2003
Country of Origin:
South Korea
Item Numbers
GTIN: 0729507810799, 0996591189944
UPC: 729507810799, 996591189944
EAN: 0729507810799, 0996591189944
UNSPSC: 43211902
The Samsung 820DXN-2 Digital Signage Display is also known as 820DXN2
