Package Contents:

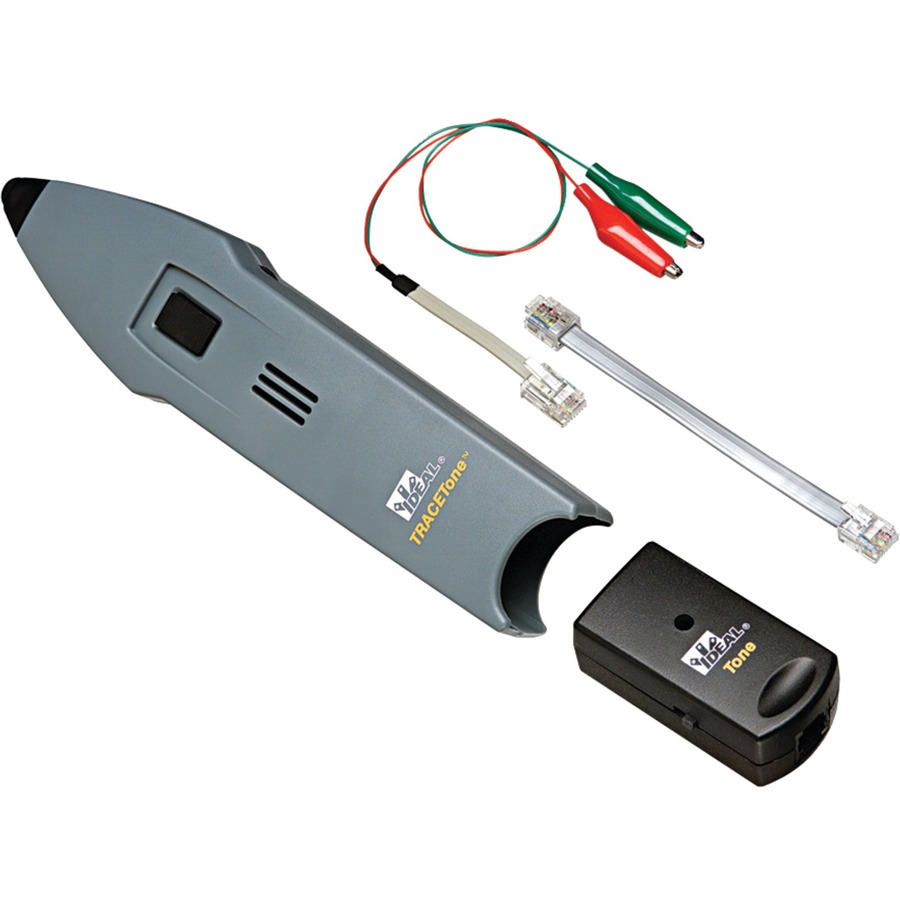

- TRACETone Tone Generator and Amplified Probe Test Set
- Alligator Clip with RJ11 interface
- Satin RJ11 Patch Cord
Additional Information:
- Battery Size: LR44
- 2 selectable tone styles
- Built-in volume control to meet personal preference
- Turn-on the Amplified Probe by contact and automatic power off mode whenTone Generator is in the stowed mode-no dead battery
Voltage Without Damage:
- 250 volts peak DC or 175 volts RMS AC
Tone frequencies (+/-5%):
- 995Hz and 845Hz alternating tones
Tone voltage:
- 12 volts p-p no load, new battery
Tone power:
- 8dbm into 600 ohms, new batter
