Ruckus ICX7150-C12P-2X10GR Ethernet Switch
Part Number:
ICX7150-C12P-2X10GR
Model:
ICX 7150ZP
Full specifications (PDF)

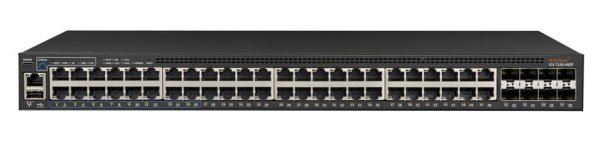

Ruckus ICX 7150ZP Ethernet Switch Model Overview
The Ruckus ICX 7150-48ZP is an enterprise-class stackable access switch designed to provide unbeatable performance, flexibility, and scalability for modern network deployments. With 48 ports and up to 1480 watts of Power-over-Ethernet (PoE) budget, it effortlessly powers multiple devices while ensuring high-speed connectivity. It features advanced Multigigabit technology to optimize the performance of high-performance wireless access points and edge devices, all while seamlessly integrating with Ruckus wireless products for unified network access.
Key Features
- 48 Ports: 16x 100/1000 Mbps/2.5 Gbps PoH and 32x 10/100/1000 Mbps PoE+ ports
- High PoE Budget: 1480 watts to power all ports
- Redundant Power Supplies: Dual hot-swappable for increased reliability
- Advanced Performance: Up to 8x10 GbE uplink/stacking ports
- Robust Security: Supports IEEE 802.1X, MAC address locking, and more
Specifications
- Switching Capacity: 304 Gbps
- Forwarding Capacity: 226 Mbps
- Dimensions: 440mm (W) x 332mm (D) x 44mm (H)
- Weight: 6.61 kg
- Operating Temperature: -5°C to 45°C
- Humidity: 5% to 95% (non-condensing)
- Noise Level: 52 dBA
- MTBF: 104,626 hours
- Power Consumption: 89 W (idle), 917 W (full PoE load)
Brand
Ruckus
Model
ICX 7150ZP
