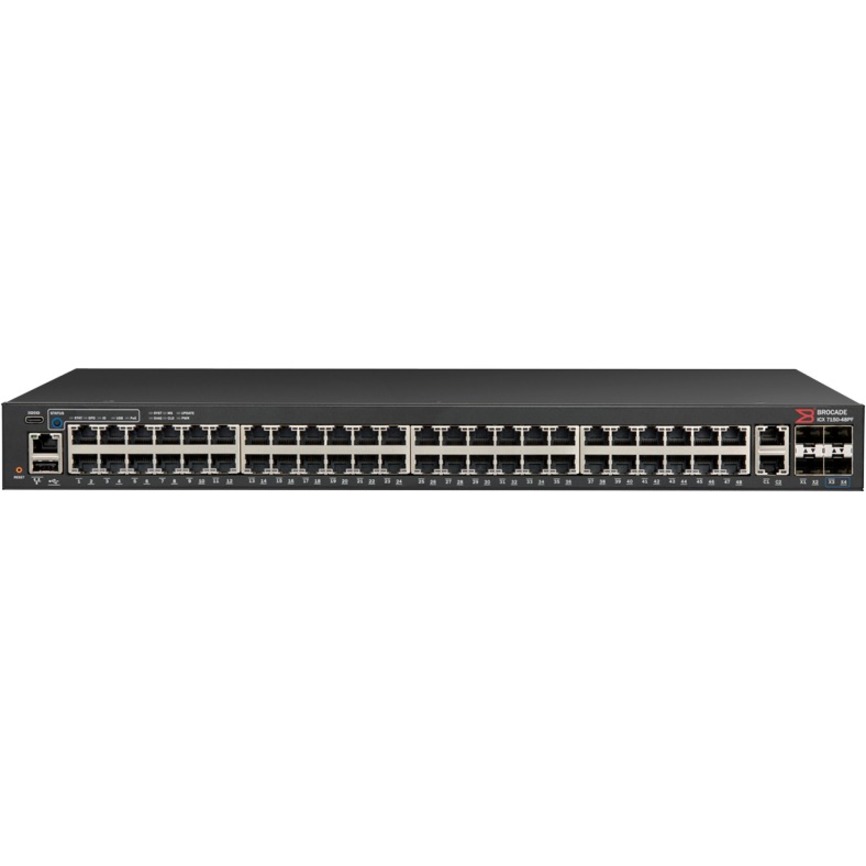

Ruckus ICX7150-48-4X10GR Network Switch

Ruckus ICX 7150ZP - ICX 7150 Switch, 48x 10/100/1000 ports, 2x 1G RJ45 uplink-ports, 4x 10G SFP+ uplink-ports, L3 features (OSPF, VRRP, PIM, PBR)
  • Layer 3 Switch ensures productivity by providing an efficient, hassle-free connection
  • Provides efficient communication with other layer 3 switch in the stack to ensure maximum productivity
  • Features 48 networking ports to meet the requirements of the most demanding workgroups
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Can work as layer 3 routing for scalable network design
  • Rack mounting enables you to organize wires & secure cables for professional installation
  • Gigabit Ethernet port for ultra-fast network speeds
  • Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Read More
$3,019.40
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

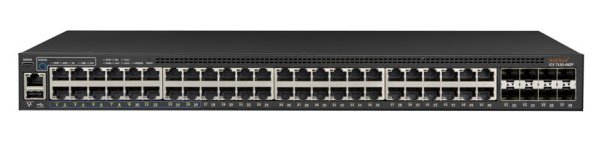

Ruckus ICX 7150ZP Network Switch Model Overview
The Ruckus ICX 7150ZP combines enterprise-class switching features with high performance. Can operate in fanless mode outside of the wiring closet to provide silent operation for classrooms, hospitality suites, retail sites, hospitals or other noise sensitive environments. The switch offers multi-gigabit technology (IEEE 802.3bz) to match the highest performing 802.11ac Wave 2 Wireless access points.
Ruckus ICX7150-48-4X10GR Network Switch Overview

Raising the Bar for Entry-Level Stackable Switches

The Brocade® Ruckus® ICX® 7150 Switch not only delivers the performance, flexibility, and scalability required for enterprise Gigabit Ethernet (GbE) access deployment, it raises the bar with non-blocking performance and up to 4×10 GbE ports for uplinks or stacking. It offers class-leading stacking density with up to eight switches per stack and seamless interoperability with Brocade Ruckus wireless products to deliver unified wired and wireless network access. In addition, the Ruckus ICX 7150 combines enterprise-class features, manageability, performance, and reliability with the flexibility, cost-effectiveness, and "pay as you grow" scalability of a stackable solution.

The Ruckus ICX 7150 Switch provides enterprise-class stackable LAN switching solutions to meet the growing demands of campus networks. Designed for small to medium-size enterprises, branch offices, and distributed campuses, these intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability. The Ruckus ICX 7150 is available in 12-, 24-, and 48-port 10/100/1000 Mbps models with 1/10 GbE dual-purpose uplink/ stacking ports with or without IEEE 802.3af Power over Ethernet (PoE) and 802.3at Power over Ethernet Plus (PoE+) to support enterprise edge networking, wireless mobility, and IP communications without the need for additional power outlets or power injectors.

Brocade Campus Fabric technology allows the Ruckus ICX 7150 Switch to expand with Brocade ICX 7250 Switches, Brocade ICX 7450 Switches, and Brocade ICX 7750 Switches for a complete campus network solution with consolidated management across core, aggregation, and core layers; shared network services -adding advanced Layer 3 capabilities to all switches, and scale-out flexibility to expand as needed. The Ruckus ICX 7150 is an ideal solution for unified wired and wireless network access.

Interfaces/Ports
Total Number of Network Ports:
48
Uplink Port:
Yes
Modular:
Yes
Stack Port:
Yes
Port/Expansion Slot Details:
  • 48 x Gigabit Ethernet Network
  • 2 x Gigabit Ethernet Uplink
  • 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 10GBase-X
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
SFP+
Shared SFP Slot:
No
Number of SFP+ Slots:
4
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
No
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
  • Rack-mountable
  • Desktop
Height:
1.7"
Width:
17.3"
Depth:
14.6"
Miscellaneous
TAA Compliant:
Yes
Item Numbers
GTIN: 0098379122058
UPC: 098379122058
EAN: 0098379122058
UNSPSC: 43222612
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Ruckus ICX7150-48-4X10GR Network Switch is also known as BRC-ICX7150484X10GR
