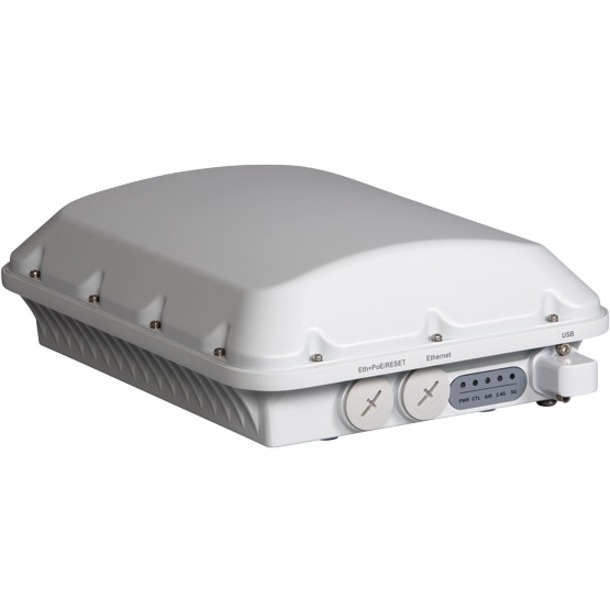

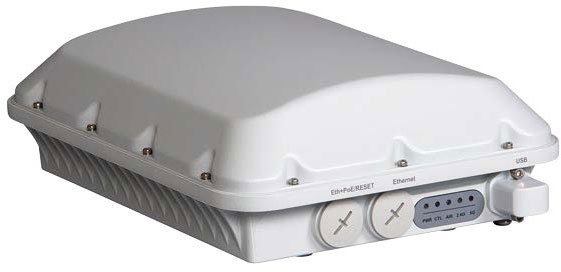

Ruckus ZoneFlex T610 Wireless Access Points Model Overview
The ZoneFlex T610 is the industry's highest-performing dual-band outdoor smart Wi-Fi access point, achieving unparalleled speed and connectivity. Equipped with 802.11ac Wave 2 technology and featuring patented BeamFlex+ adaptive antenna technology, the T610 delivers up to 2.5 Gbps of throughput while efficiently managing interference. This robust access point is designed for demanding environments like outdoor campuses and smart cities, ensuring reliable performance even in high-density areas. Its environmentally hardened construction, along with flexible deployment options, makes it perfect for a variety of outdoor applications.
Key Features
High Throughput: Up to 2.5 Gbps with 4x4:4 MIMO technology
Supports MU-MIMO: Simultaneously serves multiple devices for optimal performance
BeamFlex+ Technology: Provides improved coverage and reliability with 4,000+ antenna patterns
IP67 Rating: Durable outdoor design for extreme temperatures (-40°C to +65°C)
Field-Accessible USB Port: Ideal for IoT applications
Specifications
Wireless Standards: 802.11a/b/g/n/ac
Max PHY Rate: 2533 Mbps (1733 Mbps on 5GHz, 800 Mbps on 2.4GHz)
Power: PoE (802.3at, af)
Dimensions: 31.7 cm (L), 24.1 cm (W), 9.5 cm (H)
Weight: 6 lbs (without hardware)
Operating Temperature: -40°F to 149°F (-40°C to 65°C)
Power Consumption: 5.5W (minimum), 10.4W (typical)
In busy outdoor public venues, users and operators need fast, reliable connectivity. Whether it's smartphones running bandwidth-hungry voice and video applications, Internet of Things (IoT) sensors, or "Smart City" connected devices, crowded outdoor spaces demand high-performance Wi-Fi.
The Ruckus T610 delivers blazing-fast connectivity for medium-density outdoor deployments, with data rates up to 2.5Gbps-the highest available data rates for Wi-Fi clients. Patented Ruckus adaptive antenna technology improves signal quality for every connected device, everywhere. And the AP delivers all of this in an industrial-grade enclosure that can stand up to the rigors of the elements in practically any outdoor space.
The T610 is purpose-built for busy public venues such as outdoor campuses and hotspots, arenas, convention centers, and transportation hubs. It provides industrial-grade features such as secure image download and an IP67-compliant USB port, making it easy to deploy IoT applications for Smart Cities or large-scale video surveillance/monitoring systems. It's the perfect choice for medium-density deployments with standard Ethernet backhaul that require premium wireless performance.
The T610 802.11ac Wi-Fi AP incorporates patented technologies found only in the Ruckus Wi-Fi portfolio.
Extended coverage with patented BeamFlex+ utilizing multi-directional antenna patterns.
Improve throughput with ChannelFly, which dynamically finds less congested Wi-Fi channels to use.
Additionally, the T610 provides a full complement of next-generation 802.11ac features. 802.11ac Multi-User MIMO (MU-MIMO) support allows the AP to simultaneously transmit to multiple client devices, drastically improving airtime efficiency and overall throughput for all clients-even non-Wave 2 devices. SmartMesh™ wireless meshing technology accelerates time-to-deployment and eliminates the cost associated with running Ethernet cabling between multiple access points in the network.
Whether you're deploying ten or ten thousand APs, the T610 is also easy to manage through Ruckus' appliance, virtual and cloud management options.
FEATURES
WIRELESS
802.11ac Multi-User MIMO (MU-MIMO)
Concurrent dual-band (5 GHz/2.4 GHz) support
2533 Mbps maximum PHY rate (1733Mbps in 5GHz; 800Mbps in 2.4GHz)
BeamFlex+ (PD-MRC) adaptive antenna technology, with support for 4000+ unique antenna patterns enables up to 4dB of additional gain and up to 10dB of additional interference mitigation
Unmatched Rx sensitivity down to -104dBm
802.11ac standard Tx Beamforming
Space Time Block Coding for optimized client performance Improved Maximum Ratio Combining (MRC) for best-in-class receive sensitivity
Low Density Parity Check (LDPC) for increased data throughput at all ranges
256-QAM support on 5GHz and 2.4GHz
POWER
802.3af/at mode of operation
INTERFACES
One 1 x 1GbE port for backhaul
Second 1GbE port, for Link Aggregation
Support for IoT applications and enhanced location-based services via an IP67 compliant USB interface
OUTDOOR CHARACTERISTICS AND MOUNTING
IP67 rated, -40 °C to +65 °C
Mounting options for fast and easy deployment: wall or pole mountable
ENTERPRISE FEATURES
SPoT™ Real-time location engine and analytics software
Full specifications (PDF)
