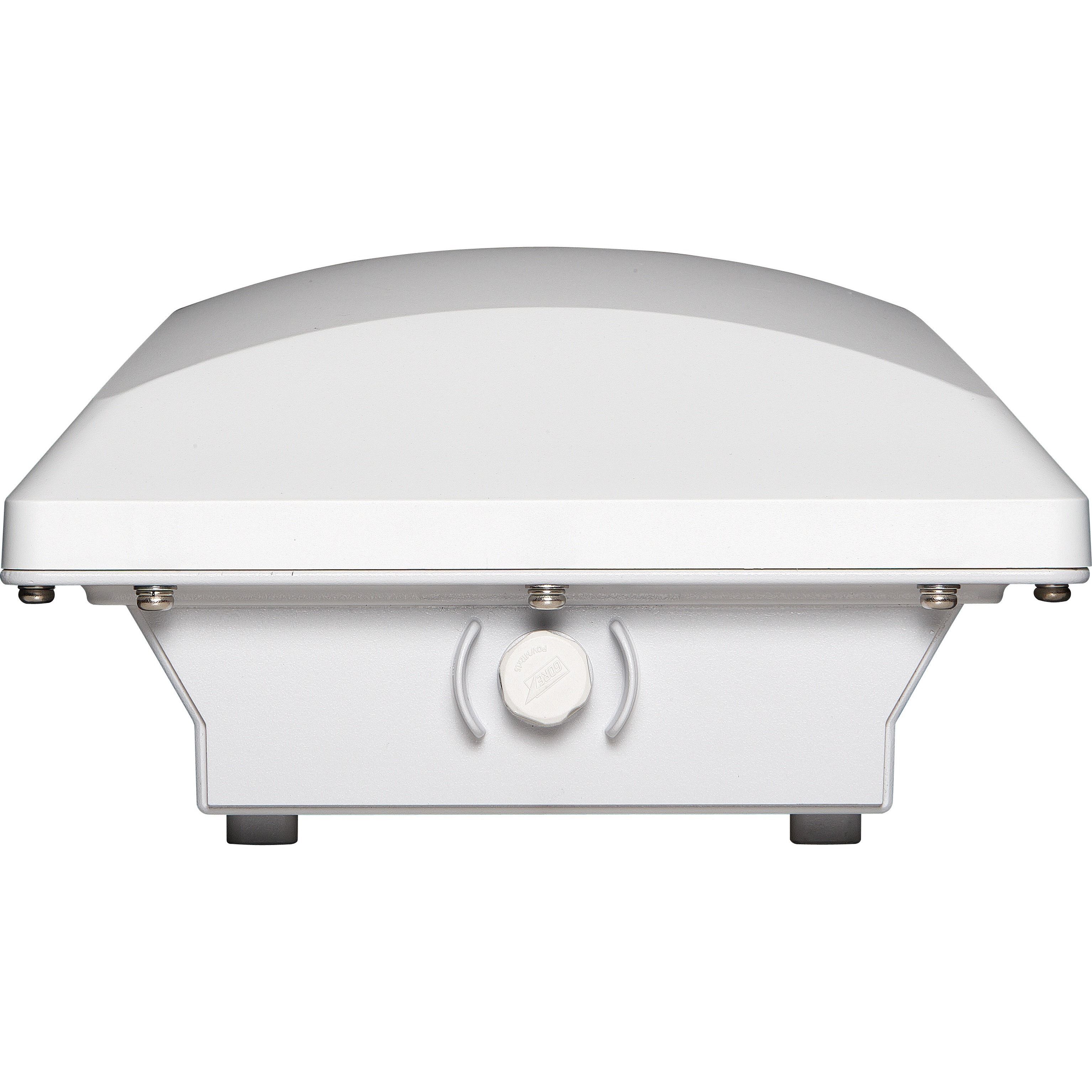

802.11AC SMART WIFI OUTDOOR ACCESS POINTS FOR DIRECTED COVERAGE
The Industry's First Outdoor 802.11ac AP with BeamFlex+ designed for High Density Venues
The ZoneFlex T301 Series Unleashed enable controller-less Wi-Fi architecture for small business environments with superior performance, lower costs and simplified management. Separate controllers and access point licenses are no longer needed, significantly reducing upfront costs. Set up is also easy, thanks to a simplified web interface that helps businesses configure Wi-Fi in just 60 seconds.
The ZoneFlex T301 Series are the first dual-band 802.11ac outdoor access points (AP) designed explicitly for high density user environments such as stadiums, arenas, train stations, convention centers, and major metro areas.
The T301 Series are the only 802.11ac access points on the market to integrate patented BeamFlex™ technology. The T301 Series has internal high gain directional antennas to provide directed coverage solutions eliminating the need for bulky panel antennas and confusing and expensive external RF cabling. The T301 Series enable focused Wi-Fi coverage to mitigate interference and implicitly improve signal-to-interference-plus-noise ratio (SINR) in the most challenging RF environments.
In addition, the T301 Series uniquely leverages a predictive model for channel selection (ChannelFly) that uses actual activity to learn what channels will yield the most capacity to provide the highest client speeds and reduced interference.
Designed for easy installation within an ultra lightweight and low profile enclosure, the T301 Series is ideal for venue owners looking to quickly and economically deploy Wi-Fi in high-capacity environments such as stadiums, and major metro areas. Using directed coverage, the APs can be deployed in close proximity, mitigating co-channel interference. This is critical as high density deployments require a large number of APs within a fixed space.
BENEFITS
Unleash the performance
in the Unleashed version, the ZoneFlex T301 series is capable of supporting controller-less deployments for up to 25 access points and 512 concurrent clients
High speed client performance with integrated adaptive antennas
Patented BeamFlex technology greatly improves connection reliability and increases WLAN capacity
Light, slim design for easy deployment
Compact, lightweight design with integrated antennas provide flexible deployment options with quick and easy installation
Highly Scalable
The ability to cost effectively scale high density networks
Predictive channel selection for increased capacity and reduced interference
ChannelFly automatically selects the best performing channel based on statistical, real-time capacity analysis of all RF channels
Standard 802.3af power
Easy installation using standard 802.3af PoE switches or PoE injectors
Unmatched Wi-Fi capacity and reliability
BeamFlex delivers up to 4 dB of added signal gain and up to 10dB of interference mitigation
Enhanced receive capabilities
Support for signal polarization diversity with maximal ratio combining (PD-MRC) ensures reliable connectivity for mobile devices
