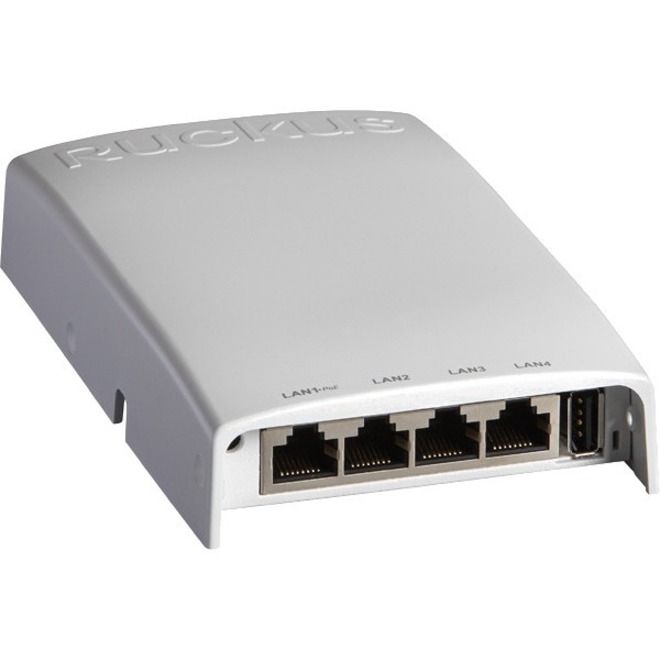

Ruckus 9U1-H510-WW00 Wireless Access Points

The ZoneFlex H510 is designed for hospitality and habitation deployments such as hotels, dormitories, apartment buildings and multiple dwelling unit (MDU) structures. The H510 is designed for easy installation over a standard wall outlet.

Simply connect up to five wired devices with integrated Gigabit Ethernet ports. Leverage the PoE port and a pass-through feature to power up and connect devices such as a digital phone even when they require native access to a PBX system. The H510 also supports an add-on radio module to enable IoT sensors.

Integrated BeamFlex+ Smart Antenna Technology

• BeamFlex+ support for up to 4 dB of signal gain and 10 dB of interference mitigation in addition to the antenna gain
• Polarization Diversity with Maximal Ratio Combining (PD-MRC) ensures reliable connectivity for mobile devices

• 802.11ac 2X2x2:2 stream dual-band 2.4GHz and 5GHz concurrent connectivity with BeamFlex+
• In-room device provides integrated Wi-Fi AP and Ethernet wall switch for a wide range of devices and applications
• Multiple SSIDs, port-based VLANs support, concurrent IP-based services such as VoIP, IPTV, high-speed Internet access and in-room device connectivity
• Robust authentication options include: 802.1x, MAC-based, LDAP, RADIUS, Active Directory and authentication through an internal user database

• Can be installed over any standard network wall outlet
• Gigabit Ethernet uplink with PoE input (802.3af/at) for easy deployment without the need for additional power outlets. Reduces the need for power cabling, switch ports and power sourcing equipment
• Powers up PoE+ devices such as IP-based VoIP phones further eliminating power cords that clutter the environment.
• Pass-through feature allows native connectivity for existing digital phones or in room network devices
• Can be deployed in standalone mode or centrally managed by the Ruckus vSCG, SmartZone, ZoneDirector, Ruckus Cloud Wi-Fi or Ruckus FlexMaster systems

• Sleek, inconspicuous compact form factor for best aesthetics
• Front port access eliminates unsightly cabling and disruptive furniture placement
