Full specifications (PDF)
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
- 2.40 GHz
- 5 GHz
Wireless Transmission Speed:
2.50 Gbit/s
MIMO Technology:
Yes
Beamforming Technology:
Yes

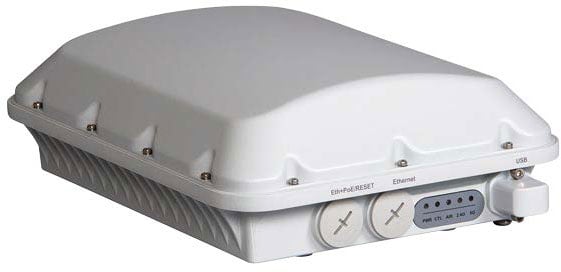

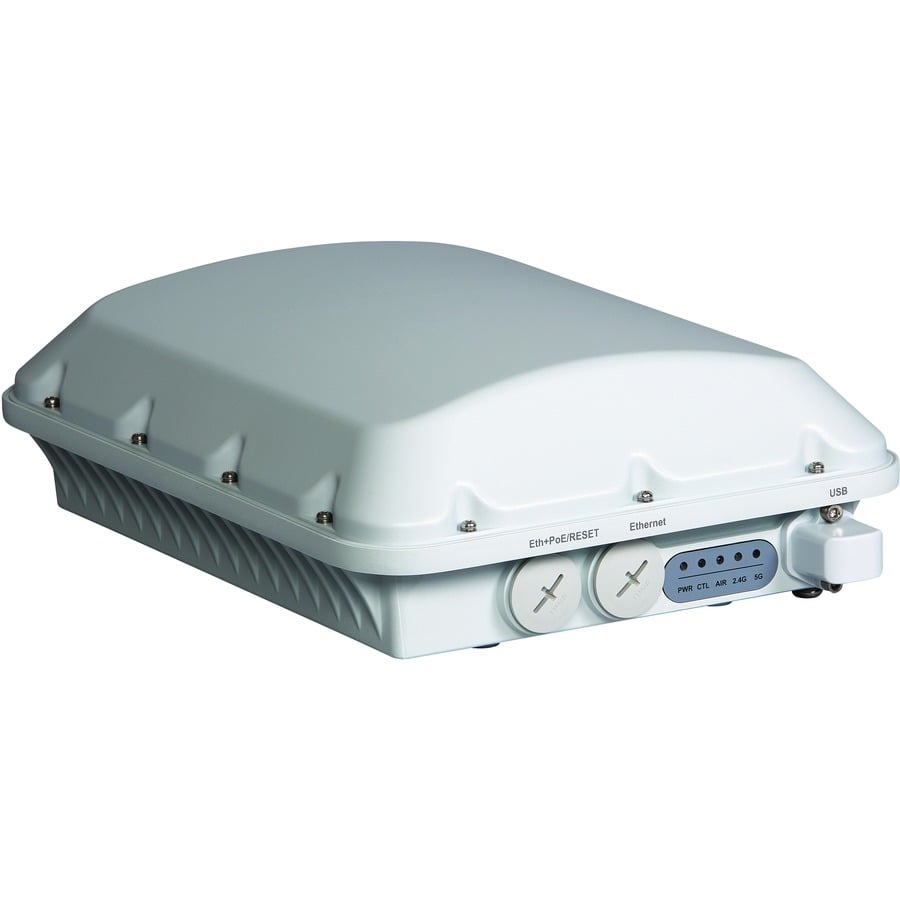

Ruckus ZoneFlex T610 Access Point Model Overview
The ZoneFlex T610 combines Ruckus patented technologies and best-in-class design with the next generation of 802.11ac Wave 2 features to deliver industry leading Wi-Fi performance and reliability.Featuring BeamFlex+ adaptive antenna technology, the ZoneFlex T610 offers a substantial increase in performance and range by optimizing antenna coverage on a per-client, per-transmission basis. BeamFlex+ additionally mitigates co-channel interference by directing Wi-Fi signals where they are needed instead of towards neighboring access points. The T610's BeamFlex+ adaptive antenna system is also equipped with dual polarization antennas, allowing the access point to adapt to the physical orientation of client devices and maximize uplink performance
Ruckus 901-T610-WW51 Access Point Overview
The T610 delivers blazing fast connectivity for high-density outdoor deployments, with data rates up to 2.5 Gbps and the density-handling ability to match. Patented BeamFlex+ technology rejects interference and improves signal quality for any device, anywhere. Included MU-MIMO technology maximizes network efficiency, reducing bottlenecks and enhancing user experience. Smart Mesh accelerates time-to-deployment and eliminates the cost associated with running Ethernet cabling between multiple access points in the network.
The T610 is designed for high-density deployments in which dozens of clients need guaranteed high throughput. Enabling cities to become smart cities by providing city-wide wireless connectivity for busy public venues, hotspots and surveillance monitoring systems are ideal use cases for T610. The T610 is perfect for customers that need premium wireless performance and don't have requirements for network backhaul interfaces such as fiber or coaxial cable. For deployments demanding the same level of performance as the T610 and need network backhaul interfaces, the T710 is a good fit.
The T610 can be used with any Ruckus control and management platform-appliance, virtual or cloud-managed. That means that as your business needs change, your architecture-and your APs-can change with you.
Technical Information
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
USB:
Yes
Powerline:
No
Management Port:
No
Physical Characteristics
Form Factor:
- Pole-mountable
- Wall Mountable
Height:
3.7"
Width:
9.5"
Depth:
12.5"
Weight (Approximate):
6 lb
Item Numbers
UNSPSC:
43222631
Get help from a Barcoding Expert!
The Ruckus 901-T610-WW51 Access Point is also known as
RUC-901T610WW51
