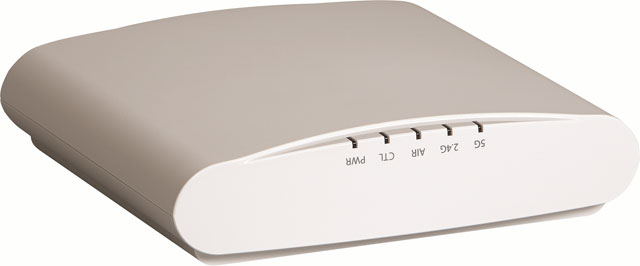

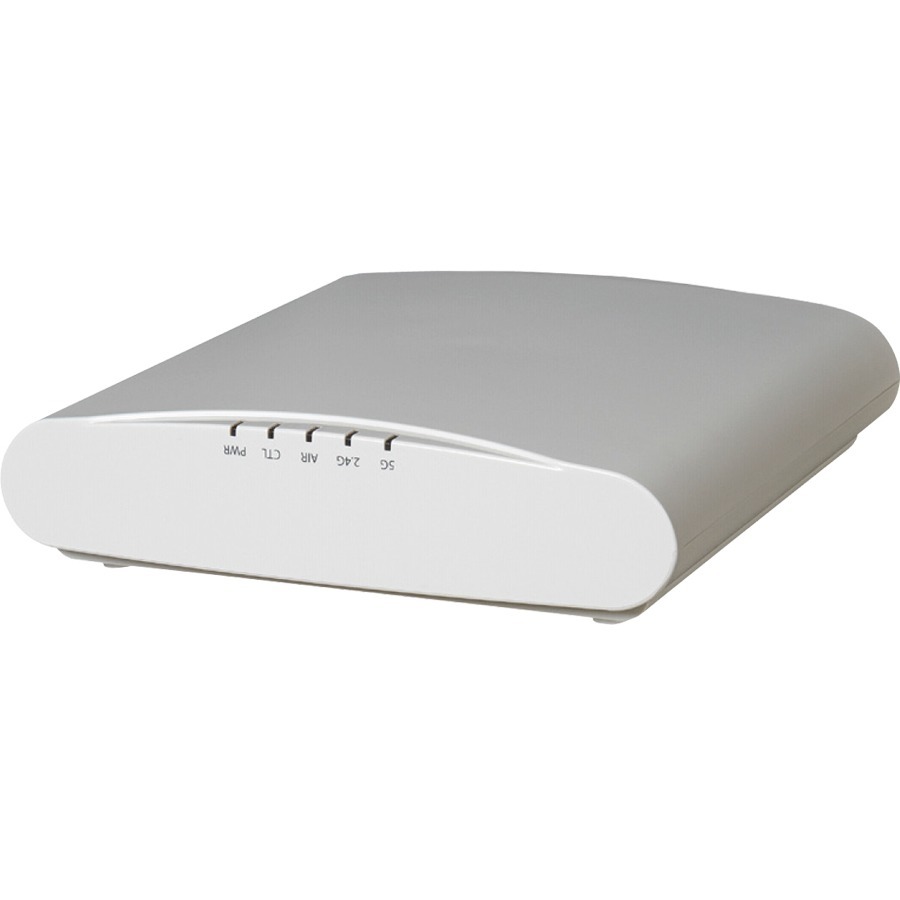

Ruckus 901-R610-US00 Access Point

Ruckus ZoneFlex R610 - Wireless ZoneFlex R610 IEEE 802.11ac 1.86 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - MIMO Technology - 2 x Network (RJ45) - Gigabit Ethernet - Standalone, Wall Mountable
  • 802.11ac Multi-User MIMO (MU-MIMO)
  • Dual-band concurrent (5GHz/2.4GHz)
  • BeamFlex+ (PD-MRC) smart antenna, with support for up to 1024 unique antenna patterns per access point enables up to 4dB of additional gain and up to 10dB of additional interference mitigation
  • 80+80/160MHz capable
  • Automatic interference mitigation, optimized for high-density environments
  • 802.11ac standard Tx Beamforming
  • Standard 802.3af/at Power over Ethernet (PoE)
  • Two 10/100/1000 Ethernet ports, one with 802.3af/at Power over Ethernet (PoE)
  • USB port for IoT technologies
  • Router mode with NAT and DHCP services
Read More
$727.20
Global Supply Chain Constraints; Order now to be first when stock is available
Recommended TrueSupport Coverage ($6.67/mo.)
x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over $325 per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device
$80.00
Only $6.67/month
Subtotal ( items)

Full specifications (PDF)

Indoor 802.11ac Wave 2 Wi-Fi access point for medium density venues
The Ruckus ZoneFlex R610 delivers high-performance and reliable 802.11ac wireless networking with MU-MIMO (Multi-User Multiple-Input Multiple-Output) capability. MU-MIMO helps boost network throughput by serving multiple clients simultaneously and also benefiting non-Wave 2 clients, thus improving overall network performance. The R610, through its USB port, also enables IoT readiness for technologies like BLE, to help customers take advantage of upcoming IoT technologies.Each ZoneFlex R610 integrates Ruckus-patented BeamFlex+, a software-controlled, high gain antennas that continually forms and directs each Wi-Fi packet over the best performing signal path. Using dual-polarized antennas, the R610 adapts in real time to anticipate handheld device movement and rotation ensuring consistent performance.
Ruckus 901-R610-US00 Overview
HIGH PERFORMANCE, 802.11AC WAVE 2 MID-RANGE SMART WI-FI ACCESS POINTS WITH ADAPTIVE ANTENNA TECHNOLOGY

The Ruckus ZoneFlex R610 delivers high-performance and reliable 802.11ac wireless networking with MU-MIMO (Multi-User Multiple-Input Multiple-Output) capability. MU-MIMO helps boost network throughput by serving multiple clients simultaneously and also benefiting non-Wave 2 clients, thus improving overall network performance.

The R610, through its USB port, also enables IoT readiness for technologies like BLE, to help customers take advantage of upcoming IoT technologies.

Each ZoneFlex R610 integrates Ruckus-patented BeamFlex+, a software-controlled, high gain antennas that continually forms and directs each Wi-Fi packet over the best performing signal path.

Using dual-polarized antennas, the R610 adapts in real time to anticipate hand-held device movement and rotation ensuring consistent performance.

MU-MIMO

MU-MIMO helps Wave 2 and non-Wave 2 clients. The R610 can communicate simultaneously to multiple Wave 2 clients increasing network performance. This frees up airtime for non-Wave 2 clients resulting in enhanced aggregate network throughput.

ADVANCED WLAN APPLICATIONS

When used with the Ruckus WLAN controllers, each ZoneFlex R610 supports a wide range of value-added applications such as BYOD/guest onboarding, Dynamic PSK, hotspot authentication, wireless intrusion detection and many more. WLANs can be created
and mapped to the same or different APs or VLANs. In a centrally managed configuration, the ZoneFlex R610 works with a wide range of authentication servers including Microsoft's Active Directory, LDAP, and RADIUS.

FLEXIBLE DEPLOYMENT OPTIONS

R610 offers unprecedented & unmatched flexibility-with the same AP being able to connect to a variety of controllers- ZoneDirector, SmartZone or Cloud. This gives you the ability to buy an AP now, and change your controller later. ZoneFlex R610 can be deployed across any L2/L3 network and can bridge traffic onto the local network, tunnel to a central location using L2TP, or route between the WAN and NAT'ed private subnets. With the Ruckus controllers, each ZoneFlex R610 is automatically configured through the network making deployment quick and easy.

COMPLETE LOCAL AND CLOUD MANAGEMENT

Each ZoneFlex R610 can be managed by the ZoneDirector controller or the SmartZone series of on-premise or virtual hosted controllers or through Cloud Wi-Fi.
Protect Your Product

Full specifications (PDF)

Technical Information
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
  • 2.40 GHz
  • 5 GHz
Wireless Transmission Speed:
1.86 Gbit/s
MIMO Technology:
Yes
Beamforming Technology:
Yes
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
USB:
Yes
Powerline:
No
Management Port:
No
Physical Characteristics
Form Factor:
  • Standalone
  • Wall Mountable
Height:
2"
Width:
7.7"
Depth:
7.9"
Weight (Approximate):
1.27 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0728350939091, 0881314942114
UPC: 728350939091, 881314942114
EAN: 0728350939091, 0881314942114
UNSPSC: 43222631


The Ruckus 901-R610-US00 is also known as RUC-901R610US00 or 901R610US00 .
