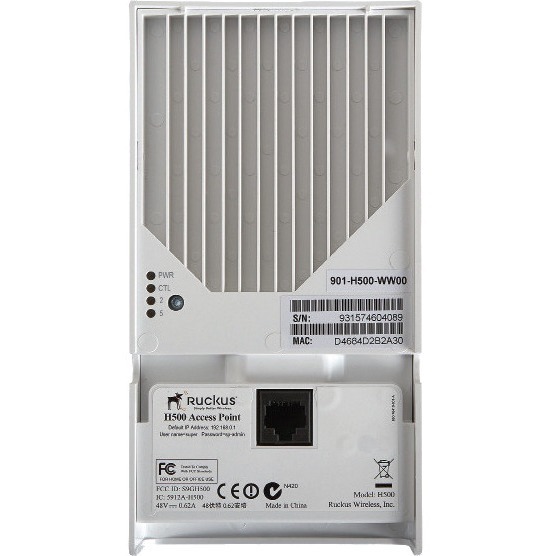

Ruckus 901-H500-WW00 Wireless Access Points

The ZoneFlex H500 Multiservice Wired/Wireless Wall Switch redefines connectivity with its sleek design and powerful features. Engineered with Ruckus' patented BeamFlex+ technology, it adapts to the physical location and orientation of devices, ensuring optimal signal quality for both wired and wireless connections. Perfect for hotel rooms, student accommodations, and multi-dwelling units, the H500 offers seamless support for various IP-based services including VoIP and IPTV, all while minimizing cabling clutter with integrated Power-over-Ethernet (PoE). Its discrete installation into standard electrical outlets guarantees a sophisticated aesthetic without sacrificing performance.

Key Features:

• BeamFlex+ Technology: Adaptive antennas for superior in-room performance.
• Flexible Deployment: Can be operated as a standalone unit or centrally managed.
• Integrated PoE Support: Powers devices like VoIP phones directly from the wall switch.
• Compact Design: Installs in standard electrical boxes, reducing visible cabling.

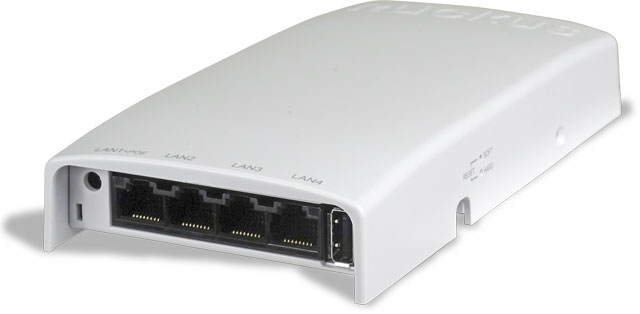

• Multiple Ethernet Ports: Four access ports for various wired connections.

Specifications:

• Power: POE 802.3af/802.3at, 48VDC input
• Physical Size: 90 mm x 171 mm x 29 mm
• Weight: 210 g (.46 lbs), 282 g (.62 lbs with bracket)
• Data Ports: 4 x 10/100 Mbps Ethernet
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Wireless Standards: IEEE 802.11a/b/g/n/ac
• Concurrent Users: Supports up to 100 users; 30 voice calls
• Safety and Security: WPA-PSK, WPA2 AES, RADIUS support
