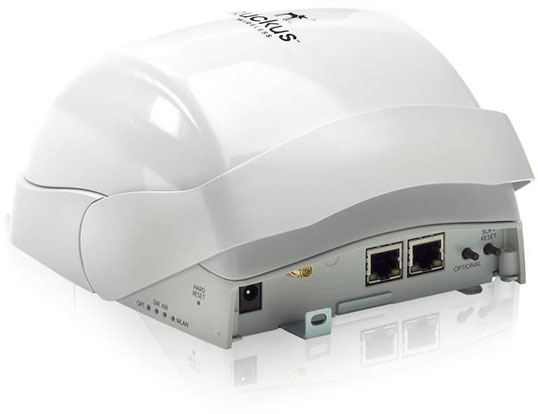

Ruckus 901-7962-UN01 Wireless Access Points

Part Number: 901-7962-UN01
Model: ZoneFlex 7962
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.40 GHz

Product Description:

  Ruckus Wireless ZoneFlex 7962 Dual-Band Access Point - IEEE 802.11n (draft) 600Mbps - 2 x 10/100/1000Base-T PoE
Explore all Ruckus ZoneFlex 7962 Wireless Access Points
Add to Quote
Ruckus 901-7962-UN01 Wireless Access Points
Ruckus 901-7962-UN01 Wireless Access Points
Ruckus 901-7962-UN01 Wireless Access Points
Ruckus 901-7962-UN01 Wireless Access Points
Ruckus 901-7962-UN01 Wireless Access Points Ruckus 901-7962-UN01 Wireless Access Points Ruckus 901-7962-UN01 Wireless Access Points

Full specifications (PDF)

Ruckus ZoneFlex 7962 Wireless Access Points Model Overview

The ZoneFlex 7962 is based on adaptive antenna technology that extends signal range two to four times while minimizing packet loss by constantly routing Wi-Fi transmissions over the highest performing signal paths. It's also the only 802.11n product purpose-built for hotels, schools and enterprises that enables high-definition IPTV, video-ondemand and other video applications while supporting VoIP and data applications for guests and employees. Ideal for multimedia and high-density user environments, the ZoneFlex 7962 can be deployed as a standalone access point or as part of centrally-controlled Smart Wireless LAN with the Ruckus ZoneDirector. Smart Mesh Networking, another unique feature, makes the ZoneFlex 7962 perfect for reliably extending wireless LAN services to areas where cabling Ethernet isn't possible or economical.
Ruckus 901-7962-UN01 Wireless Access Points Overview

The ZoneFlex 7962 is the first affordable, dual-band 802.11n access point that delivers ultra-high speed, reliable and long-range client connectivity within challenging RF environments. The ZoneFlex 7962 is based on dynamic RF beamforming technology that extends signal range two to four times while minimizing packet loss by constantly routing Wi-Fi transmissions over the best performing signal paths.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Antenna Gain:
7 dBi
Antenna Type:
Directional Antenna
Wireless Transmission Speed:
600 Mbit/s
Wireless Security:
  • WEP
  • RADIUS
  • WPA-PSK
  • WPA-TKIP
  • WPA2-AES
  • IEEE 802.11i
  • IEEE 802.1X
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
PoE (RJ-45) Port:
Yes
Management & Protocols
Management:
  • CLI
  • SNMP
  • Telnet
  • HTTP/HTTPS
  • IEEE 802.1Q VLAN
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
4.9"
Depth:
7.6"
Weight (Approximate):
1.50 lb
Miscellaneous
Additional Information:
  • Simultaneous Vo-Fi Clients: Up to 20
  • BSSID: Up to eight per radio (16 total)
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Item Numbers
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Ruckus 901-7962-UN01 Wireless Access Points is also known as RUC-9017962UN01
