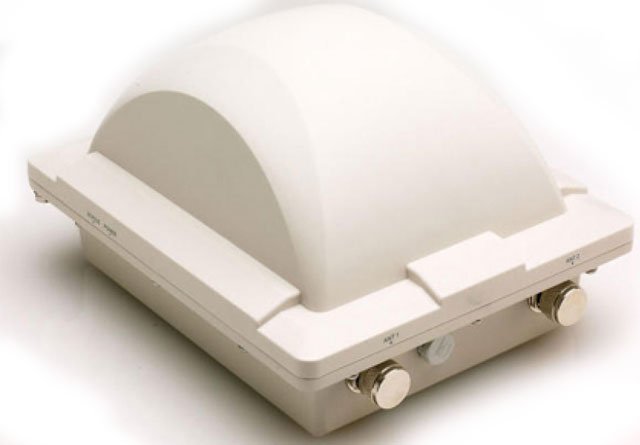

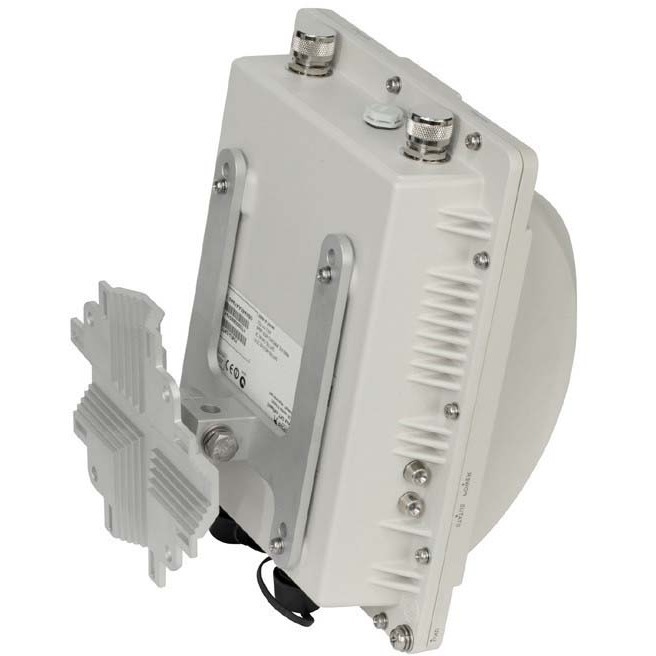

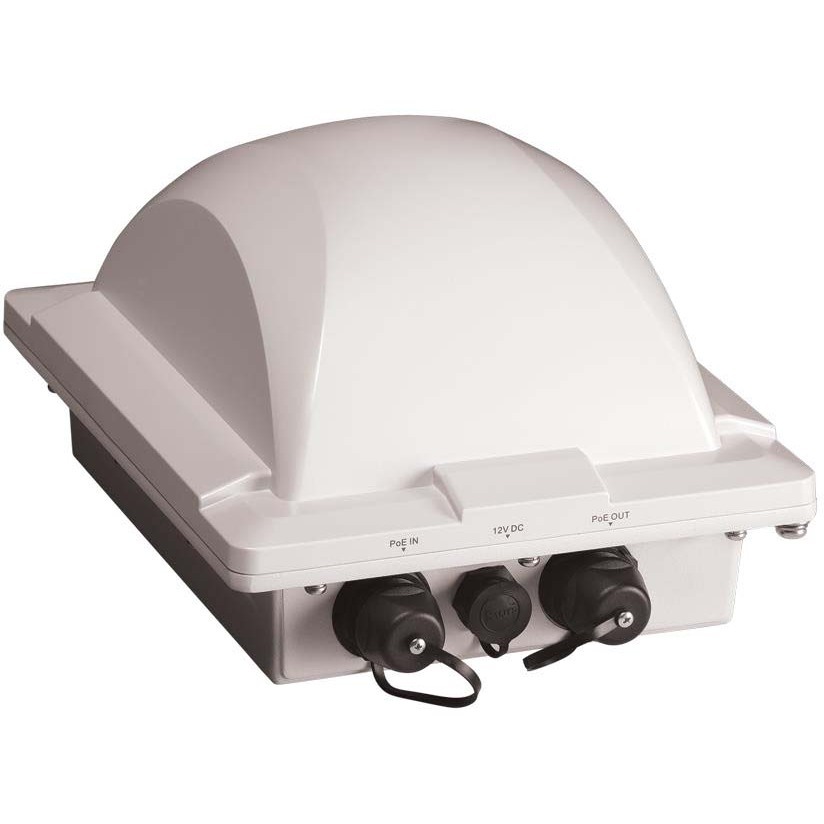

Ruckus 901-7762-WW53 Access Point

Ruckus 7762-AC - Wireless 7762-S-AC IEEE 802.11n 300 Mbit/s Wireless Access Point - 2.40 GHz, 5 GHz - 2 x Network (RJ45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Pole-mountable, Ceiling Mountable, Wall Mountable
  • With IEEE 802.11n network technology and data transfer rate of up to 300 Mbit/s, enjoy superior HD media playback and lag-free gaming
  • Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network
Read More

Full specifications (PDF)

The most robust 802.11n Outdoor Wi-Fi Access Point available, delivering range, reliability with Adaptive Antenna Technology custom fit for service providers
The Ruckus 7762-AC is the industry's first 802.11n outdoor access points featuring purpose built capabilities for the service provider market such as a single mode fiber uplink, AC power, and up to 500 clients per AP. The 7762-AC features a long-range, high-gain sectorized smart antenna array that integrates adaptive antenna technology and unique interference mitigation technology to deliver up to an additional 6dB of BeamFlex gain, physical antenna gain of 10dBi, and 15dB of interference mitigation within in a 120 degree azimuth. This advanced smart Wi-Fi design with concurrent 802.11n radios delivers 150 Mbps of sustained throughput between mesh APs 600 meters apart and 50 Mbps of sustained throughput to clients 300 meters away.
Ruckus 901-7762-WW53 Overview
World's First Concurrent 2.4/5GHz 802.11n Access Point with Adaptive Antenna Technology and Smart Wi-Fi Meshing
The ZoneFlex 7762 Series is the first dual-band 802.11n outdoor access point (AP) to integrate adaptive antenna technology to enable much longer range signals, better signal penetration inside buildings, and more resilient mesh connections that automatically adapt to interference and changing environmental conditions.

Supporting advanced Smart Mesh Networking, the Ruckus ZoneFlex 7762 Series is perfect for service providers looking to quickly and economically expand branded broadband services, offload data traffic from congested 3G networks, deploy multimedia hotspots or offer wireless broadband services where fixed line access is limited. Separate radios for access and backhaul traffic deliver high-throughput to clients throughout the mesh network.

The ZoneFlex 7762 Series is also ideal for hotels, resorts, multi-dwelling units, schools, warehouses and other enterprises needing to deliver broadband access from the outside in or to extend managed wireless LANs (WLANs) outdoors where Ethernet cabling is not possible.

The ZoneFlex 7762 Series can be centrally managed by the ZoneDirector Smart WLAN controller as part of a unified indoor/outdoor wireless LAN or deployed as a standalone AP and managed individually or through the FlexMaster remote Wi-Fi management system.

The ZoneFlex 7762 Series implements Ruckus-patented BeamFlex™ smart antenna technology that enables consistent, high-performance, extended coverage and multimedia support. Ruckus ChannelFly dynamic channel management optimizes client throughput by selecting the best channel to operate on. A Web-based wizard allows any computer user to configure ZoneFlex 7762 Series through the ZoneDirector™ - creating a secure and sophisticated WLAN in a matter of minutes.

Loading...

Full specifications (PDF)

Technical Information
Wireless LAN Standard:
IEEE 802.11n
Frequency Band:
  • 2.40 GHz
  • 5 GHz
Wireless Transmission Speed:
300 Mbit/s
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
VGA:
No
HDMI:
No
USB:
No
Powerline:
No
Management Port:
No
Physical Characteristics
Form Factor:
  • Pole-mountable
  • Ceiling Mountable
  • Wall Mountable
Height:
5.6"
Width:
7.7"
Depth:
9.4"
Weight (Approximate):
4.80 lb
Miscellaneous
Package Contents:
  • Dual-Band 802.11N Smart Wi-Fi Outdoor AP
  • Pole/Wall Mounting Bracket
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Item Numbers
UNSPSC: 43222631


The Ruckus 901-7762-WW53 is also known as 901-7762-WW53 or 9017762WW53 .
