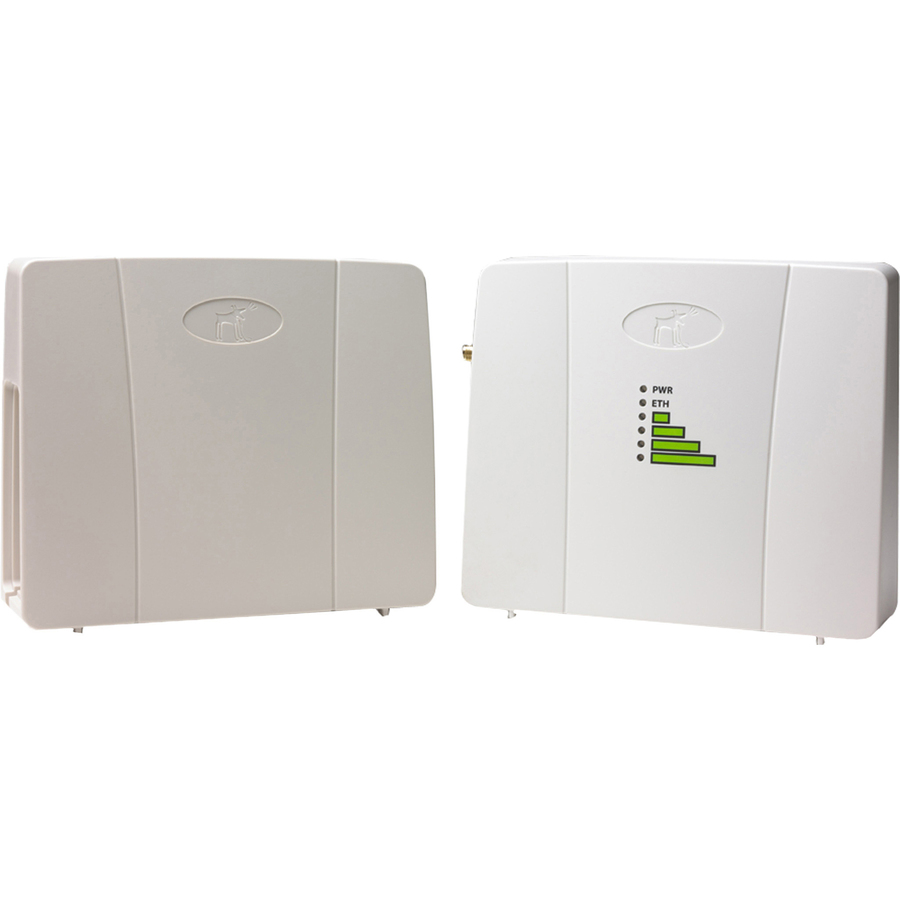

Ruckus 901-7211-UN25 Wireless Access Points

Part Number: 901-7211-UN25
Model: MediaFlex 7200 Series
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Broadband Transmission Technology
Ethernet
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
No

Product Description:

  Ruckus Wireless MediaFlex 7211 IEEE 802.11n Wireless Router - 2.40 GHz ISM Band - 18.75 MB/s Wireless Speed - 1 x Network Port - PoE Ports - Fast Ethernet - Wall Mountable
Explore all Ruckus MediaFlex 7200 Series Wireless Access Points
Add to Quote
Ruckus 901-7211-UN25 Wireless Access Points
Ruckus 901-7211-UN25 Wireless Access Points
Ruckus 901-7211-UN25 Wireless Access Points
Ruckus 901-7211-UN25 Wireless Access Points Ruckus 901-7211-UN25 Wireless Access Points Ruckus 901-7211-UN25 Wireless Access Points
Full specifications (PDF)

Ruckus MediaFlex 7200 Series Wireless Access Points Model Overview

The Ruckus MediaFlex 7200 Series is the first 802.11n (2.4GHz) customer premise equipment (CPE) specifically designed and optimized for broadband operators building large-scale wireless broadband access networks. Deployed indoors or outdoors, the Ruckus MediaFlex 7200 Series Smart Wi-Fi gateway compliments the overall network build out of wireless broadband access networks by maximizing coverage around the subscribers' home and office and extending Wi-Fi coverage to hard-to-reach indoor locations. With it, operators can deliver reliable, indoor/outdoor, always-on, broadband services at a fraction of the cost and complexity of conventional alternatives.
Ruckus 901-7211-UN25 Wireless Access Points Overview

Reliable broadband connectivity to Ruckus Wireless Broadband Access Networks and high performance Smart Wi-Fi access point in a single device

The Ruckus MediaFlex 7200 series is the first 802.11n (2.4GHz) customer premise equipment (CPE) specifically designed and optimized for broadband operators building large-scale wireless broadband access networks.

Deployed indoors or outdoors, the Ruckus MediaFlex 7200 series Smart Wi-Fi gateway compliments the overall network build out of wireless broadband access networks by maximizing coverage around the subscribers' home and office and extending Wi-Fi coverage to hard-to-reach indoor locations.

With it, operators can deliver reliable, indoor/outdoor, alwayson, broadband services at a fraction of the cost and complexity of conventional alternatives.

Full specifications (PDF)
Wireless Specifications
Broadband Transmission Technology:
Ethernet
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
No
ISM Maximum Frequency:
2.40 GHz
Antenna Type:
High Gain Antenna
Antenna Connector:
RP-SMA Connector
Total Wireless Transmission Speed:
18.75 MB/s
Wireless Security:
  • WEP
  • WPA
  • WPA2
  • IEEE 802.1x
Features:
MIMO Technology
Interfaces/Ports
Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
VGA:
No
Serial:
No
USB:
No
Powerline:
No
PoE (RJ-45) Port:
Yes
Management Port:
No
Network & Communication
Ethernet Technology:
Fast Ethernet
Management & Protocols
Management:
  • Web Based Management
  • DHCP
Security Features:
  • NAT
  • AES
  • TKIP
  • EAP-TTLS
Power Description
Input Voltage:
12 V DC
Power Source:
AC Adapter
Physical Characteristics
Form Factor:
Wall Mountable
Height:
4.5"
Width:
1.7"
Depth:
5.4"
Weight (Approximate):
8.11 oz
Miscellaneous
Package Contents:
  • MediaFlex 7211 Wireless Router
  • External Antenna
  • Power Adapter
  • Ethernet Cable
  • Clip-on Door
Certifications & Standards:
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3af
  • IEEE 802.1x
Item Numbers
UNSPSC: 43222609
