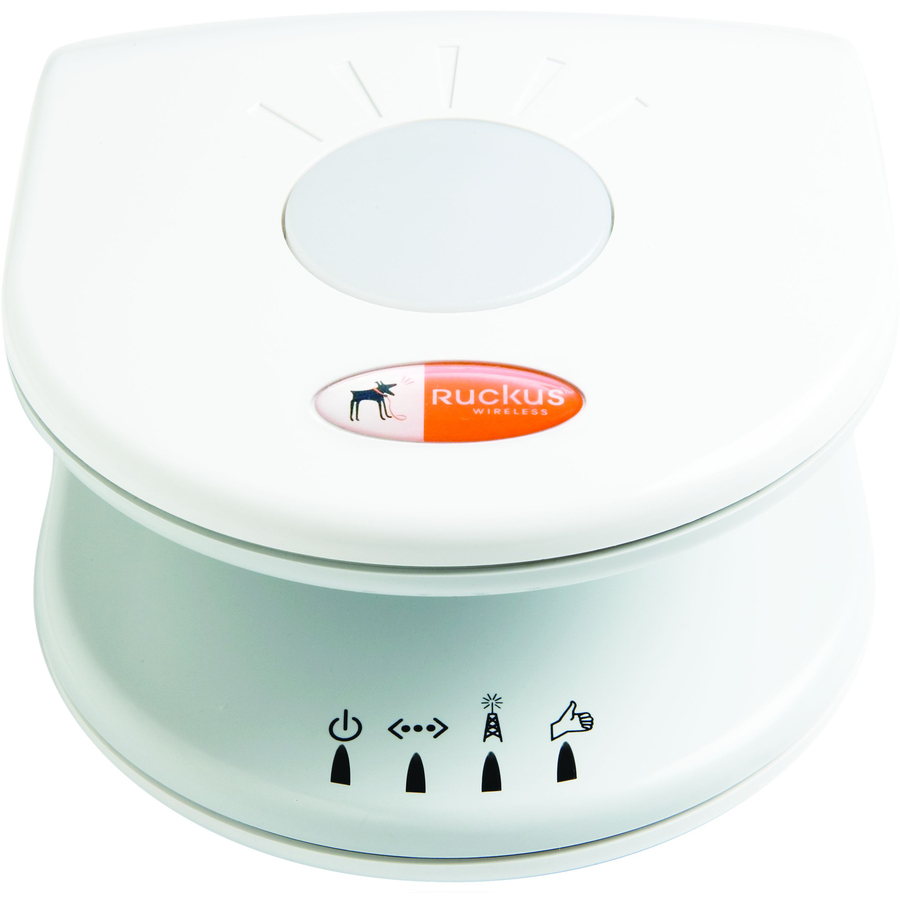

Ruckus 901-7111-US00 Access Point

The Ruckus 901-7111-US00 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Ruckus MediaFlex 7000 Series - Ruckus Wireless MediaFlex 7111 IEEE 802.11n 300 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Ethernet, Fast Ethernet - Desktop
  • Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
  • With IEEE 802.11n network technology and data transfer rate of up to 300 Mbit/s, enjoy superior HD media playback and lag-free gaming
  • Link your Wi-Fi traffic to your wired network with Fast Ethernet port
Read More

Need a different version? See all Ruckus MediaFlex 7000 Series Access Points

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Ruckus 901-7111-US00 Access Point
Ruckus 901-7111-US00 Access Point Ruckus 901-7111-US00 Access Point Ruckus 901-7111-US00 Access Point Ruckus 901-7111-US00 Access Point
Ruckus 901-7111-US00 Access Point
Ruckus 901-7111-US00 Access Point
Ruckus 901-7111-US00 Access Point
Ruckus 901-7111-US00 Access Point
Full specifications (PDF)
Ruckus MediaFlex 7000 Series Access Point Model Overview
The Ruckus Wireless MediaFlex 7000 Series is the first carrier-class 802.11n multimedia system designed to reliably distribute High Definition (HD) IP-based video (IPTV) over Wi-Fi to every corner of the home. The Ruckus MediaFlex 7000 Series is composed of the Ruckus MediaFlex 7811 access point and the Ruckus MediaFlex 7111 adapter. Installed in minutes, the Ruckus MediaFlex 7000 Series helps carriers eliminate costly and cumbersome cabling within subscriber homes, speed installation times, and enable robust remote management. The MediaFlex 802.11n access point combines innovative, patentpending smart antenna and traffic management technologies to break down the barriers that have prevented a single Wi-Fi network for supporting voice, video and data in the home. The MediaFlex 7811 gives broadband operators a single system that reliably extends multimedia services throughout the home over standard 802.11n (5 GHz) Wi-Fi while delivering unprecedented visibility into and control over subscriber Wi-Fi environments.
Ruckus 901-7111-US00 Access Point Overview

The First Managed Smart Wi-Fi 802.11n System for Picture-Perfect Distribution of HD IPTV

The Ruckus Wireless MediaFlex 7000 series is the first carrier-class 802.11n multimedia system designed to reliably distribute High Definition (HD) IP-based video (IPTV) over Wi-Fi to every corner of the home. The Ruckus MediaFlex 7000 series is composed of the Ruckus MediaFlex 7811 access point and the Ruckus MediaFlex 7111 adapter.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
UNII Band:
Yes
UNII Maximum Frequency:
5 GHz
Antenna Type:
Omnidirectional Antenna
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • WPA
  • WPA2
  • AES
Features:
  • MIMO Technology
  • Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
Number of Network (RJ-45) Ports:
1
Management & Protocols
Management:
  • HTTP/HTTPS
  • Web Based GUI
  • DHCP
  • CLI
  • Telnet
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
Desktop
Height:
3"
Width:
4.8"
Depth:
5.6"
Weight (Approximate):
7.05 oz
Miscellaneous
Certifications & Standards:
  • IEEE 802.11a
  • IEEE 802.11n
  • IEEE 802.3
  • IEEE 802.3u
  • FCC
  • IC
  • CE
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Ruckus 901-7111-US00 Access Point is also known as RUC-9017111US00
