Ruckus 901-7055-US01 Access Point

The Ruckus 901-7055-US01 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

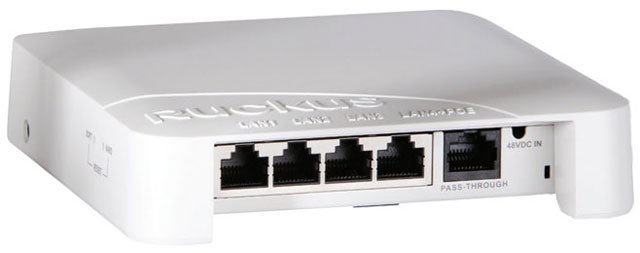

Ruckus ZoneFlex 7055 - Ruckus Wireless ZoneFlex 7055 IEEE 802.11n 600 Mbit/s Wireless Access Point - 6 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Wall Mountable
  • Build a reliable home or business network with this Wireless Access Point, that features IEEE 802.11n technology and speeds up to 600 Mbit/s
  • Up to 10x faster than standard Ethernet connectivity for your wired network
  • With PoE Port, transfer data and power from a single cable to places where a power outlet is not present
Read More
Discontinued Need Assistance?
Add to Quote
Ruckus ZoneFlex 7055 Access Point Model Overview
The ZoneFlex 7055 is the industry’s first dual-band dual-concurrent wall mounted wired switch and wireless wall switch designed for next generation wireless. The ZoneFlex 7055 features integrated 2.4GHz and 5GHZ concurrent 802.11n WLAN radios, five wired Ethernet ports, PoE ouput, and a passthrough port for devices such as digital phones that require native access to a PBX system. Designed with hotels and multi-dwelling units in mind, the ZoneFlex 7055 is easy to mount to an electrical junction box and has a sleek and low-profile form factor. It provides flexible deployment options with Ruckus SmartMesh Networking for areas without existing Ethernet infrastructure.
Ruckus 901-7055-US01 Access Point Overview
High Performance 2x2:2 Integrated Wired/Wireless Wall Switch
The Ruckus ZoneFlex 7055 is the industry's frst dual band concurrent wired and wireless wall switch that integrates high-speed 802.11n Wi-Fi into an ultra-sleek, low-profle design that can be quickly and discretely installed in a standard wall junction box.

Ideal for offering converged services within hotel guest rooms and university dormitories, the ZoneFlex 7055 provides an easy way to offer multiple connections into a single room without multiple cables.
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.73 GHz
Antenna Gain:
  • 2 dBi
  • 3 dBi
Wireless Transmission Speed:
600 Mbit/s
Wireless Security:
  • WEP
  • WPA-PSK
  • WPA-TKIP
  • WPA2
  • AES
  • 802.11i
  • 802.1X
  • RADIUS
  • LDAP
  • L2TP
  • PPPoE
Features:
Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
6
PoE (RJ-45) Port:
Yes
I/O Expansions
Expansion Slots:
No
Management & Protocols
Management:
  • Managed by ZoneDirector
  • Web User Interface (HTTP/S)
  • CLI (Telnet/SSH)
  • SNMP v1, 2, 3
  • TR-069 vis FlexMaster
  • VLAN
Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
Wall Mountable
Height:
5.4"
Width:
5.4"
Depth:
1.2"
Weight (Approximate):
10.30 oz
Miscellaneous
Certifications & Standards:
IEEE Stndards:
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.1X
  • 802.11i
  • 802.11e
  • 802.1Q
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.3at
  • 802.3af
Item Numbers
GTIN: 0700443579926
UPC: 700443579926
EAN: 0700443579926
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Ruckus 901-7055-US01 Access Point is also known as RUC-9017055US01
