Ruckus 901-2942-WW00 Access Point

Ruckus 901-7321-WW00 Access Point A newer version of this item is available.
It is replaced by the Ruckus 901-7321-WW00 Access Point.
Ruckus ZoneFlex 2942 - Ruckus Wireless ZoneFlex 2942 IEEE 802.11b/g 54 Mbit/s Wireless Access Point - 2 x Network (RJ-45) - Ethernet, Fast Ethernet - PoE Ports - Wall Mountable, Ceiling Mountable
  • Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
  • With IEEE 802.11b/g standard and up to 54 Mbit/s data transfer rates this Wireless Access Point, enables efficient network performance
  • Ethernet port provides Ethernet connections for fast data transfer and large file transfers between your access point and wired network
  • With PoE Port, transfer data and power from a single cable to places where a power outlet is not present
Read More
Discontinued See Replacement
Add to Quote

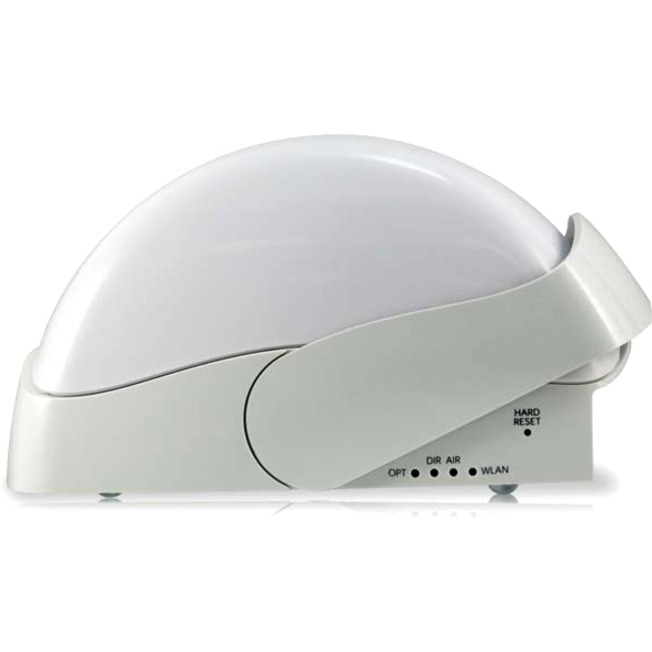

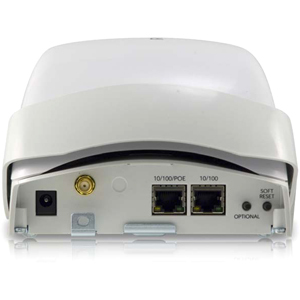

Ruckus ZoneFlex 2942 Access Point Model Overview
The Ruckus ZoneFlex 2942 is the most affordable 802.11g Wi-Fi access point (AP) that delivers advanced features and functionality not available in any low-end consumer AP or high-end WLAN system. Each ZoneFlex 2942 integrates Ruckus-patented BeamFlex smart antenna technology that enables consistent, high performance, extended coverage and multimedia support as it automatically tunes itself to adapt to constant changes in the environment. This means fewer APs, more satisfied users, and a cost-effective system that can be installed anywhere by wireless novices. Deployed individually, or as a system centrally managed by the Ruckus ZoneDirector Smart WLAN family of controllers, the Ruckus ZoneFlex 2942 can be deployed with or without Ethernet cabling. Support for Ruckus Smart Mesh Networking streamlines costly and complex deployment headaches, eliminating the need to run Ethernet cabling to every access point. This minimizes operational overhead, making the ZoneFlex 2942 ideal for hotels, schools, airports and enterprises everywhere.
Ruckus 901-2942-WW00 Access Point Overview

The Best Performing 802.11g Smart Wi-Fi Access Point with Adaptive Antenna Technology

The Ruckus ZoneFlex 2942 is the most affordable 802.11g Wi-Fi access point (AP) that delivers advanced features and functionality not available in any low-end consumer AP or high-end WLAN system.

Each ZoneFlex 2942 integrates Ruckus-patented BeamFlex smart antenna technology that enables consistent, high performance, extended coverage and multimedia support as it automatically tunes itself to adapt to constant changes in the environment. This means fewer APs, more satisfied users, and a cost-effective system that can be installed anywhere by wireless novices.

Technical Information
Wireless LAN Standard:
IEEE 802.11b/g
ISM Band:
Yes
UNII Band:
No
ISM Maximum Frequency:
2.40 GHz
Antenna Gain:
9 dBi
Antenna Type:
Omnidirectional Antenna
Antenna Connector:
RP-SMA Connector
Wireless Transmission Speed:
54 Mbit/s
Wireless Security:
  • WEP
  • WPA-PSK
  • WPA
  • WPA2
  • TKIP
  • AES
  • IEEE 802.1x
  • IEEE 802.11i
  • RADIUS
  • ActiveDirectory
  • SSH
Features:
Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
Number of Network (RJ-45) Ports:
2
Network (RJ-11):
No
PoE (RJ-45) Port:
Yes
VGA:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No
Management & Protocols
Management:
  • Web-Based Management
  • SNMP
  • VLAN
  • ZoneDirector
  • TR-069
  • FlexMaster
  • Telnet
  • CLI
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
4"
Width:
5.7"
Depth:
7.6"
Weight (Approximate):
1.50 lb
Miscellaneous
Certifications & Standards:
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3af
  • IEEE 802.11i
  • IEEE 802.1x
  • IEEE 802.1Q
  • EN 60601-1-2
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Item Numbers
UNSPSC: 43222631
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Ruckus 901-2942-WW00 Access Point is also known as RUC-9012942WW00
