rf IDEAS RDR-805W1BKB-P Access Control Reader
Full specifications (PDF)

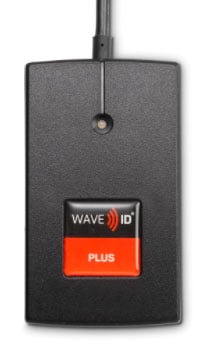

rf IDEAS WAVE ID® Plus Surface Mount Access Control Reader Model Overview
The rf IDEAS WAVE ID® Plus Surface Mount is a programmable dual-frequency card reader that combines proximity and contactless credential technologies in a versatile mounted design. It reads 125/132 kHz proximity credentials and 13.56 MHz contactless smart cards while accommodating up to four card configurations. Available with USB, USB Virtual COM, RS-232 and Ethernet interfaces, the reader supports Keystroke and rf IDEAS SDK operating modes for integration with a variety of systems. Its flexible mounting design is ideal for kiosks, point-of-sale systems, time and attendance, meeting registration and other authentication applications across enterprise, healthcare, education, government and industrial environments.
Key Features
Dual-frequency operation: Reads 125/132 kHz proximity credentials and 13.56 MHz contactless smart cards.
Four card configurations: Includes two preset and two user-definable configurations.
Flexible interfaces: Available with USB-A, USB-C, RS-232 Serial and Ethernet connectivity.
Multiple operating modes: Supports Keystroke and rf IDEAS SDK configurations.
Mobile credential support: Compatible with supported credentials through Apple Wallet, Google Wallet and Allegion HCE.
Automatic antenna tuning: Patented 13.56 MHz auto-tuning helps optimize power transfer and reduce interference.
Adjustable indicators: Includes a quad-state LED and user-selectable beeper volume.
Versatile installation: Designed for kiosks, hoteling and meeting-attendance applications.
Optional environmental protection: Can achieve an IP67 rating when installed with the optional KT-IP67 housing kit.
Easy integration: Plug-and-play operation supports integration with common operating systems, applications and third-party software.
Specifications
Product Series: WAVE ID® Plus Surface Mount
Reader Type: Dual-frequency proximity and contactless card reader
Operating Frequency: 125/132 kHz and 13.56 MHz
Interfaces: USB-A, RS-232 Serial and Ethernet
Operating Modes: Keystroke and rf IDEAS SDK
Dimensions: 4.5" L x 2.75" W x 0.62" H (114.3 x 69.8 x 15.6 mm)
Weight: 2.5 oz (71 g)
Housing Color: Black
Indicators: Quad-state LED and adjustable beeper
Power Supply: USB self-powered; select RS-232 and Ethernet models require an external power source
Power Consumption: 70 mA typical, 150 mA maximum
Operating Temperature: -22° to 150°F (-30° to 65°C)
Storage Temperature: -40° to 185°F (-40° to 85°C)
Operating Humidity: 5% to 95% relative humidity, non-condensing
Certifications: FCC, CE Mark, RCM, IC, RoHS and REACH
Compatible Operating Systems: Windows 10 and 11, macOS Monterey and later, Ubuntu Linux 20.04 and later, supported Chromium-based browsers, Android 14 and earlier, and Raspberry Pi
Optional Accessory: KT-IP67 IP67-rated housing kit
Frequently Asked Questions
What types of credentials does the rf IDEAS RDR-805W1BKB-P reader support?
The rf IDEAS WAVE ID® Plus Surface Mount is a dual-frequency reader that supports both 125/132 kHz proximity credentials and 13.56 MHz contactless smart cards. It can accommodate up to four card configurations, including two preset and two user-definable options, making it versatile for mixed credential environments. The reader is also compatible with mobile credentials through Apple Wallet, Google Wallet, and Allegion HCE for supported credentials.
What connectivity options are available for this access control reader?
We offer this reader with multiple interface options: USB-A, RS-232 Serial, and Ethernet connectivity. The USB models are self-powered, while select RS-232 and Ethernet models require an external power source. This flexibility allows integration with various systems including kiosks, point-of-sale systems, time and attendance platforms, and meeting registration applications.
Can the rf IDEAS RDR-805W1BKB-P be used in outdoor or harsh environments?
The base reader operates reliably across a wide temperature range of -22° to 150°F (-30° to 65°C) and maintains functionality in humidity levels up to 95% relative humidity (non-condensing). For enhanced environmental protection, an optional KT-IP67 housing kit is available that can achieve an IP67 rating when properly installed, making it suitable for more demanding outdoor or harsh environment deployments.
What operating systems and platforms are compatible with this reader?
The rf IDEAS RDR-805W1BKB-P supports a broad range of operating systems including Windows 10 and 11, macOS Monterey and later, Ubuntu Linux 20.04 and later, supported Chromium-based browsers, Android 14 and earlier, and Raspberry Pi. This cross-platform compatibility enables plug-and-play integration with common applications and third-party software across enterprise, healthcare, education, and government environments.
What operating modes does the WAVE ID® Plus Surface Mount support?
This reader supports both Keystroke and rf IDEAS SDK operating modes, providing flexibility for different integration approaches. The Keystroke mode enables straightforward keyboard emulation for basic applications, while the SDK mode allows developers to build custom solutions with deeper system integration. Both modes support the reader's dual-frequency capabilities and multiple card configuration options.
What are the physical dimensions and power requirements of this reader?
The rf IDEAS RDR-805W1BKB-P measures 4.5" L x 2.75" W x 0.62" H (114.3 x 69.8 x 15.6 mm) and weighs 2.5 oz (71 g), making it compact for surface-mount installation. Power consumption is 70 mA typical and 150 mA maximum; USB models are self-powered while select RS-232 and Ethernet variants require external power. Contact us today to discuss the right power configuration for your deployment.
